Honeywell Bendix/King AV8OR Handheld User’s Guide

D200803000008 Weather Function

Rev 5 Mar 2012 Page 2-95

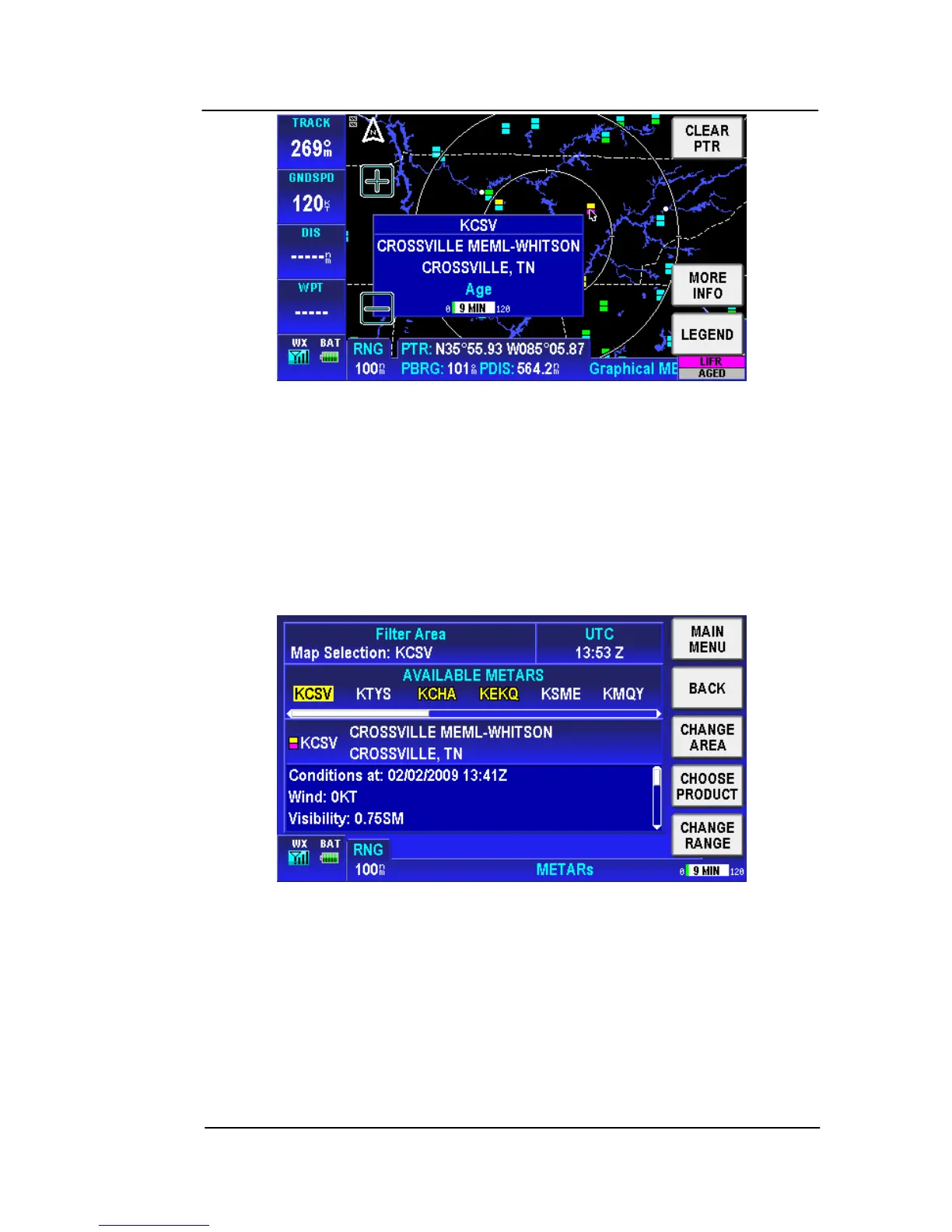

Figure 2-130: WX: – Graphical METARs Data Box

Tap on the MORE INFO soft key to display the text METARs page.

The details of the METAR are translated into easy to understand

text.

See the Text METARs (USA and Canada) section for more

information on Text META

RS.

Figure 2-131: WX: – Text METARs Page

GRAPHICAL PIREPS (USA ONLY)

Tap on the CHOOSE P

RODUCT soft ke

y on the Weather Main page

and select Graphical PIREPs from the SELECT WX PRODUCT box.

The graphical PIREPs page can also show overlays on the map if

configured. The available overlays are: Flight Plan, Traffic and Flight
