GPS Signal Strength
The GPS Signal Strength page is the default page for GPS Status.
As the receiver locks onto satellites, a bar appears for each satellite.
The bar shows the signal strength for each satellite. The bar
changes color from grey to blue when the satellite is locked.

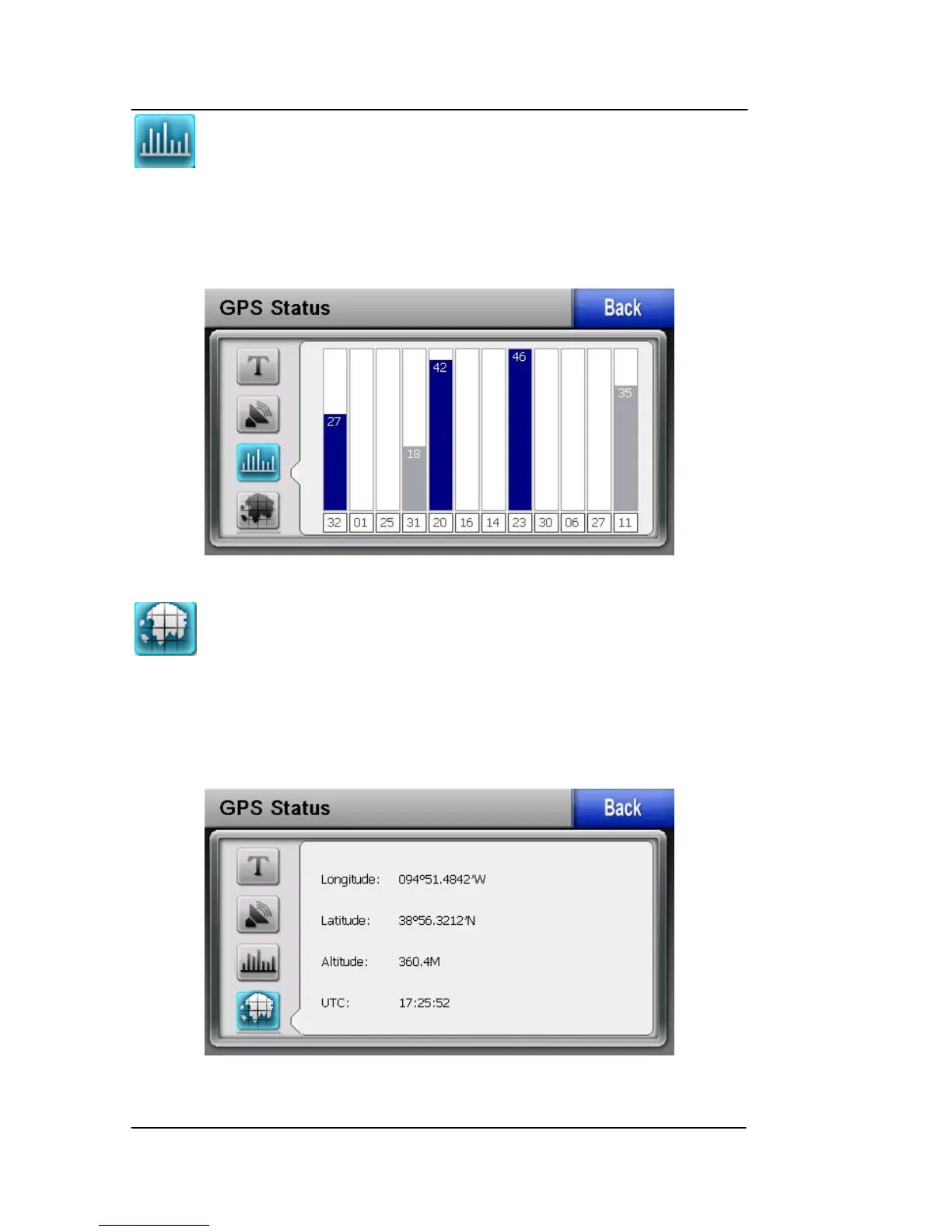

Figure 1-11: GPS Signal Strength Page – Locked and Unlocked
Current Position
Tappin
g this
soft key displays the longitude, latitude, altitude (ALT)
and UTC time information for the current position when the device
has acquired a GPS satellite lock.
Figure 1-12: GPS Information of Current position
