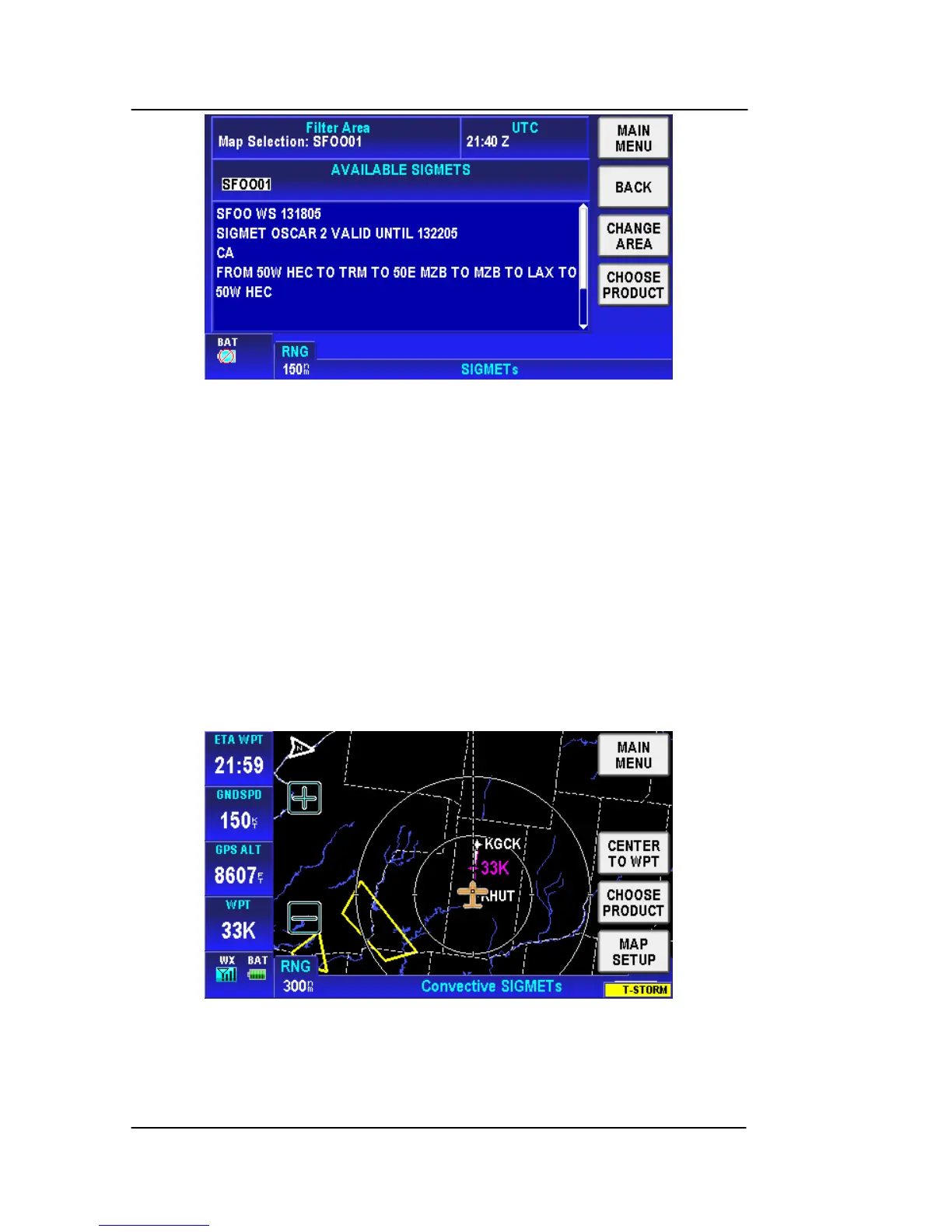

Figure 2-143: WX – Text SIGMETs
GRAPHICAL CONV-SIGMETS (USA ONLY)
Tap on the CHOOSE P
RODUCT soft ke
y on the Weather Main page
and select Graphical Conv-SIGMETs from the SELECT WX
PRODUCT box.
The graphical Convective SIGMET is derived from the location
description in the textual Convective SIGMET and displayed as a
yellow boundary box. The boundaries are displayed on a map
background to enhance situational awareness as shown in the figure
below.
Figure 2-144: WX – Graphical Conv SIGMETs
Tap on a graphical CONV SIGMET to show the CONV SIGMET
popup window. The CONV SIGMET popup window contains the
CONV SIGMET name, type and age as shown in the figure below.
