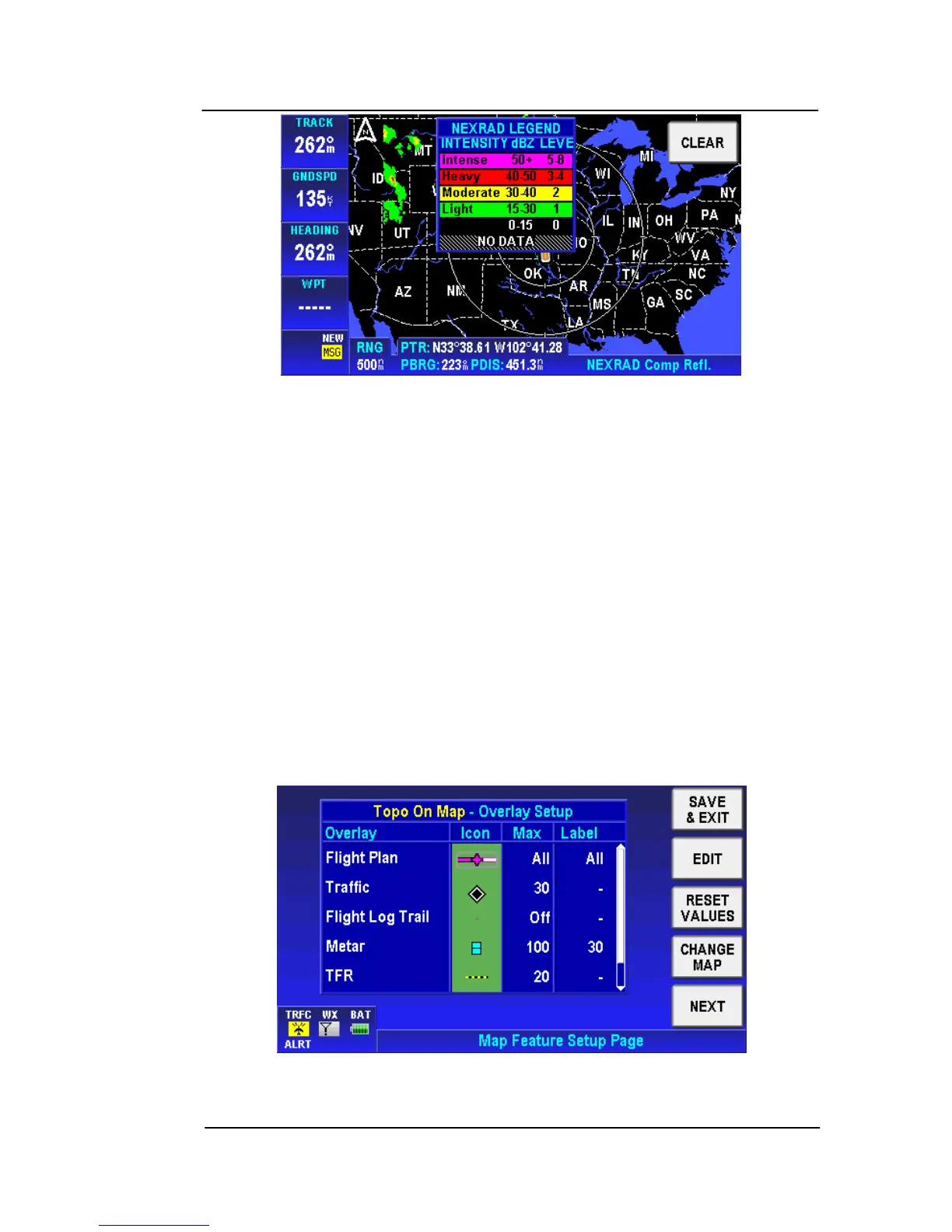

Figure 2-162: WX – Legend Info
XM Overlays
The following additional XM services can be overlaid on the primary
pages:
• Metar:
• Graphical TFR Overlay
• Lightning
• Cloud Tops
Storm Cells
Overlays are configured in the Overlay Setup page in the Map Setup
se
ction as
shown in the figure below.
Figure 2-163: Topo On Map – Overlay Setup
