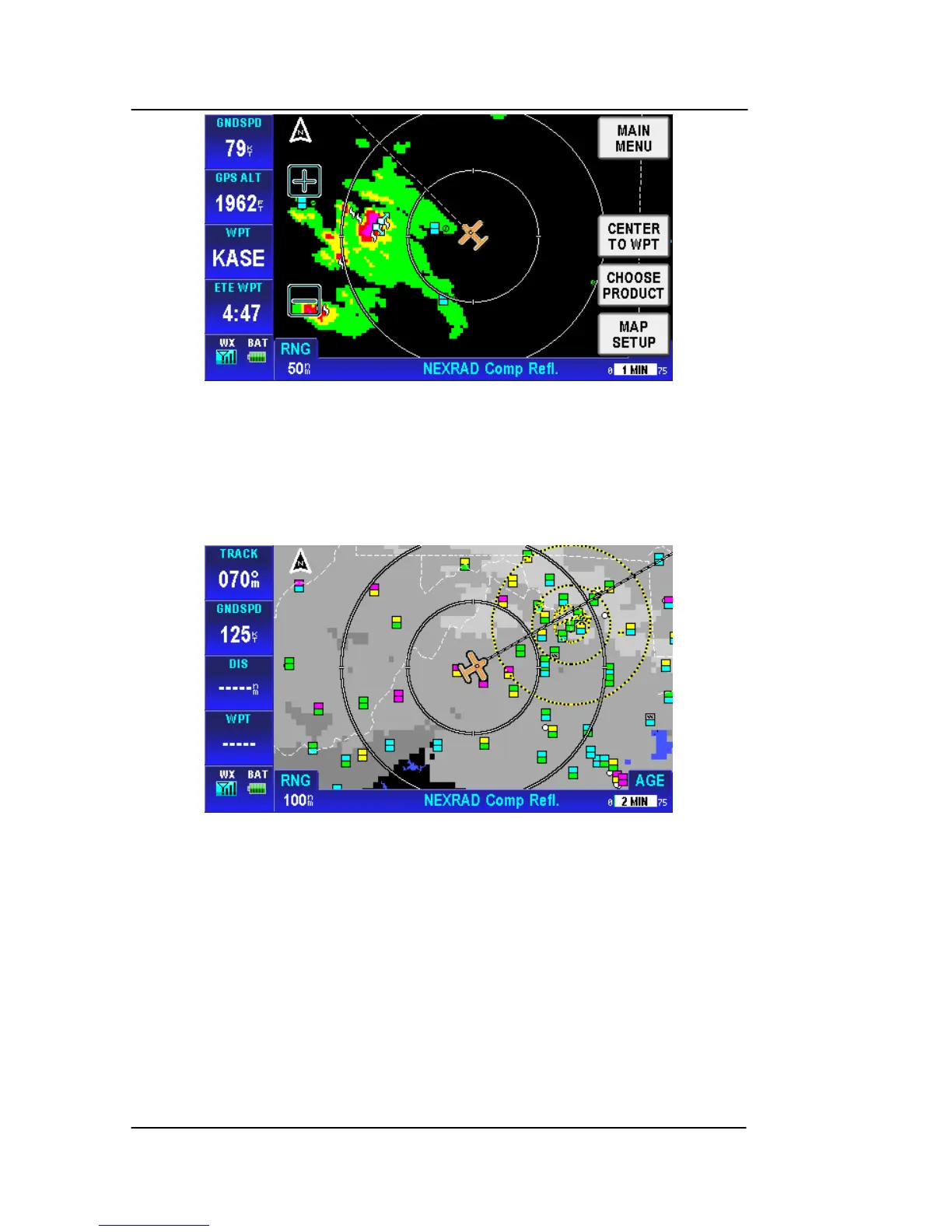

Figure 2-125: WX – NEXRAD & Storm Cells Overlay
The following image shows TFRs, Cloud Cover and METARS
overlaid on the map.
Figure 2-126: Graphical TFRs
TFR boundaries show as a yellow and black dashed line.
Tap on the TFR boundary to show the TFR popup window.
The TFR popup window contains the vertical height of the TFR and
age as shown in the figure below.
