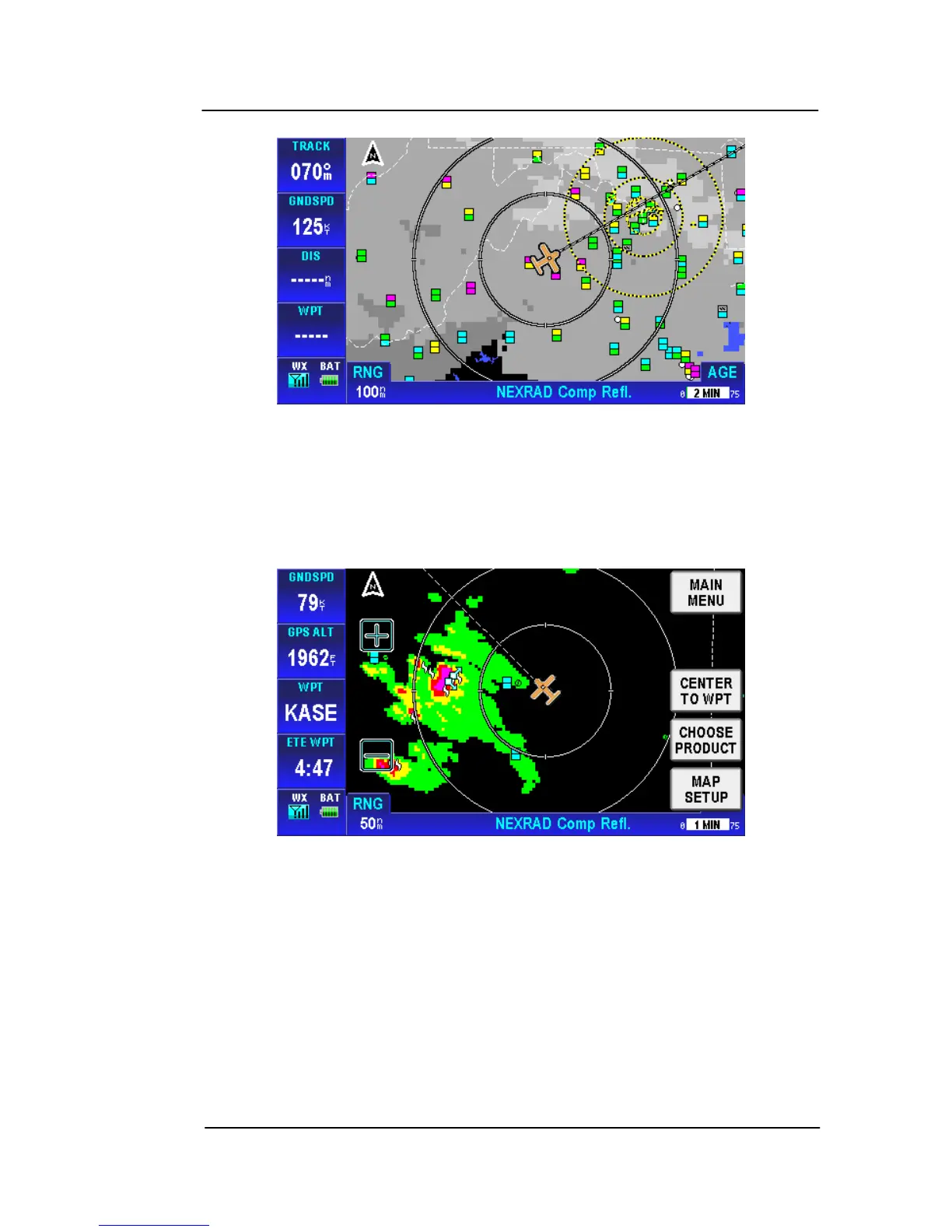

Figure 2-169: Cloud Top Overlay on Nexrad Page
STORM CELL OVERLAY
Storm Cell
can are o
nly displayed on the Nexrad Map as an overlay.
The figure below shows storm cells on the Nexrad Map.
Figure 2-170: WX –Storm Cells Overlay on Nexrad Page
