Honeywell Bendix/King AV8OR Handheld User’s Guide
D200803000008 Auxiliary Function
Rev 5 Mar 2012 Page 2-137
© Honeywell International Inc. Do not copy without express permission of Honeywell

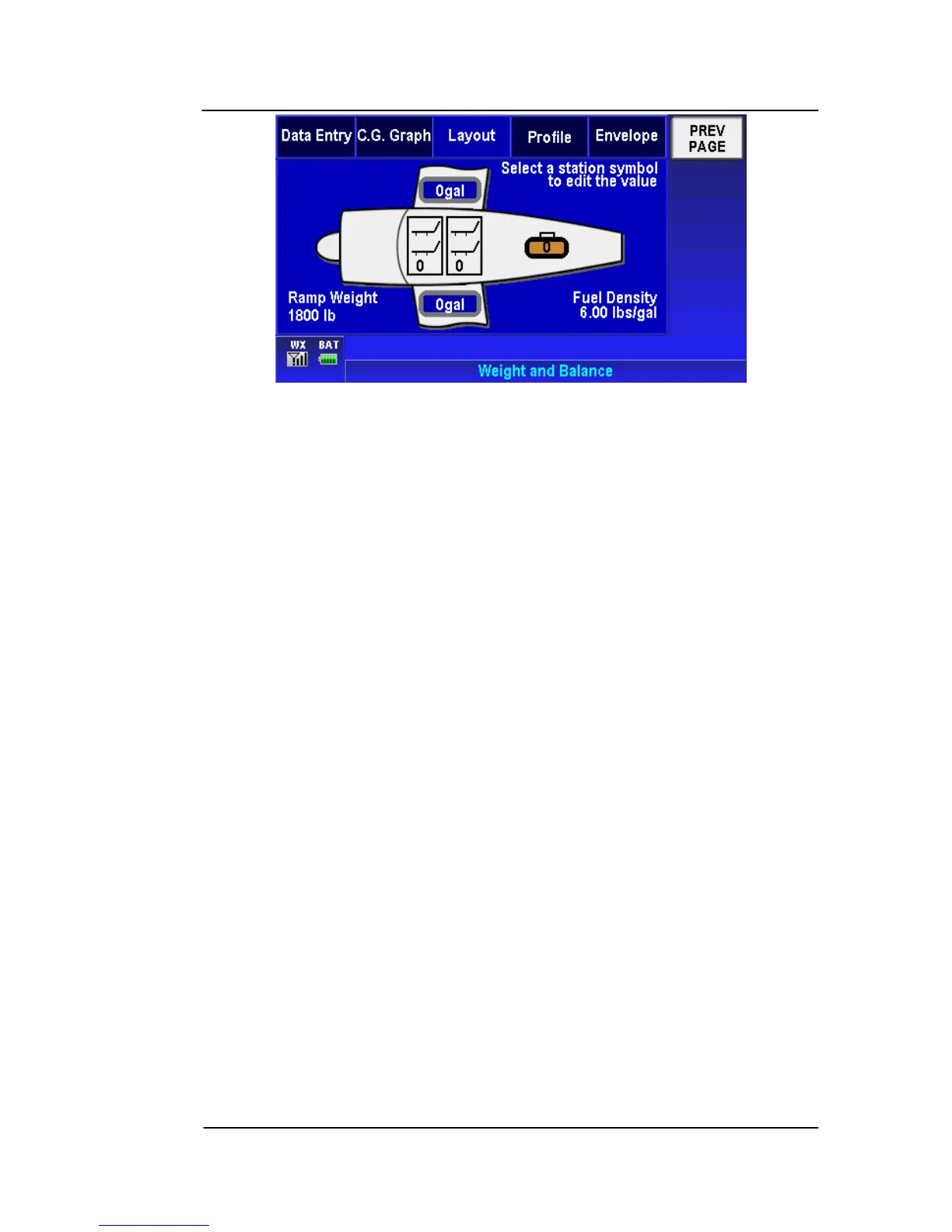

Figure 2-186: Weight and Balance Page
Tap the PREV PAGE soft key to return to the Messages Page.
The five tabs that follow show across the top of the top of the page:
• Data Entry
• C.G. Graph
• Layout
• Profile
• Envelope
DATA ENTRY - The Data Entry page is used to enter the aircraft’s
loading for the flight. The weight of passengers in each row,
baggage and amount of fuel in gallons is entered on this page. The
Arm locations for each line item can be entered once and are stored
along with the rest of the aircraft profile.
