BENDIXKing AV80R - Figure 2-150: Winds Aloft Legend; Figure 2-151: Select Flight Level

Honeywell Bendix/King AV8OR Handheld User’s Guide
Weather Function D200803000008
Page 2-106 Rev 5 Mar 2012
© Honeywell International Inc. Do not copy without express permission of Honeywell

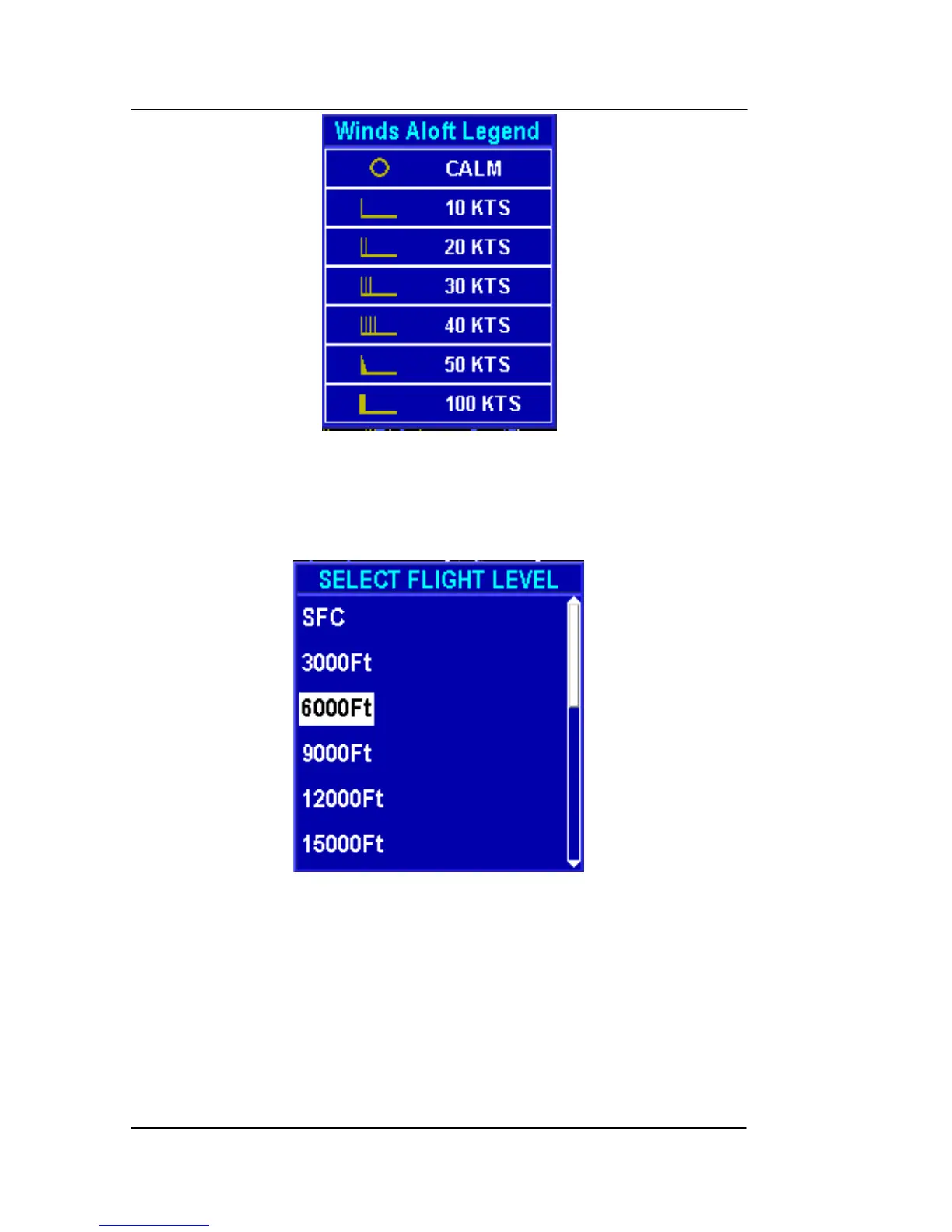

Figure 2-150: Winds Aloft Legend
Select Flight Level
Tap on the FLIGHT LEVE
L soft key to display the SELECT FLIGHT
LEVEL popup box.
Figure 2-151: Select Flight Level
Tap on a level to highlight it and tap the SELECT soft key to set the
selected flight level to display on the Graphical Winds Aloft page.
