with the appropriate color for the condition as shown in the legend.
The boundaries are displayed on a map background to enhance
situational awareness as shown in the figure below.

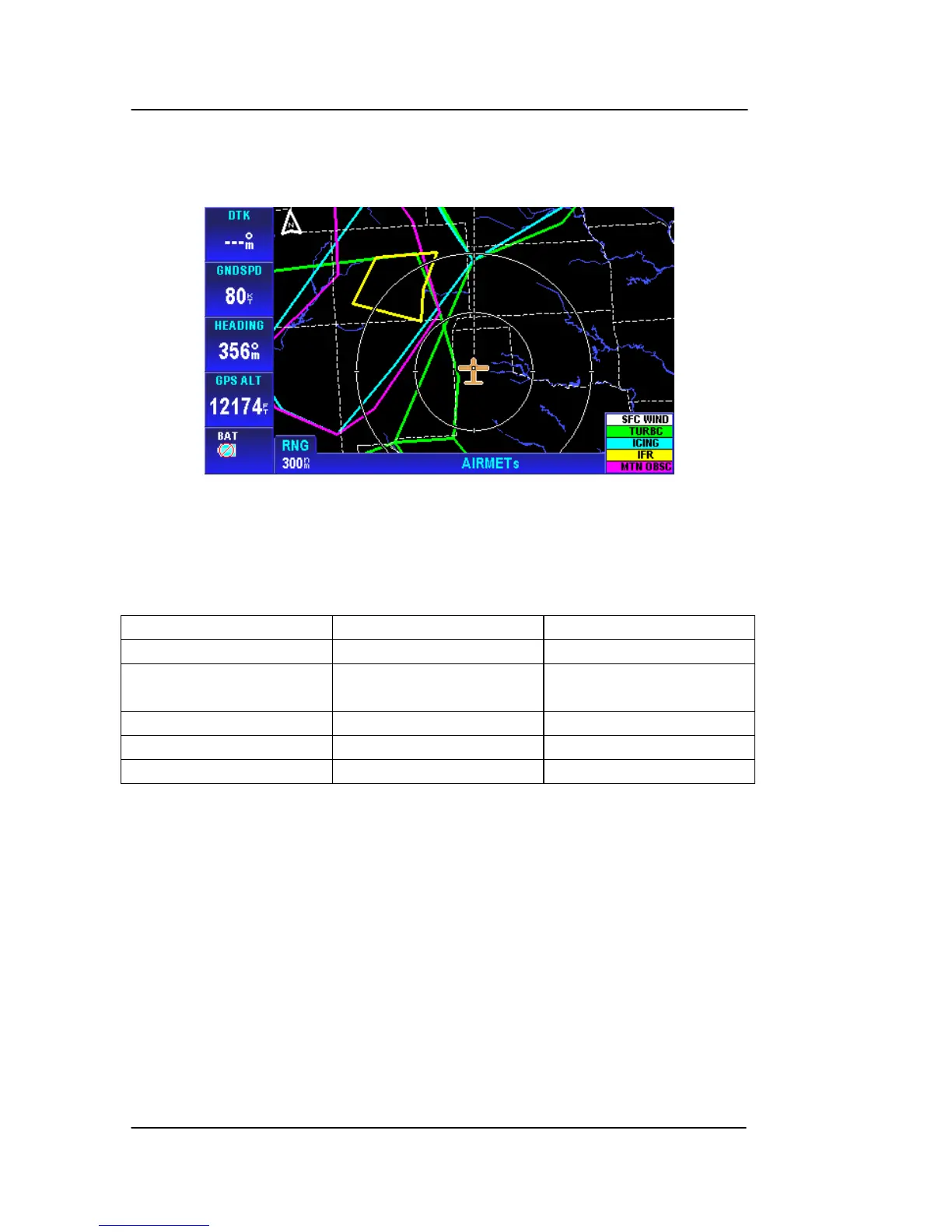

Figure 2-136: WX – AIRMETs
The graphical AIRMET types are shown in the following table
Table 2-6 Graphical AIRMET Types
AIRMET TYPE PRIORITY COLOR
IFR 1 (Highest) Yellow
Mountain
Obscuration
2 Magenta
Icing 3 Cyan
Turbulence 4 Green
Surface Winds 5 (Lowest) White
Tap on a graphical AIRMET to show the AIRMET popup window.
The AIRMET popup window contains the AIRMET name, type and
age as shown in the figure below.
