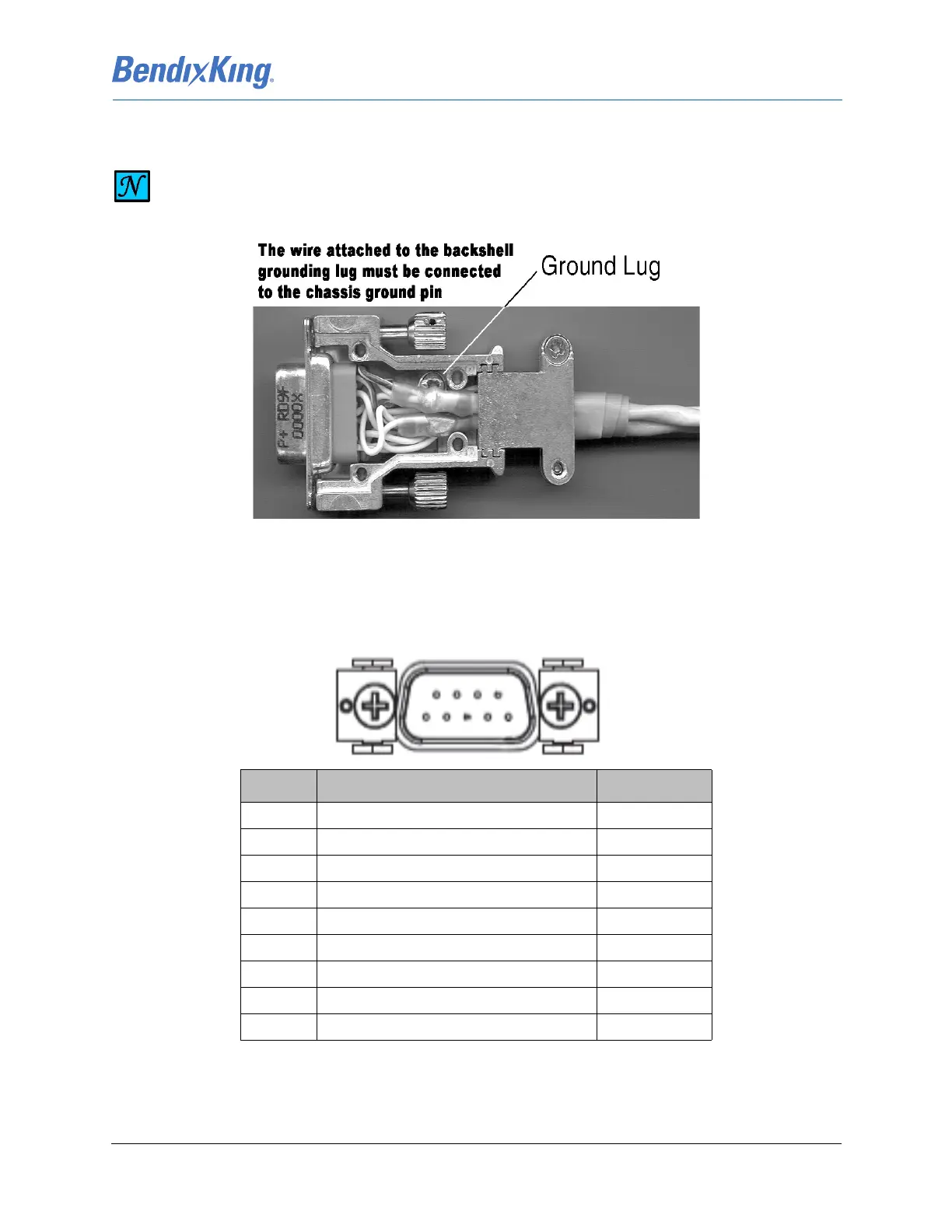

Figure 5-2 KMG 7010 Backshell
5.5 MD32
The electrical interface for the MD32 is provided via the 9 pin DB-9 connector Table 5-8.
Table 5-8 MD32 DB-9 Pin Descriptions (Viewed from LRU)
Pin Description I/O
1Ground GRN
2Not Used -
3Reserved -
4Reserved -
5Power -
6ARINC B Out
7ARINC A Out
8Not Used -
9Not Used -
NOTE
SHIELD WIRING MUST REMAIN IN BACKSHELL (CONNECT TO GROUND LUG INSIDE
BACKSHELL).
