89000109-002 xVue Touch Installation Manual
Rev 2 Page 6-36
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
(1) From the Installer Main Menu, Figure 6-7, press the Traffic button to display the Traffic sub-menu,
Figure 6-43.

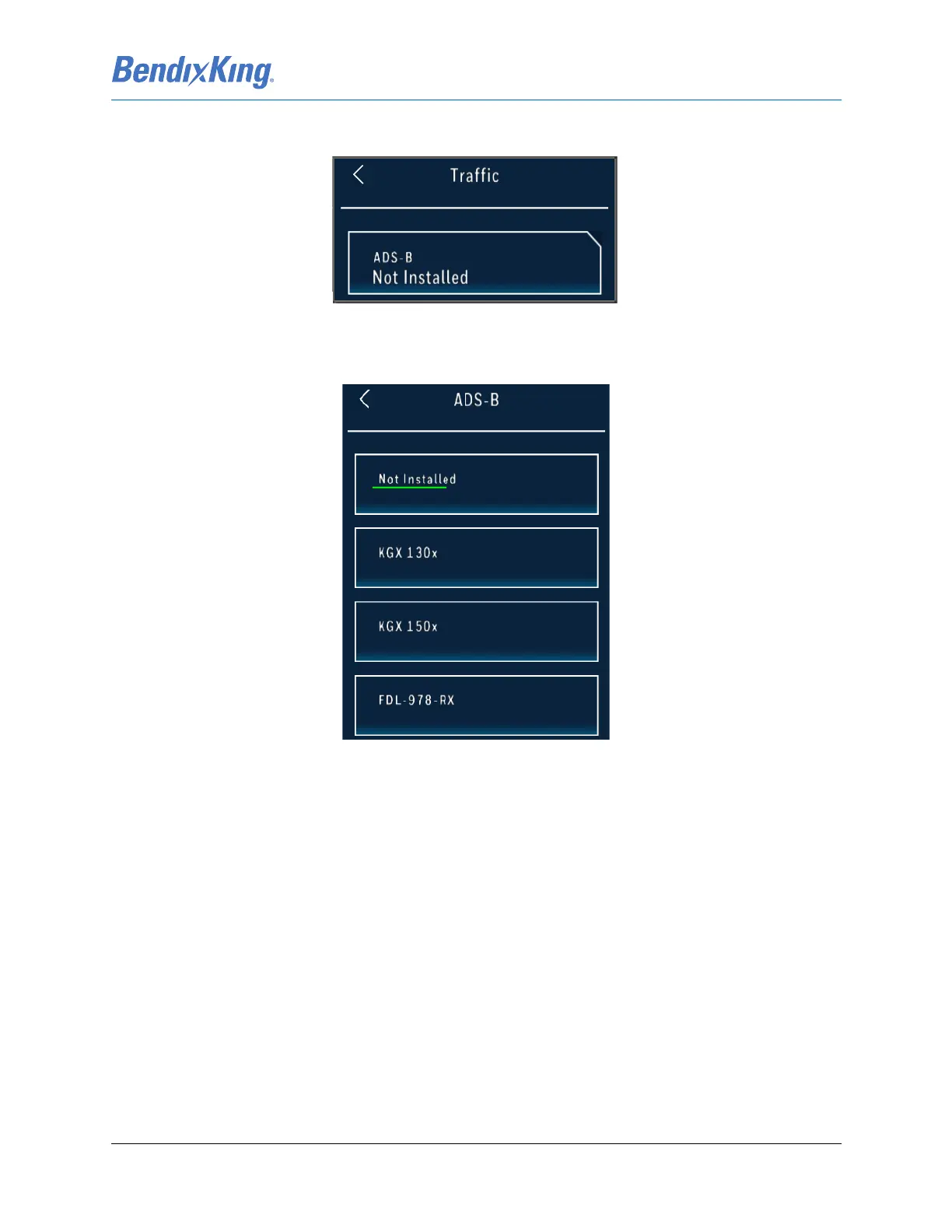

Figure 6-43 Traffic Sub-Menu
(2) From the Traffic sub-menu, Figure 6-44, press the ADS-B Traffic button.
Figure 6-44 ADS-B Sub-Menu
(3) Press the button for the installed ADS-B from the list of options on the ADS-B sub-menu, Figure 6-
44.
(4) Press the Back-Arrow button to return to the Traffic sub-menu
(5) Verify that the selected ADS-B is reflected correctly on the Traffic button, shown in Figure 6-43.
