BENDIXKing XVUE TOUCH - Magnetometer Installation Orientation; Figure 6-53 KMG 7010 Calibration Page

89000109-002 xVue Touch Installation Manual
Rev 2 Page 6-49
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
The KMG 7010 calibration page provides the interface for following procedures:
• Set the magnetometer installation orientation and enter the tilt angles
• Perform the magnetometer compensation
6.4.1 Magnetometer Installation Orientation

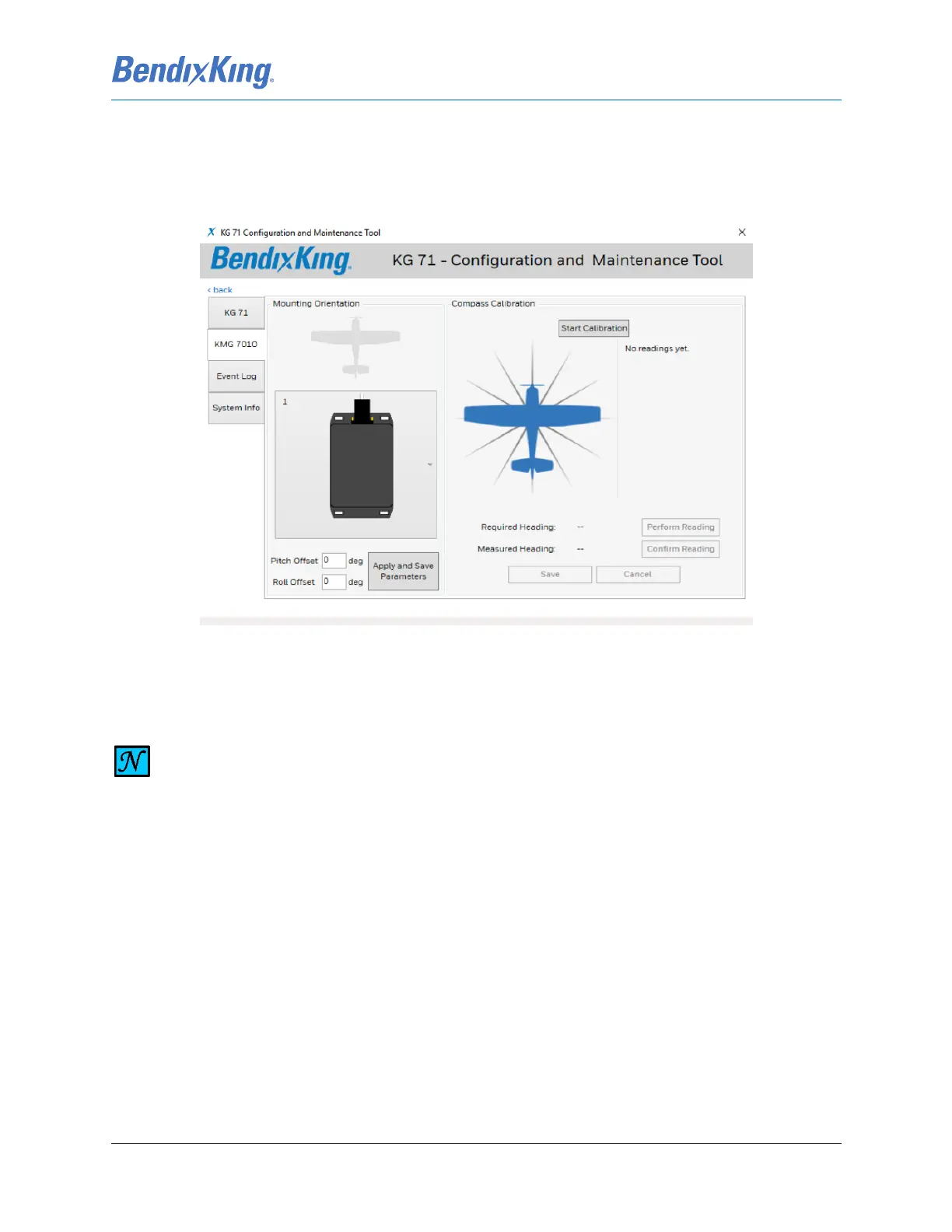

Figure 6-53 KMG 7010 Calibration Page
As shown in Figure 6-53, once the mounting orientation is selected, the technician must enter the
measured pitch offset and roll offset of the KMG 7010/MD32.
(1) Select mounting orientation, as shown in Figure 6-53.
(2) Using the inclinometer, measure the angles at the KMG 7010/MD32 for both the pitch and roll
axis.
NOTE
THE STANDARD CONVENTION FOR ROLL MEASUREMENT: RIGHT WING DOWN IS A
POSITIVE ROLL ANGLE. THE STANDARD CONVENTION FOR PITCH MEASUREMENT: NOSE
UP IS A POSITIVE PITCH ANGLE.
