BENDIXKing XVUE TOUCH - Figure A-11 KDC 100 EXP Outline and Mounting Drawing (Sheet 1

89000109-002 xVue Touch Installation Manual
Rev 2 Page A-11
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

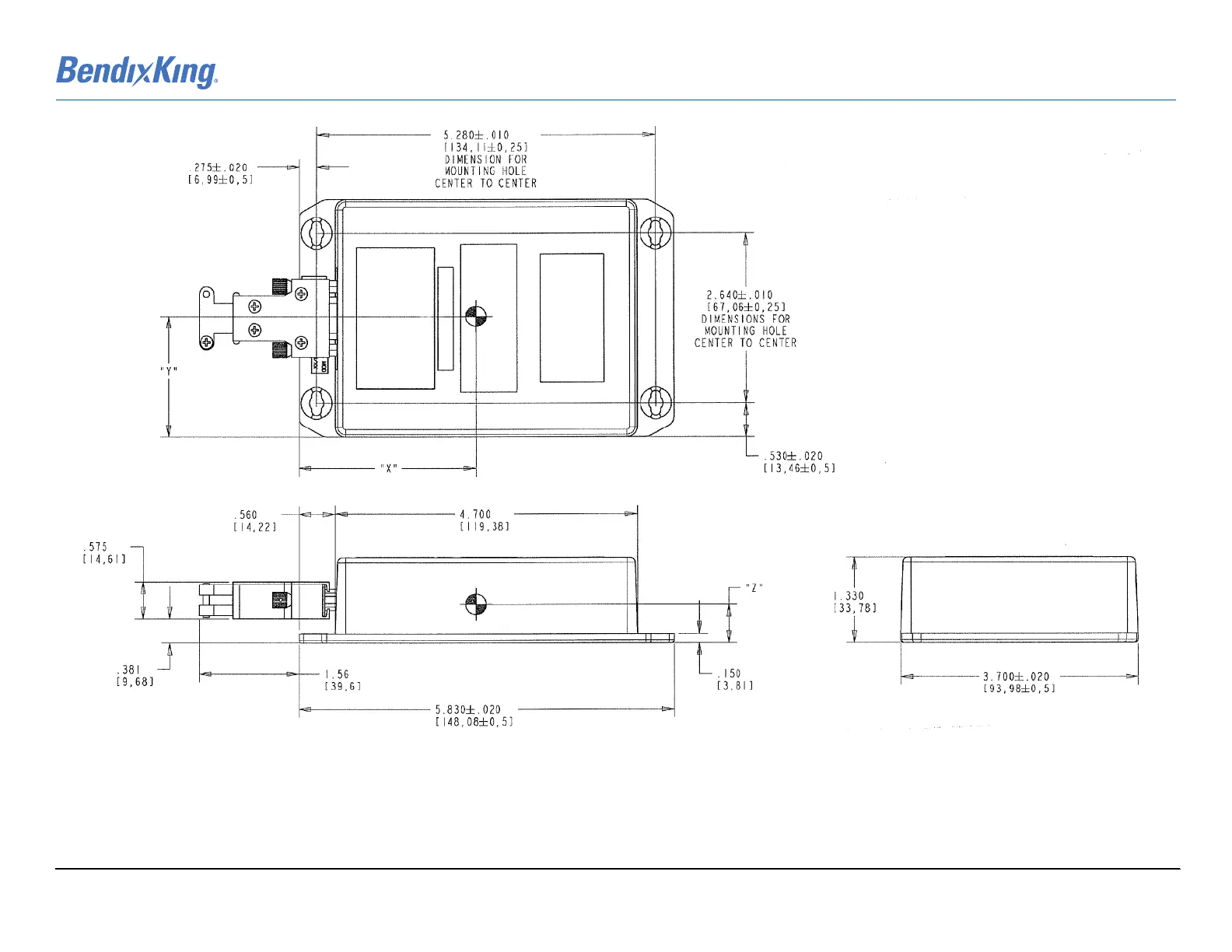

Figure A-11 KDC 100EXP Outline and Mounting Drawing (Sheet 1 of 2)
