89000109-002 xVue Touch Installation Manual
Rev 2 Page 6-28
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

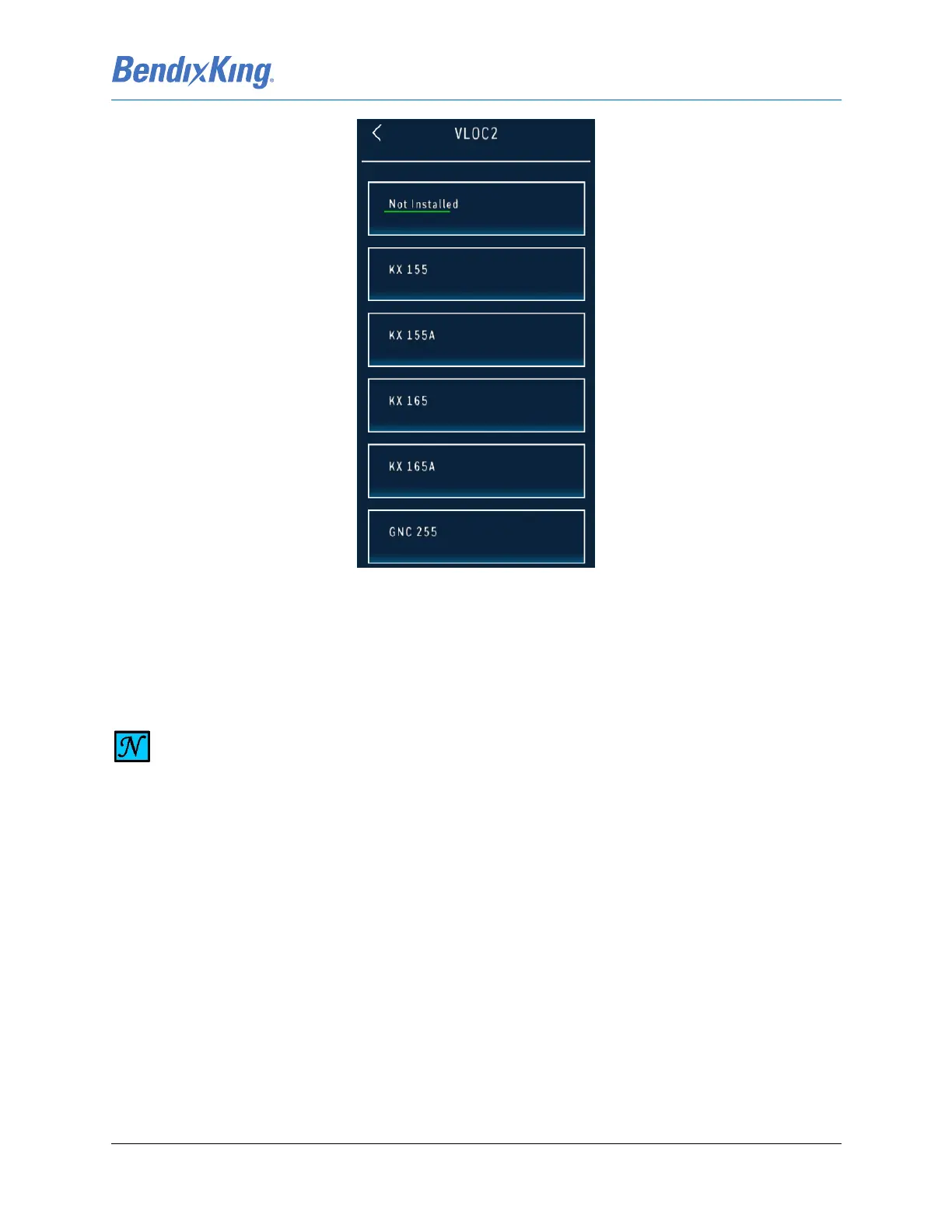

Figure 6-35 VLOC2 Sub-Menu
(6) Press the button for the installed LRU option from the VLOC2 sub-menu, Figure 6-35.
(7) Press the Back-Arrow button to return to the GPS/NAV sub-menu.
(8) Verify that the selected LRU is reflected correctly on the VLOC2 button, shown in Figure 6-31.
NOTE
VLOC 3 IS ONLY USED IF THE NAV RADIO HAS A COMPOSITE ANALOG SIGNAL.
