BENDIXKing XVUE TOUCH - Figure B-3 Weather and Traffic Interconnect Diagram

89000109-002 xVue Touch Installation Manual
Rev 2 Page B-3
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

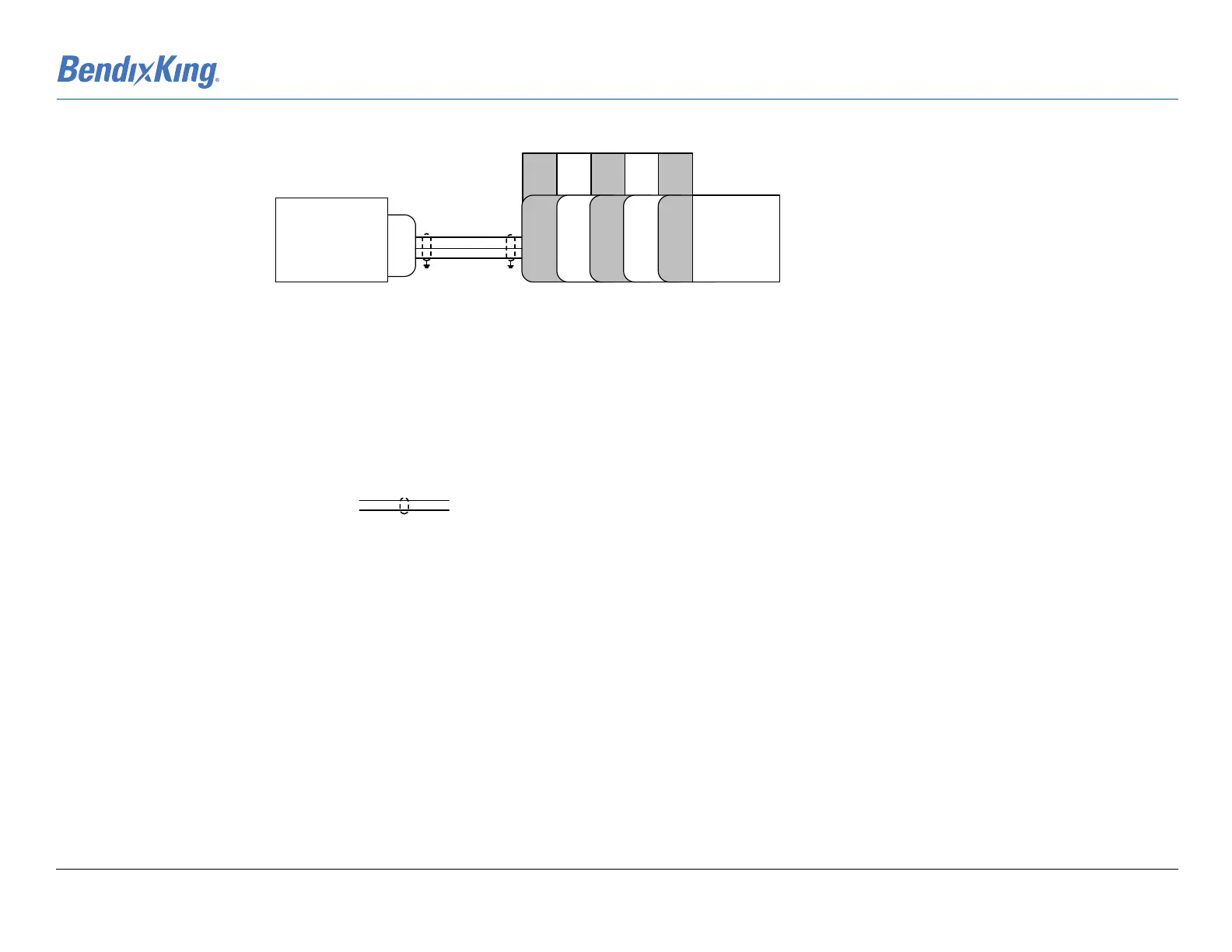

Figure B-3 Weather and Traffic Interconnect Diagram
FDL
987
RX
KGX
150T
KGX
150R
KGX
130T
J1
KGX
130R
KSD 100yW
J1 J1 J1 J1 J1
WEATHER AND
TRAFFIC
NOTES:
1 Single Conductor Wire
x All wires shall be 22 AWG unless otherwise noted power wires
x Wiring shall meet AS22759/16/XX/Y (Where XX is gauge and Y is color)
2 Twisted Shielded Pair/Triplet and Shielded Single Wire
x All wires shall conform to ANSI/NEMA WC 27500
x Do not remove any wiring between other active aircraft systems. Leave those systems installed as they are.
3 All shield grounds are to be grounded at the closest grounding point to their respective connectors. This includes connector grounding points.
For metallic backshells with grounding capability, ground shield directly to the backshell.
4 Drawing Symbols:
- Shielded Twisted Pair
8UAT_WX_RS232_RX
22
24
22
24
22
24
22
24
22
24
RS232 GND
RS232 TX
26UAT_WX_RS232_GND
9UAT_WX_RS232_TX 23 23 23 23 23 RS232 RX
