89000109-002 xVue Touch Installation Manual
Rev 2 Page 4-16
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
4.6.2 KMG 7010 – Post Installation Unit Verification
Accomplish the following steps in this manual before return to service:
(1) Perform Magnetometer Alignment (Section 6.4 KMG 7010/MD32 Calibration (Magnetometer)).
(2) Perform Ground Checks in Section 3.6.8.3.2 Ground Checks - After Magnetometer Installation and
Compass Swing.
(3) Perform autopilot heading course verification. Refer to the autopilot installation and/or
maintenance manual for the autopilot installed in the airplane and perform the “Set Installation
Offsets” test for Heading and Course Datum.
4.7 MD32 Installation
Install the MD32 Magnetometer per its installation manual (see Appendix D MD32 Installation Manual).
4.7.1 MD32 – Post Installation Unit Verification
Accomplish the following steps in this manual before return to service:
(1) Perform Magnetometer Alignment (Section 6.4 KMG 7010/MD32 Calibration (Magnetometer)).
(2) Perform Ground Checks in Section 3.6.8.3.2 Ground Checks - After Magnetometer Installation and
Compass Swing.
(3) Perform autopilot heading course verification. Refer to the autopilot installation and/or
maintenance manual for the autopilot installed in the airplane and perform the “Set Installation
Offsets” test for Heading and Course Datum.
4.8 KDC 100EXP Installation

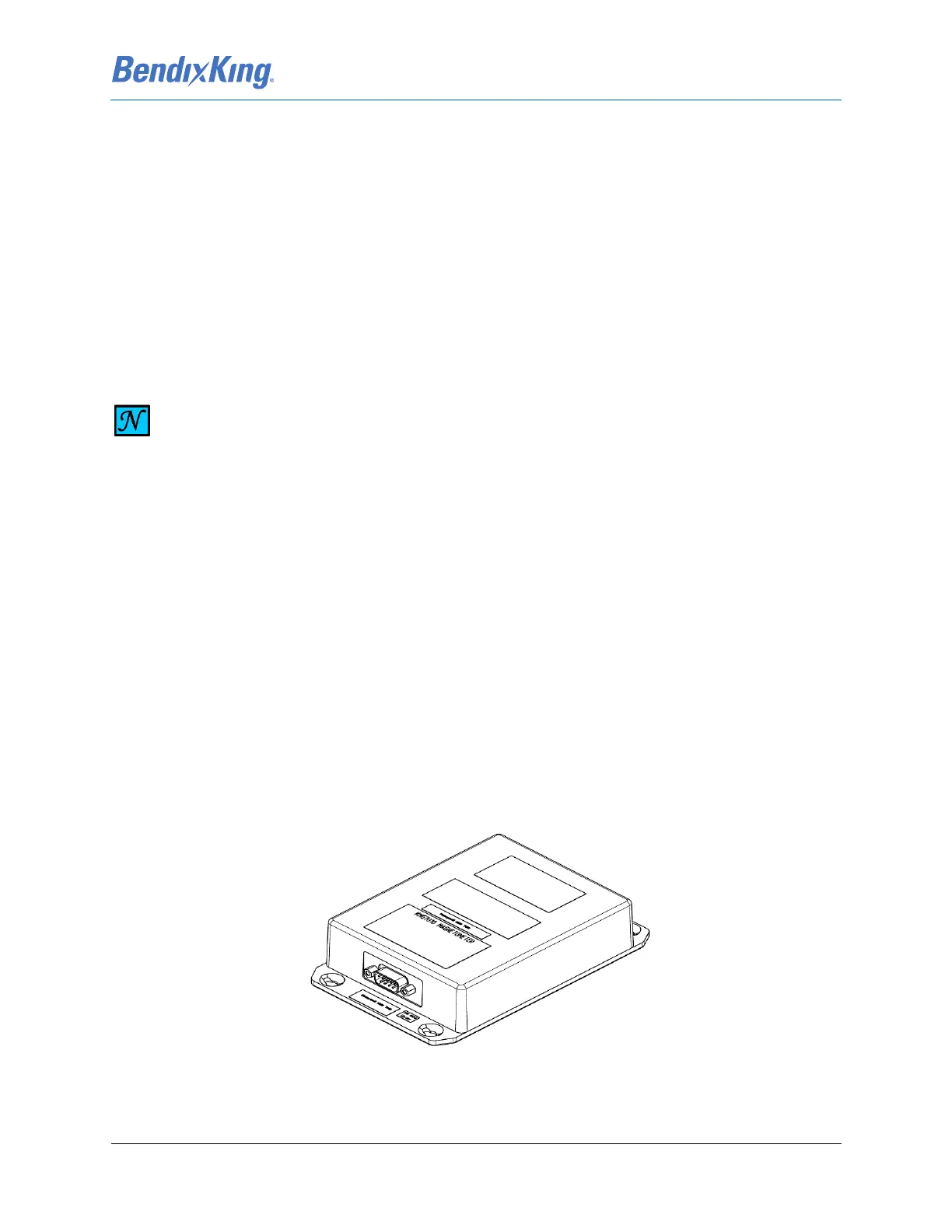

The KDC 100EXP data converter (Figure 4-18) supports variability related to its orientation.
Figure 4-18 KDC 100EXP Connector
NOTE
THE MD32 MAGNETOMETER MUST BE INSTALLED IN AN AREA THAT IS FREE OF
MAGNETIC DISTURBANCES FROM EITHER FERROUS MATERIALS OR LOCALLY GENERATED
MAGNETIC FIELDS.
