7.5.1.2 Wi-Fi Database Loading
7.5.1.2.1 Wingman Services Databases
(1) Download Wingman Services’ Databases to an external Wi-Fi enabled device.
(a) On the external device, check that Wi-Fi is turned on and open an Internet browser.
(b) Go to Wingman Services website: https://wingmanservices.bendixking.com
and sign into
your account
(c) Select the applicable aeronautical and terrain database file(s) for the specific KSD 100EXP
serial number.
(d) Download the database file(s) (a .ZIP file).
(2) Power on the KSD 100EXP.
(3) Press Enter on the Database Acknowledge Screen, refer to Figure 6-3.
(4) On the KSD 100EXP screen, Figure 7-1, press the Menu button, Figure 7-2, located at the top right
of the screen.
(5) From the Main Menu, Figure 7-6, press the System Tools button.
(6) From the System Tools Menu, Figure 7-13, press the Database Loading Tool button, Figure 7-14.
(7) From the Database Loading Menu, press the WiFi button, Figure 7-15.
(8) The Wi-Fi Connection Enabled window is displayed, Figure 7-21.

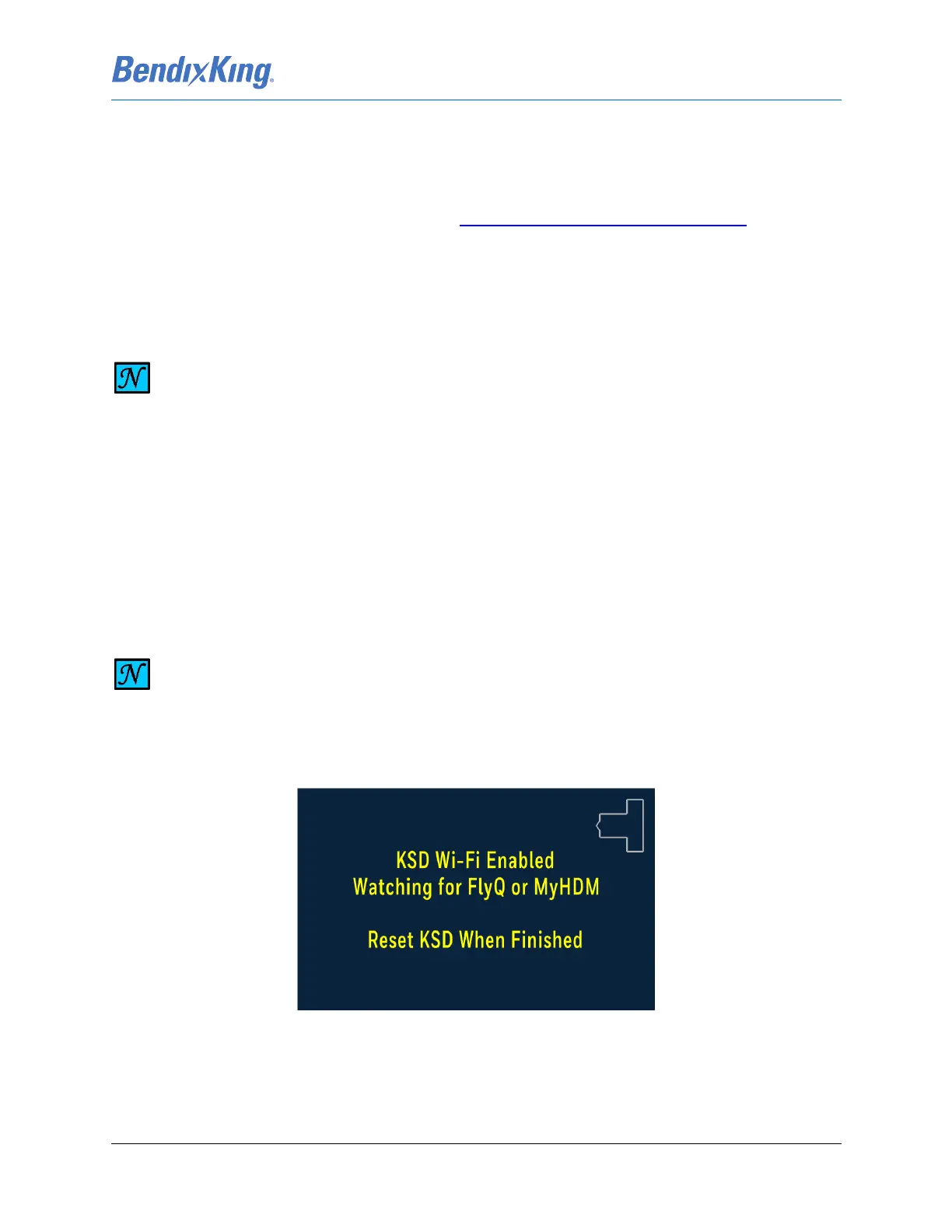

Figure 7-21 KSD 100 Wi-Fi Connection Enabled
(9) On the external device connect to the xVue Touch Wi-Fi. The Wi-Fi name is “KSD_AP”, followed
by the serial number of the unit (for example, “KSD_AP89000020”).
NOTE
THE FIRST 4 DIGITS IN THE NAME OF THE FILE INDICATE THE CYCLE (REFER TO PAGE 7-
15).
NOTE
THE DATABASE LOADING TOOL BUTTON IS GRAYED OUT (NOT AVAILABLE) WHEN
AIRPLANE IS NOT ON THE GROUND.
