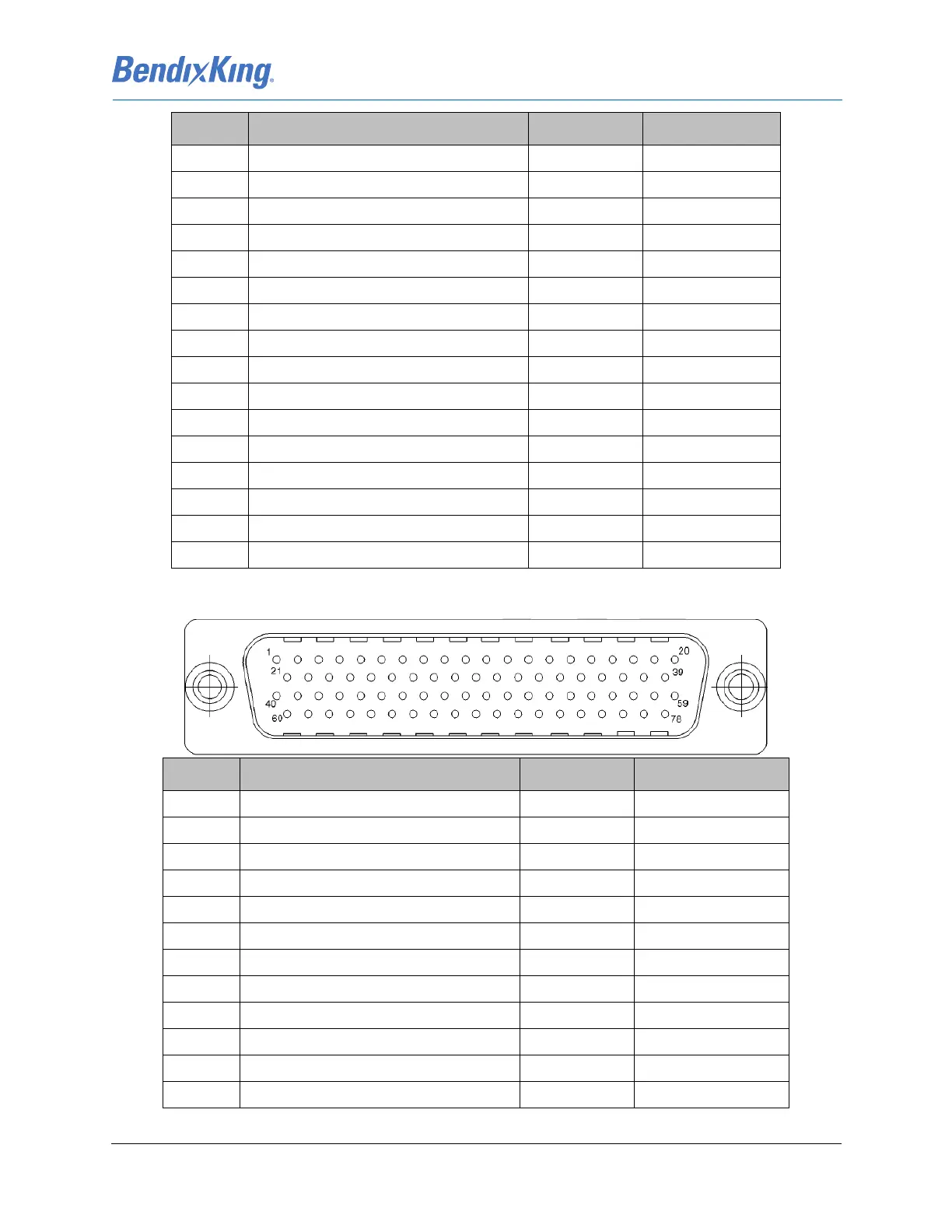

BENDIXKing XVUE TOUCH - Table 5-2 KSD 100 EXP J2 Pin Descriptions (Viewed from LRU)

89000109-002 xVue Touch Installation Manual
Rev 2 Page 5-3
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
Table 5-2 KSD 100EXP J2 Pin Descriptions (Viewed from LRU)
63 GPS_2_RS232_IN In Included
64 KA_52-57_PWR_RTN GND Reserved
65 GPS_1_RS232_IN In Included
66 KSD100_DEMO_MODE_DIGO In Reserved
67 AFCS_AP_MODE_EN_DIGO In Reserved
68 AFCS_ALT_ALERT_DIGO In Reserved
69 NAV1_2_ROLL_STR_OUT Out Reserved
70 GS_FLAG_+ Out Included
71 GS_+_UP Out Included
72 NAV_FLAG_+ Out Included
73 NAV_DEV_+_RT Out Included
74 AFCS_HDG_DATUM_OUT Out Included
75 TRANSPONDER_A429_RX_B In Reserved
76 TRANSPONDER_A429_RX_A In Reserved
77 ADAHRS2_A429_TX_B Out Reserved
78 ADAHRS2_A429_TX_A Out Reserved
J2 Pin Description I/O Initial Certification
1 VOR/ILS2_429_RX_A In Included
2 VOR/ILS1_429_RX_A In Included
3 VOR/ILS1_429_RX_B In Included
4 TRAFFIC_A429_RX_A In Reserved
5 TRAFFIC_A429_RX_B In Reserved
6 IFD1_ETH_TX_P Out Reserved
7 IFD1_ETH_TX_N Out Reserved
8 IFD2_ETH_TX_P Out Reserved
9 IFD2_ETH_TX_N Out Reserved
10 KSD100_MAINT_BOOT_MODE_DIGO In Included
11 KSD100_MAINT_ETH_TX_P Out Included
12 KSD100_MAINT_ETH_TX_N Out Included
J1 Pin Description I/O Initial Certification
