89000109-002 xVue Touch Installation Manual
Rev 2 Page 5-1
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft
5 CONNECTOR PINOUT INFORMATION
5.1 KSD 100EXP

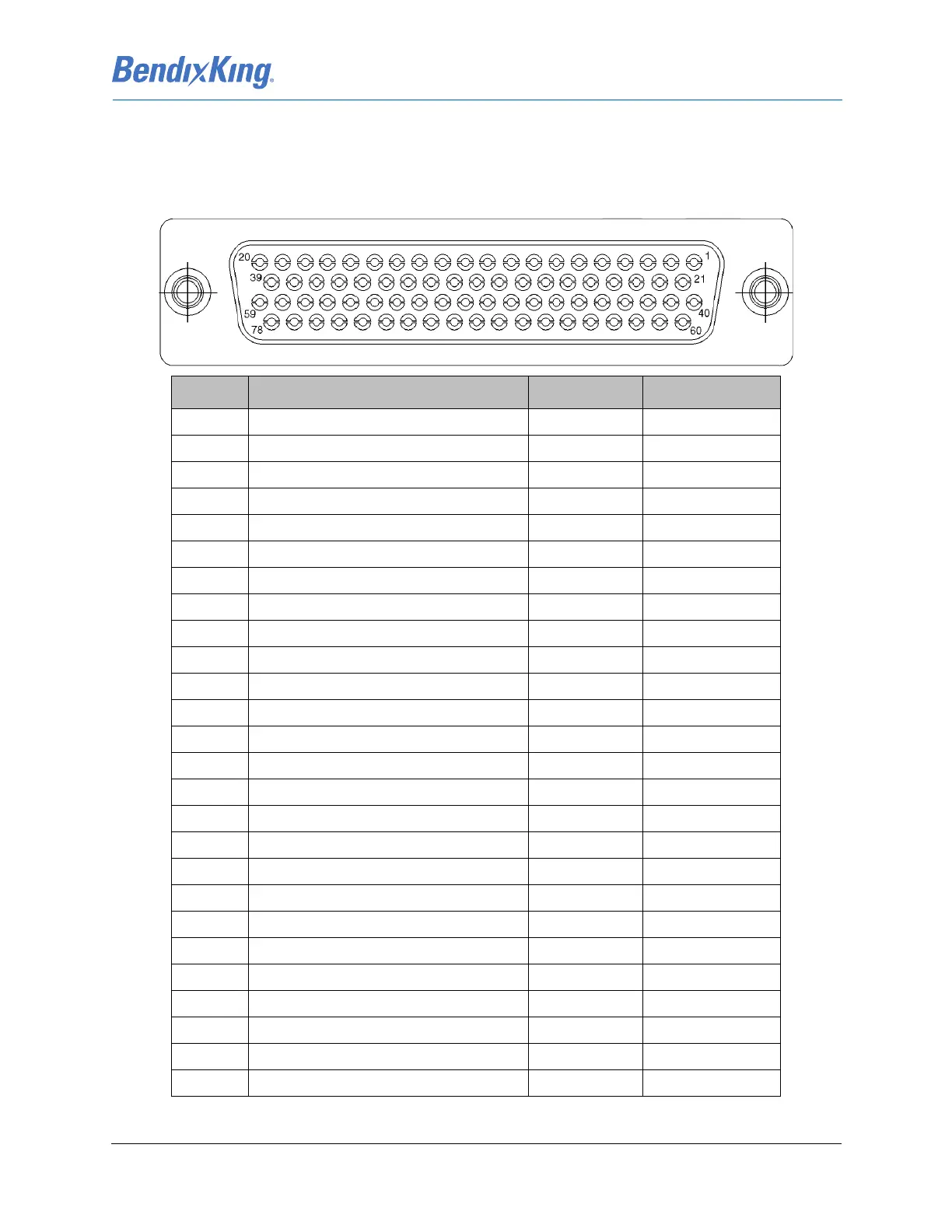

Table 5-1 KSD 100EXP J1 Pin Descriptions (Viewed from LRU)
J1 Pin Description I/O Initial Certification
1 CAMERA_COMP_IN_VIDEO In Reserved
2 CAMERA_COMP_IN_VGND In Reserved
3 EGPWS_A453_RX_H In Reserved
4 EGPWS_A453_RX_L_TERM In Reserved
5 EGPWS_A429_TX_A Out Reserved
6 WX_RADAR_A453_RX_H In Reserved
7 WX_RADAR_A429_TX_A Out Reserved
8 UAT_WX_RS232_RX In Included
9 UAT_WX_RS232_TX Out Included
10 NAV1_2_ROLL_STR_VAL_DO28VO Out Reserved
11 NAV1_ROLL_STR_VALID_DI28VO In Reserved
12 WX_RADAR_ON_DOGO Out Reserved
13 AP_DISC_VISUAL_ANN_DIGO In Reserved
14 GPS_SEL_DOGO Out Included
15 PITCH_TRIM_FAIL_ANN_DIGO In Reserved
16 AFCS_A429_RX_B In Reserved
17 AFCS_A429_RX_A In Reserved
18 AFCS_A429_TX_B Out Reserved
19 AFCS_A429_TX_A Out Reserved
20 GPS_2_GAMA_429_RX_A In Included
21 EGPWS_A453_RX_L In Reserved
22 EGPWS_A429_TX_B Out Reserved
23 WX_RADAR_A453_RX_L_TERM In Reserved
24 WX_RADAR_A453_RX_L In Reserved
25 WX_RADAR_A429_TX_B Out Reserved
26 UAT_WX_RS232_GND GND Included
