BENDIXKing XVUE TOUCH - Figure A-3 KCP 100 EXP Dimensions and Center of Gravity - Portrait Orientation

89000109-002 xVue Touch Installation Manual
Rev 2 Page A-3
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

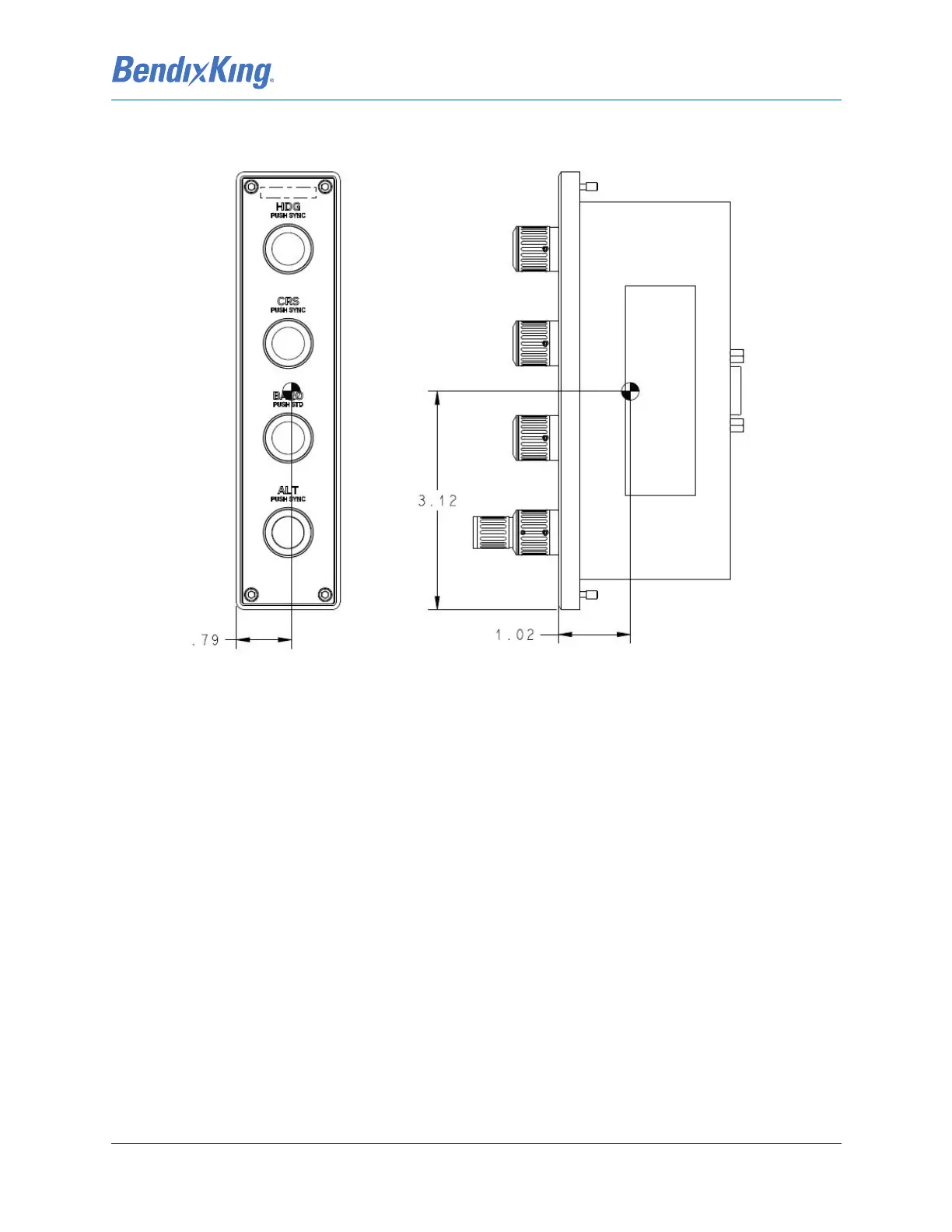

Figure A-3 KCP 100EXP Dimensions and Center of Gravity - Portrait Orientation
