BENDIXKing XVUE TOUCH - Figure A-5 KCP 100 EXP Panel Cutout Dimensions

89000109-002 xVue Touch Installation Manual
Rev 2 Page A-5
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

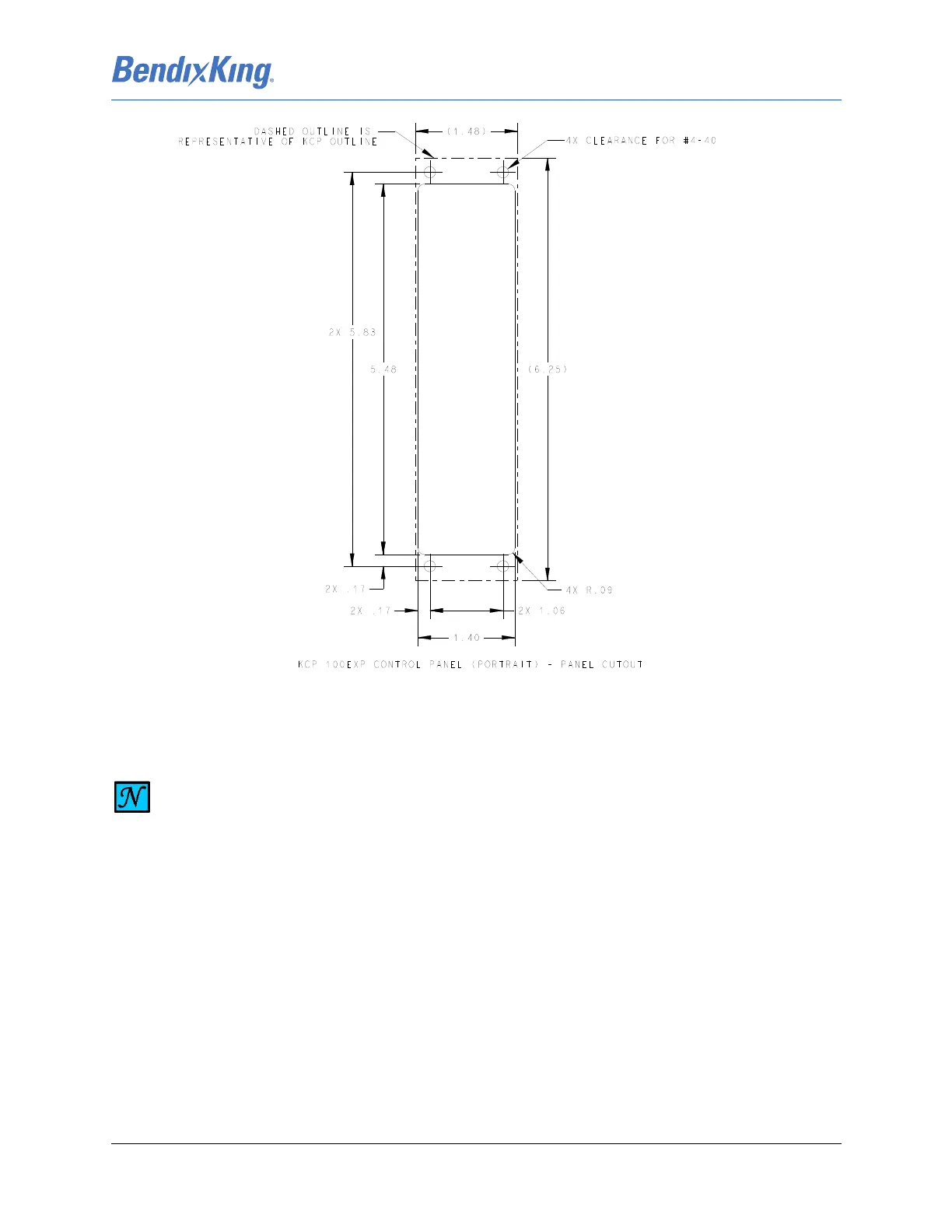

Figure A-5 KCP 100EXP Panel Cutout Dimensions
NOTE
UTILIZE SAME KCP 100EXP PANEL CUTOUT DIMENSIONS FOR HORIZONTAL KCP 100EXP
INSTALLATION BUT ROTATED 90 DEGREES.
