89000109-002 xVue Touch Installation Manual
Rev 2 Page B-8
© Honeywell International Inc. Do not copy without express permission of Honeywell.
For Use in Non-Certified Aircraft

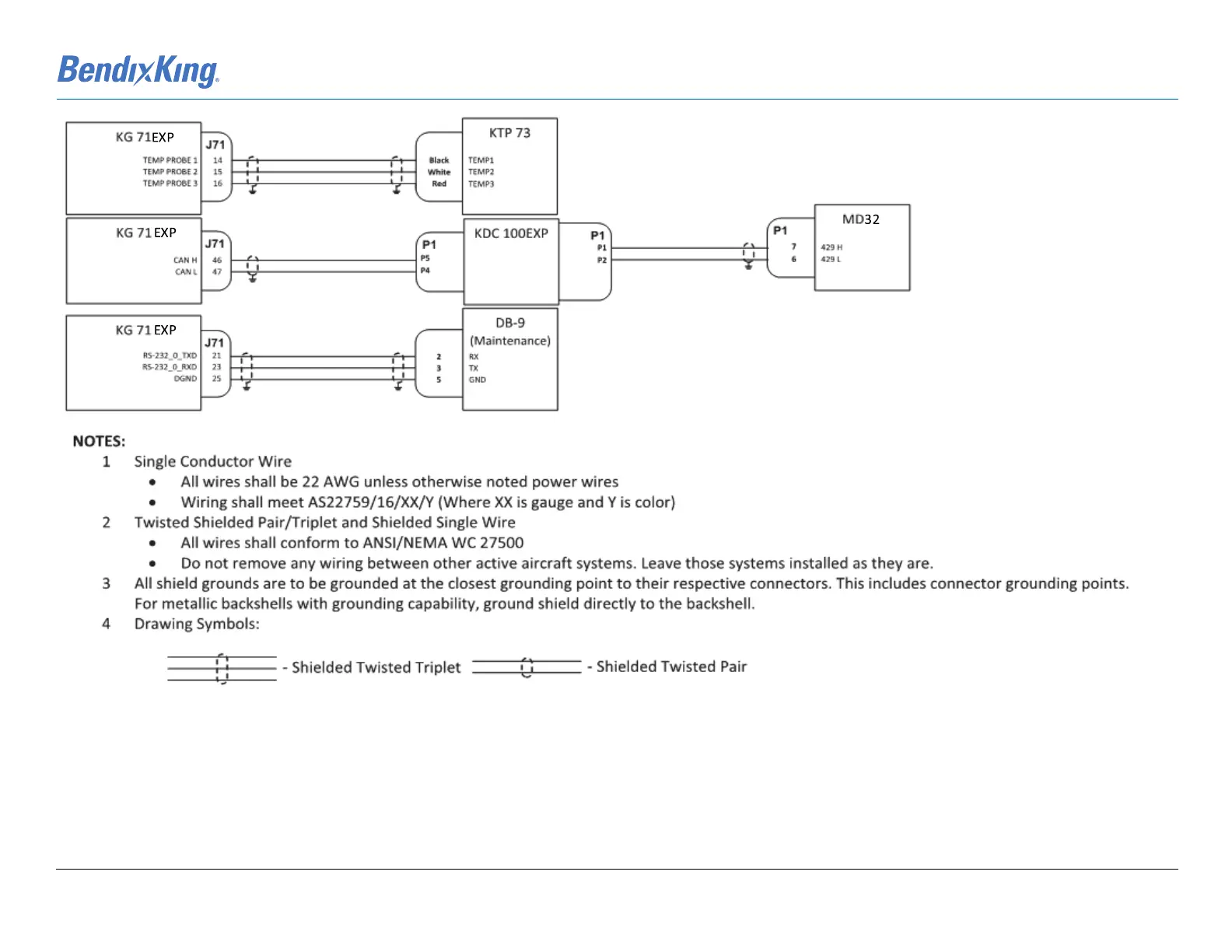

Figure B-8 KG 71 LRU Interconnect Diagram - 2
