198 Programmer
Chapter 4 Extended Option Output
Setting the extended option output
Items to be set are as follows:
Extended option output number Specify a number out of 1 - 16. Refer to "Table of extended
option output" (Refer to page 207.)
Operation setting
Select one out of ON, OFF, FLIP and FLOP with
.
Output condition Input conditions for the extended option output. 3 conditions
can be specified. Refer to "Table of extended option output"
(Refer to page 207.)
Timer 1 Set the time until the output varies after the output
condition is established.
Input the value in unit of 10 ms. Value of 0 or 10 - 2550 ms is
set.
Timer 2 Set the time for implementation of the extended option
output. Input the value in unit of 10 ms. Value of 0 or 10 -
2550 ms is set.
When the value is 0, the output remains varying.
When setting is complete, be sure to press .
To cancel the set value, input and press .
To register the setting into the machine, carry out operation of "Writing the extended option
output data" (page 201).

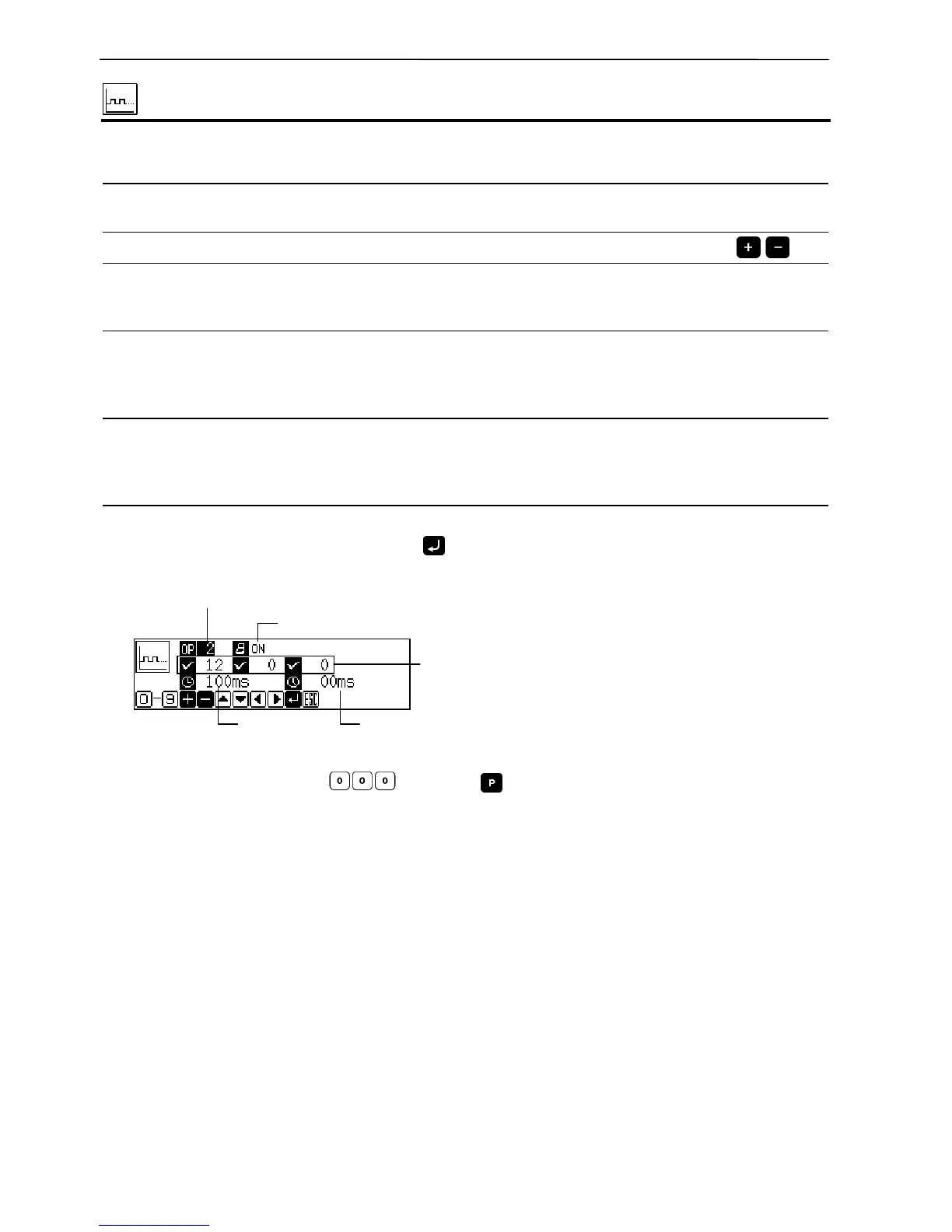

Extended option output No.
Operation setting
Output setting
Timer 2Timer
