138 Programmer
Chapter 3 Programming with Command Function

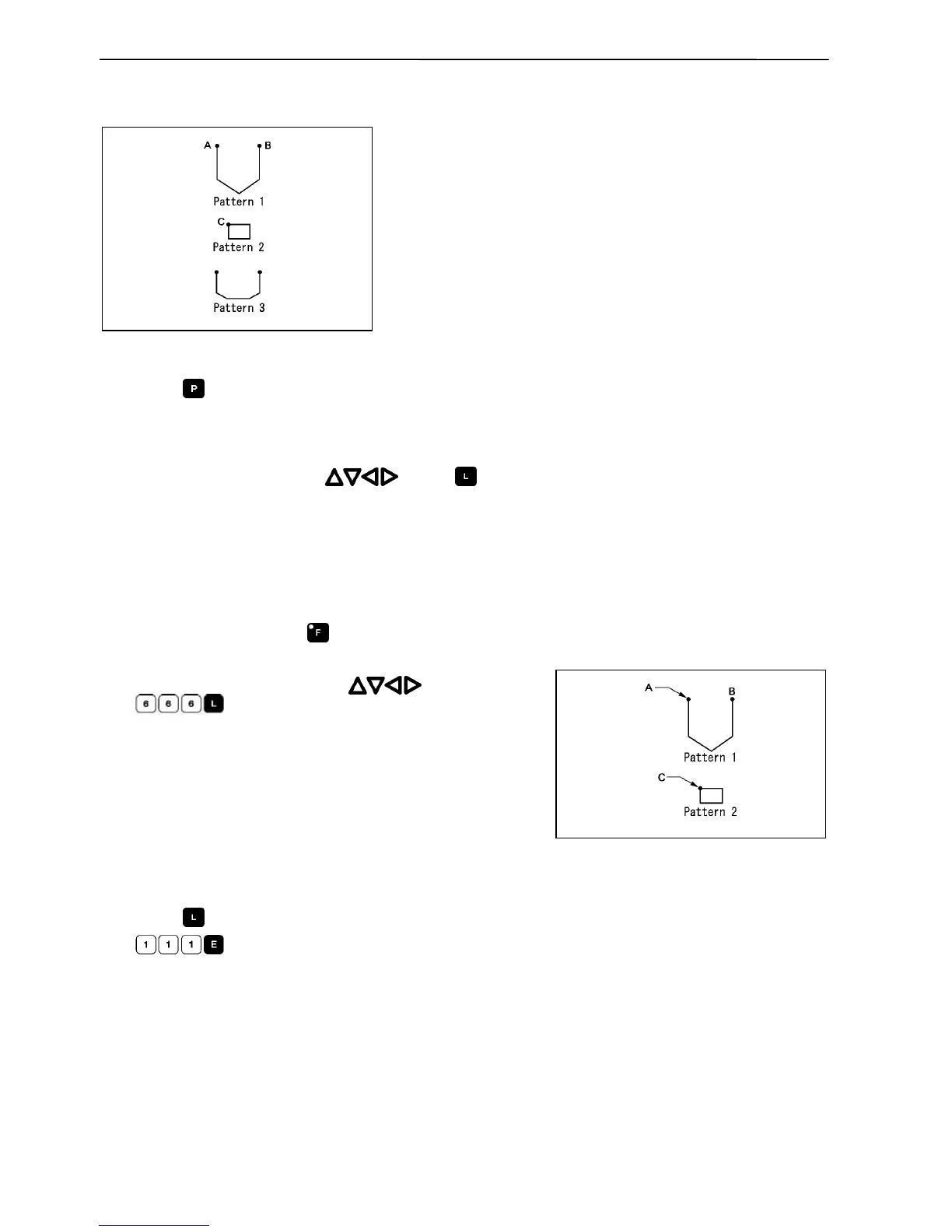

Splitting
Different patterns, splitting each pattern in sequence, are
programmed. The example in the left is used for explanation
of 3 patterns in sequence.
Programming
1. Press .
The work clamp moves to the home position and
the programmer screen is displayed.
2. Move the work clamp with . Press
when the needle point is at point A of the
pattern.
The first stitch (point A) is programmed.
3. Program pattern 1.
4. Input point B and press
.
5. Move the work clamp with
. Press
when the needle point is at point C
of the pattern.
To change the pattern, press the pressure holder
lift switch and replace the pattern.
6. Program patterns 2 and 3.
Inputting the end code
1. Press at the last stitch and press
.
The work clamp returns to the start position.
Saving
1. Specify the program number on the operation
panel and press the read/write switch for writing
into the floppy disk.
