208 Programmer
Chapter 4 Extended Option Output
Example of extended option output

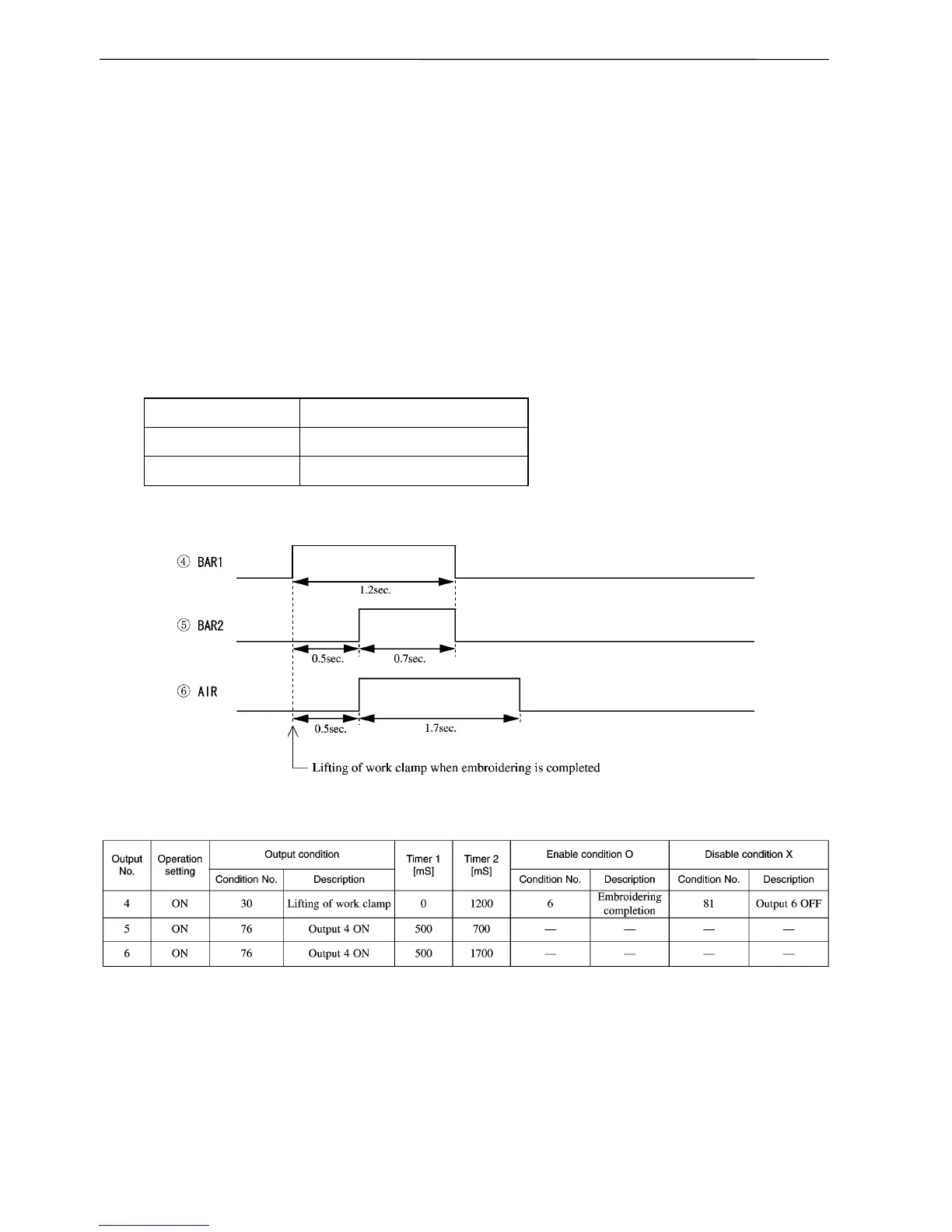

To program the extended option output, prepare the timing chart. Then set the output condition,
enable/disable conditions based on the chart.
The example shows how program setting values are determined from the timing chart. No
explanation is given for the operation of the machine.
Example 1 of extended option output
Sequence 1 for stacker
This is a sequence example for removing and stacking the material as soon as the work
clamp is lifted after sewing.
Option output 4 BAR1 for holding material
Option output 5 BAR2 for moving material
Option output 6 AIR for air blow
Timing chart
Program setting value
