Brother PE-Design Next User Manual

196
Line Image Stage
Line Image Stage
Extracting the outlines of
an image
1. In the Original Image Stage, click 1.
c
“Original Image Stage” on page 185.

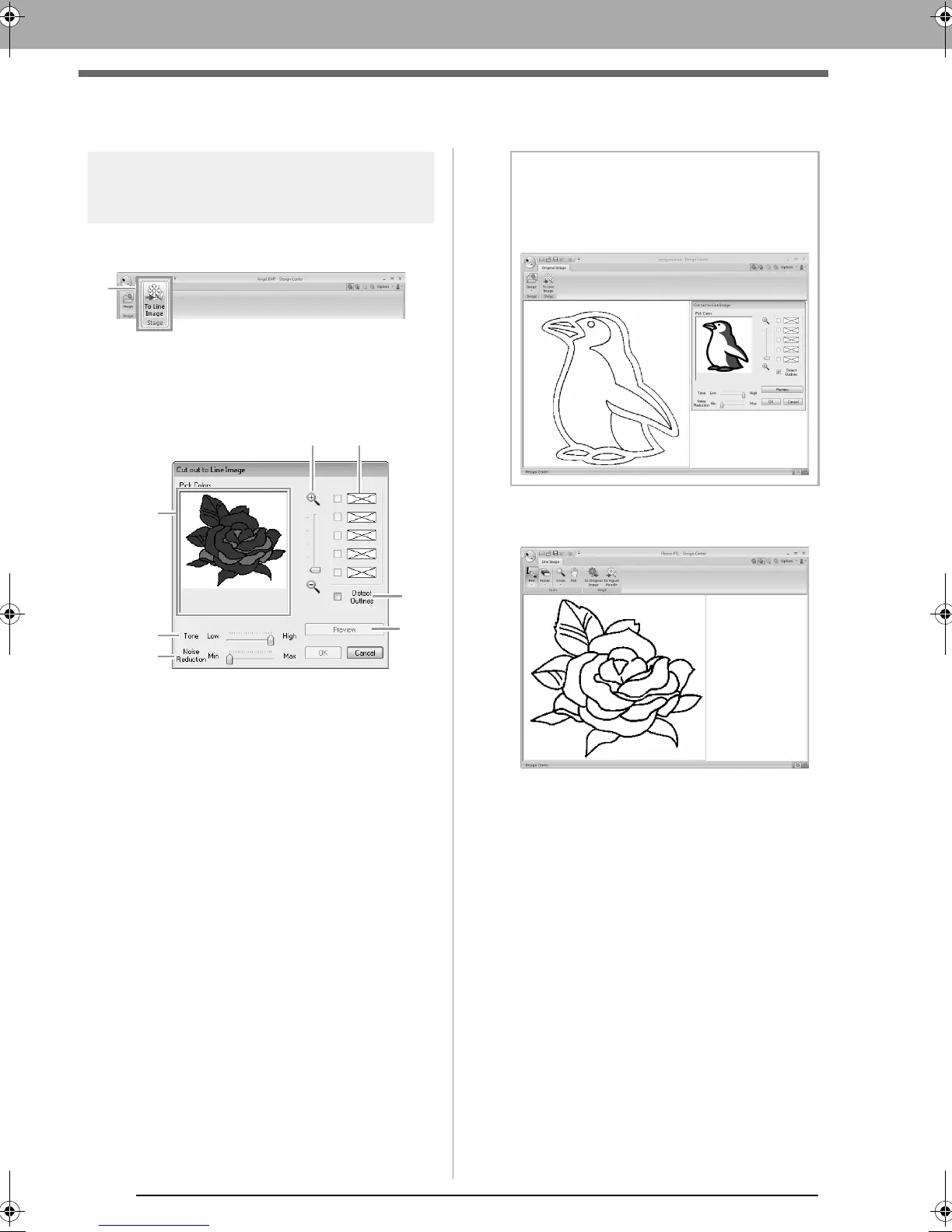

2. Selecting the colors to be used for the
outlines, and then click OK.
(1) Zoom slider
Use this slider to adjust the zoom ratio for
displaying the image.
(2) Tone slider
Use this slider to reduce color tones in
images where it is difficult to select the
outline color.
(3) Noise Reduction slider
Use this slider to reduce image noise
(distortions) in images where the outline is
not clear.
(4) Click the outline color(s) to convert into
black outlines.
(5) Displays the colors selected in (4). To
deselect a color, clear the corresponding
check box.
(6) To extract the color boundaries, click
Detect Outlines check box.
(7) Click Preview to preview the line image in
the Design Page.
1
(2)
(5)
(1)
(3)
(4)
(6)
(7)
b Memo:
When the extracting color boundaries using
Detect Outlines , the colors are converted to
line image as shown below.
XE8656-001.book Page 196 Monday, May 24, 2010 5:44 PM
