Operation
9
ekr CON 100 – Installation and Operating Manual 101/130
5. Move the web to the desired guiding setpoint (by moving the
CLS Pro 600 line and contrast sensor mechanically across the
web running direction).
6. Position the capture sensor so that the web edge is located in
the centre of the sensor scanning area.

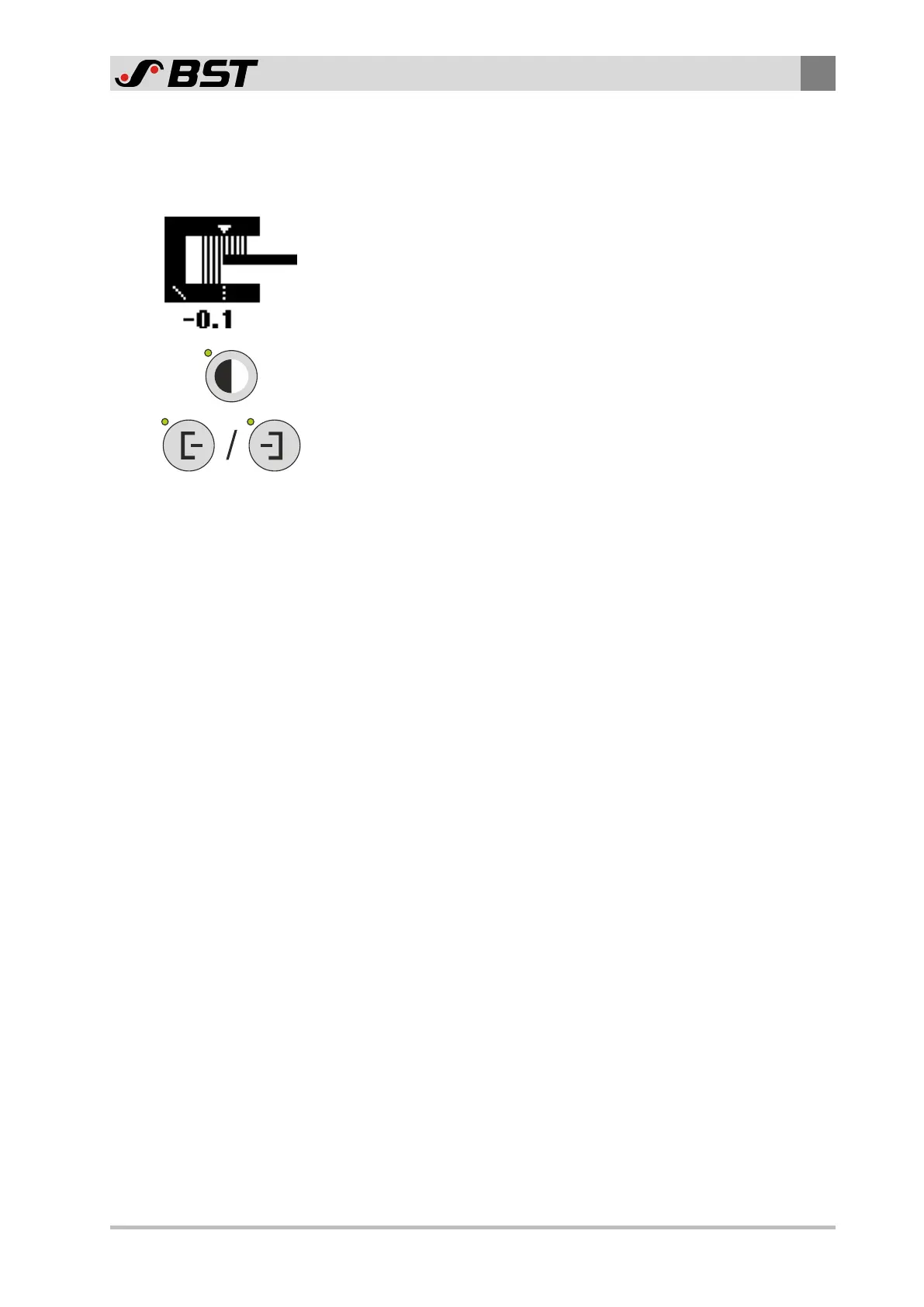

The current position of the web edge in the sensor scanning area
is shown in the display of the controller under the respective
sensor symbol.
7. Press the Sensor 3 key on the controller and keep it pressed.
The LED of the key illuminates.
8. Press the key for the capture sensor used (Sensor 1 or Sensor 2).
9. First release the Sensor 3 key and then the key for the capture
sensor used (Sensor 1 or Sensor 2).
Caution! Observe the order in all cases!
The LED of the capture sensor key illuminates.
ð The Watchdog function is switched on.
If the capture sensor takes over the guiding in event of losing the
printed line or the contrast transition then the LED of the respective
key (Sensor 1 or Sensor 2) flashes.
