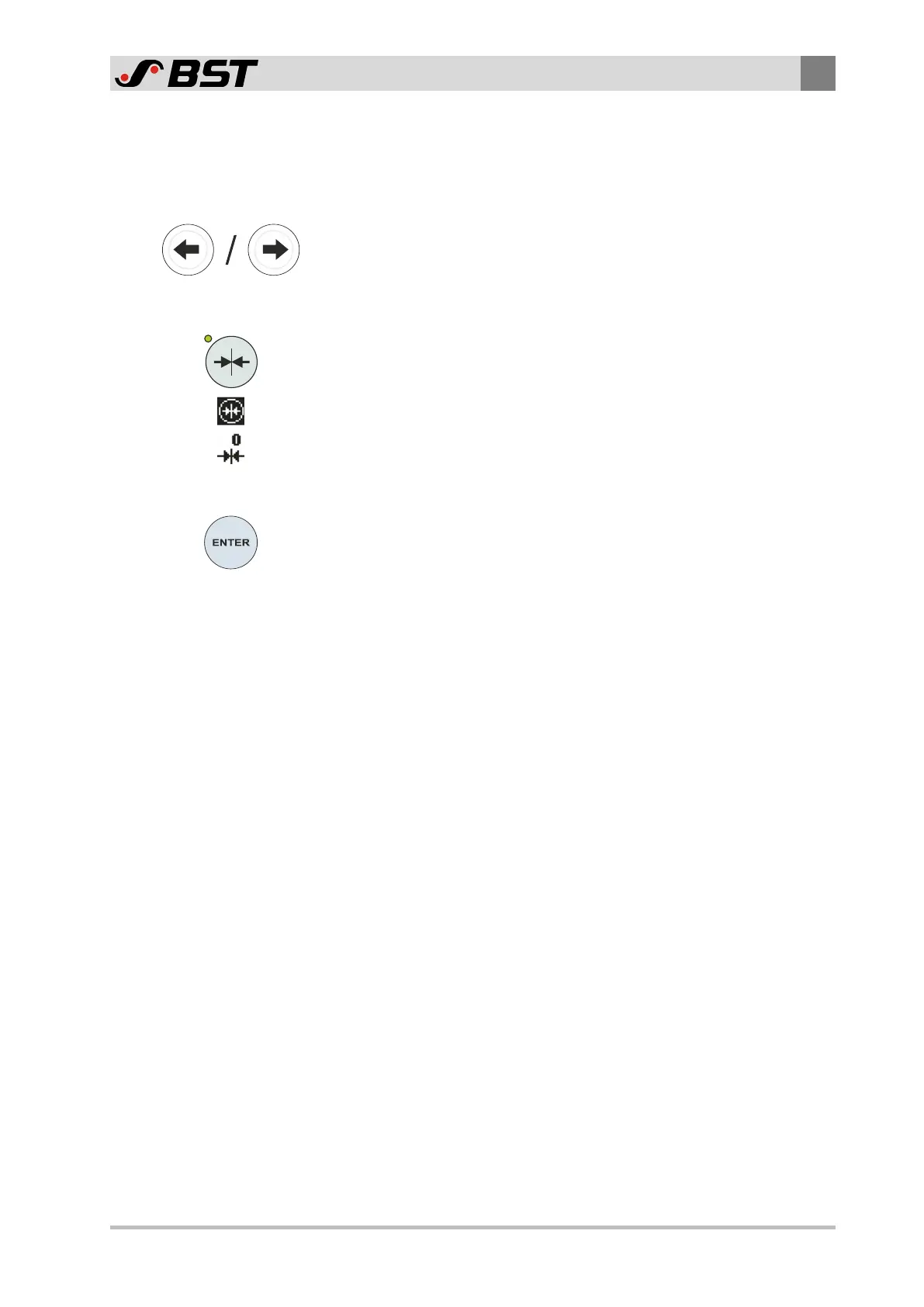

Setting the servo-center position
The servo-center position must be located within the positioning
range of the actuator which is limited by both software limit
switches.
1. Using the arrow keys, move the actuator to the desired
position for the central position of the guiding device.
The position indicator of the actuator displays the value supplied
by the position feedback.
2. Press the Center positioning key.
The current position is stored as the servo-center position.
The symbol Servo-center position will be inversely displayed.
The new servo-center position appears under the symbol.
Exiting the settings
►
Press the ENTER key.
The setting menu is closed.
ð All edited parameter values are saved.
ð The operation screen is displayed.
