Burford 2000 - Auxiliary DIP Switch Settings

Settings and Adjustments 87
 Auxiliary DIP Switch Settings
The Auxiliary board, P/N C01267, has a group of eight DIP switches on the bottom left,
labeled SW1, which are used to configure Servo Tyer parameters. The following table
identifies the switch functions.
SWITCH #
“OFF” POSITION
“ON” POSITION
1
RIGHT HAND MACHINE,
MODEL 2000
LEFT HAND MACHINE, MODEL 2100
2
COUNTER’S CONTACTS
CLOSE TO COUNT
COUNTER’S CONTACTS OPEN TO
COUNT
3
NOT USED
NOT USED
4
HEEL DETECTION INACT
IVE
HEEL DETECTION ACTIV
E
5
USE DATA IN BATTERY
BACKED RAM
USE DATA IN PROM (DEFAULT SET-
UP)
6
PACKAGE RECOGNITION
CYCLE ABORT INACTIVE
PACKAGE RECOGNITION CYCLE
ABORT ACTIVE
7
NORMAL TIE CYCLE SPE
ED
MAXIMUM TIE CYCLE SP
EED
8
FOUR TWISTS BY TWISTER
HOOK
FIVE TWISTS BY TWISTER HOOK

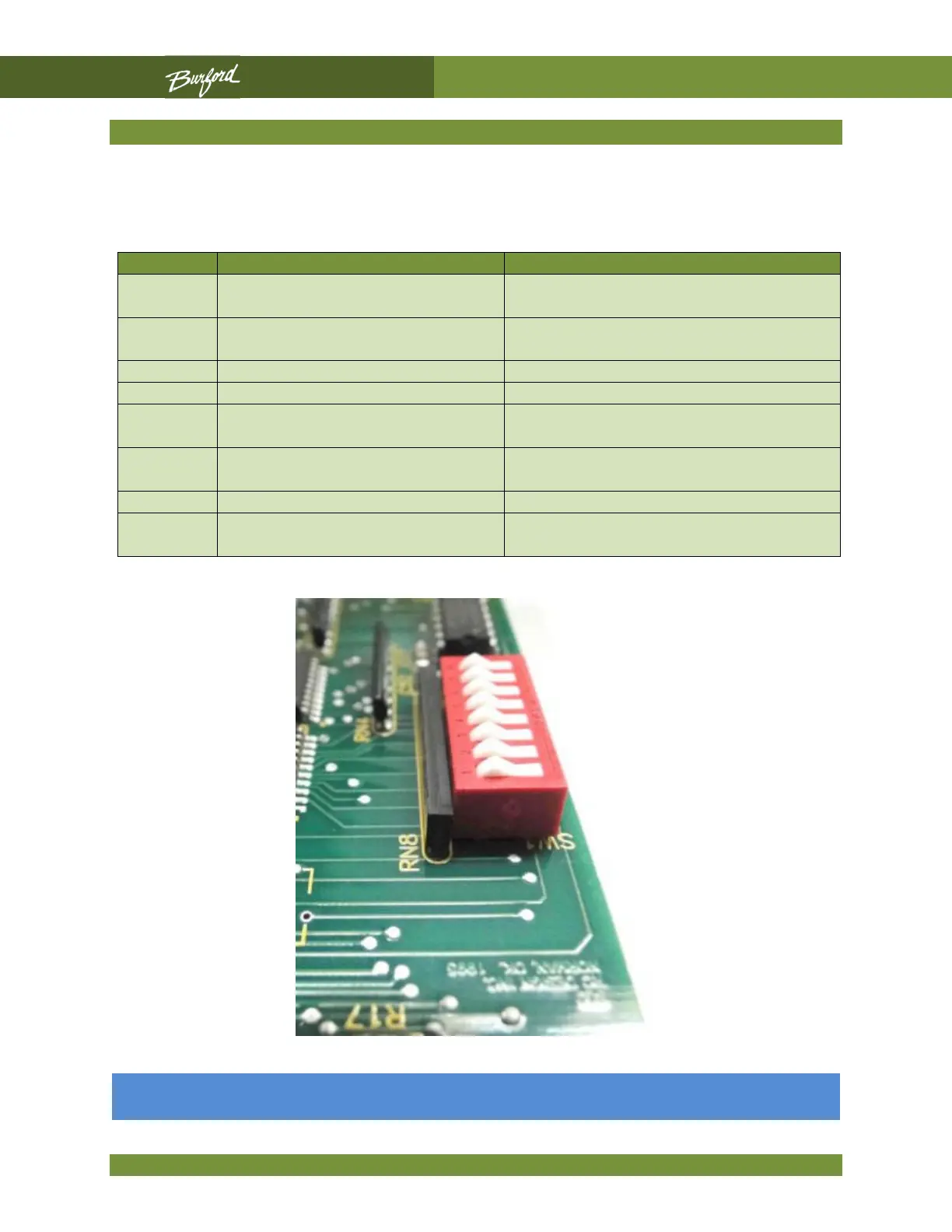

All eight (8) DIP switches shown in the “OFF” position.
.
