22
Chapter 2
CHAPTER 2: KEY COMPONENTS
Below is a list of key components that you must familiarize yourself with to gain a better
understanding of how the Servo Tyer functions.

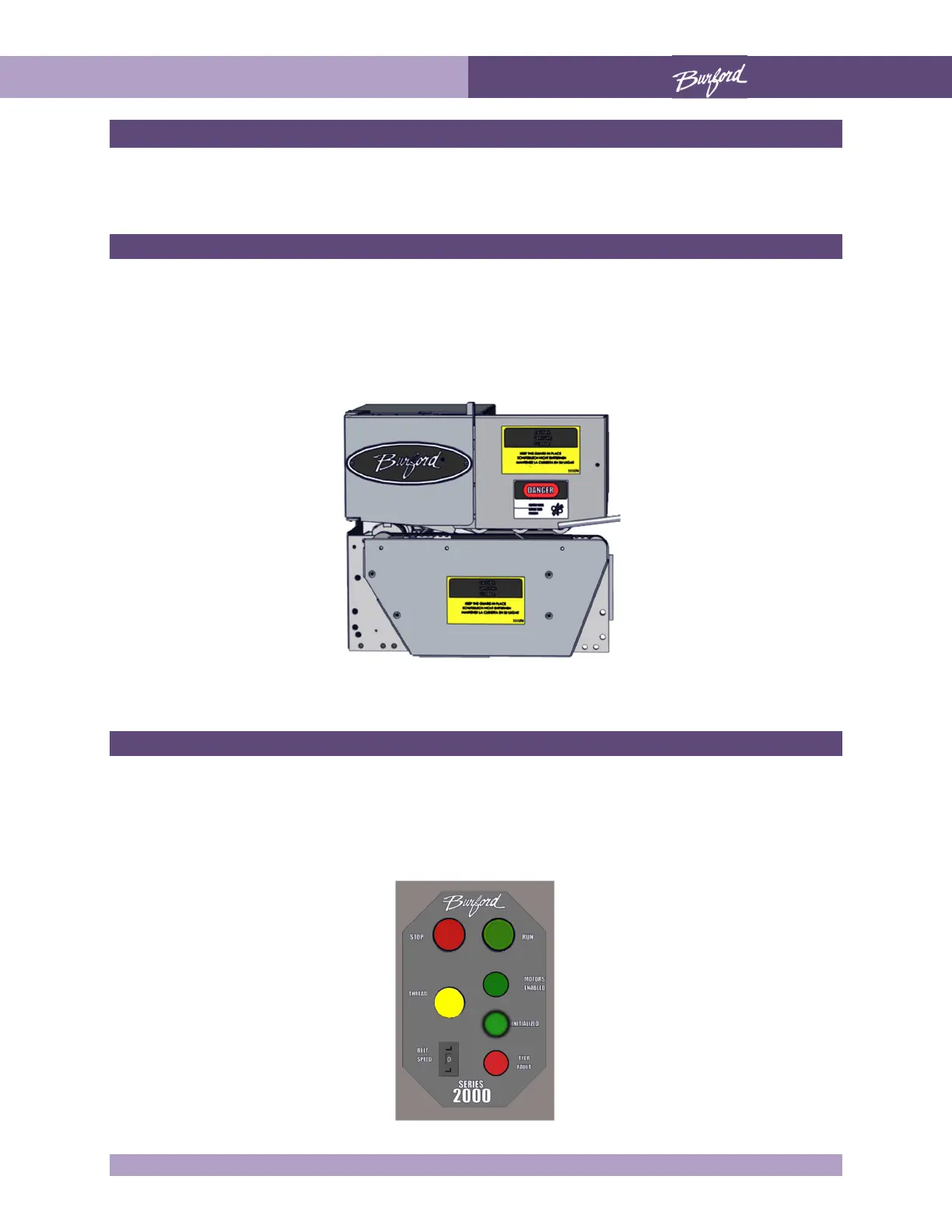

Tyer Head
The Tyer Head is made up of all the mechanical and electrical components necessary to
perform a closure. The Tyer Head applies the ribbon to the product. When the bag trips
the trigger arm, the 4 servo motors work together to apply ribbon with either 4 or 5 twists
to the bag.
Control Panel
The Control Panel is located at the top of the tyer head. This is where the operator will
control the machine. It houses the E-Stop for the Tyer head only, start button, Thread
button, Motors Enabled Light, Initialized Light, Tyer fault light, and the Belt Speed Switch.
