Spool Brake
Belt Clamp
Dancer Arm
Belt Clamp
Ribbon Dispenser Adjustment, cont’d

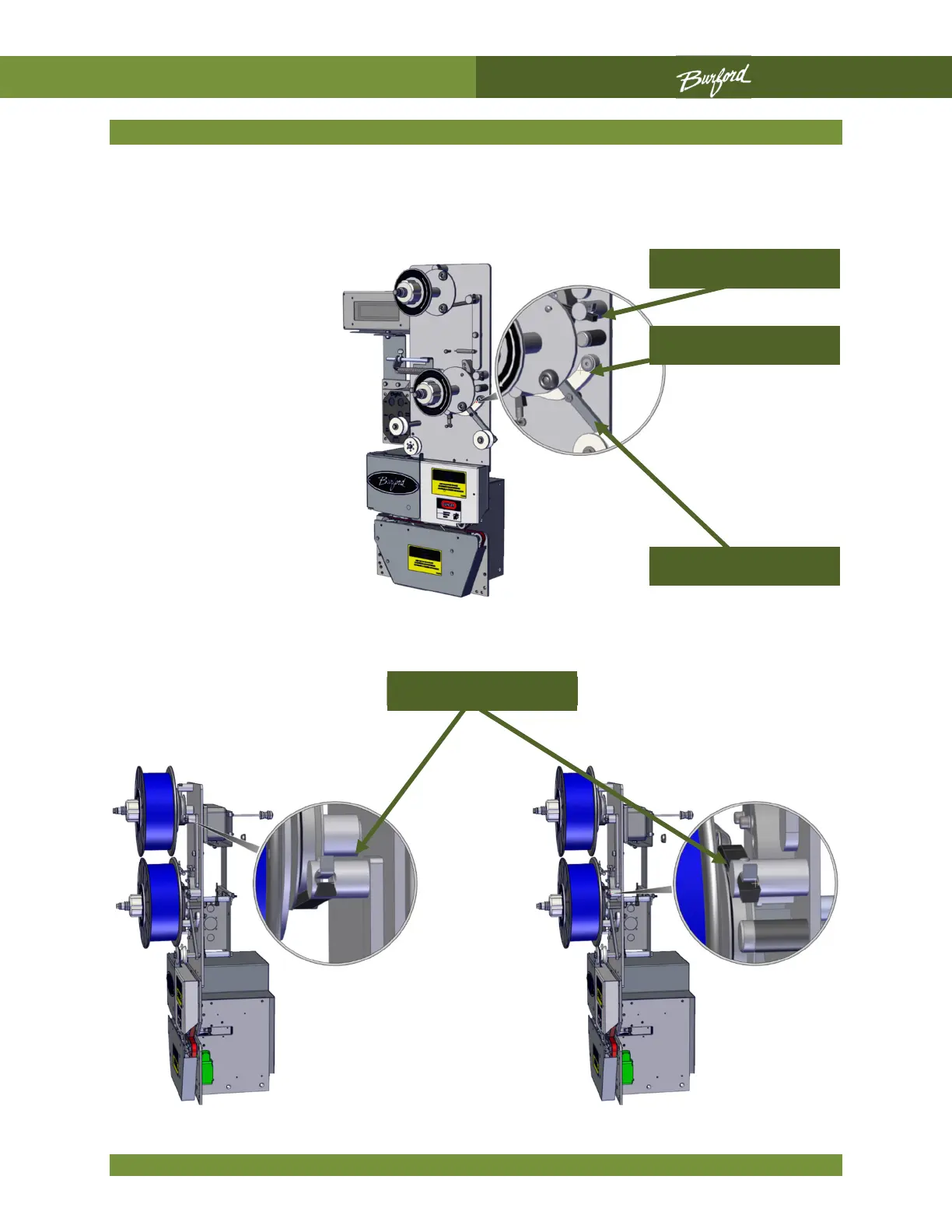

Adjust spool break by loosening the belt clamp and adjusting the belt until the break
releases the spool allowing it to spin freely. At the point, which the spool turns freely, the
dancer arm Nyloc nut, located on the back of its pulley, should be aligned with the edge
of the main plate.
Both the upper and lower ribbon assemblies are adjusted in the same manner.
