Auxiliary functions
26.2.3. DIR.CMD – Sense of effective direction of the positioner
set-point value
Use this auxiliary function to set the sense of effective direction between the input signal (INPUT) and the nominal
position (CMD) of the actuator.
Each auxiliary function, which is to be set, must be incorporated initially into the main menu (MAIN).
See Chapter “26.1. Activating and deactivating auxiliary functions”.
Factory setting: Rise
SELEC
EXIT
DIR.CMD
Rise
Fall
ENTER
Direct effective direction
(e.g. 4 mA or 0 V → 0 %,
20 mA or 5/10 V → 100 %)
Inverse effective direction
(e.g. 4 mA or 0 V → 100 %,
20 mA or 5/10 V → 0 %)

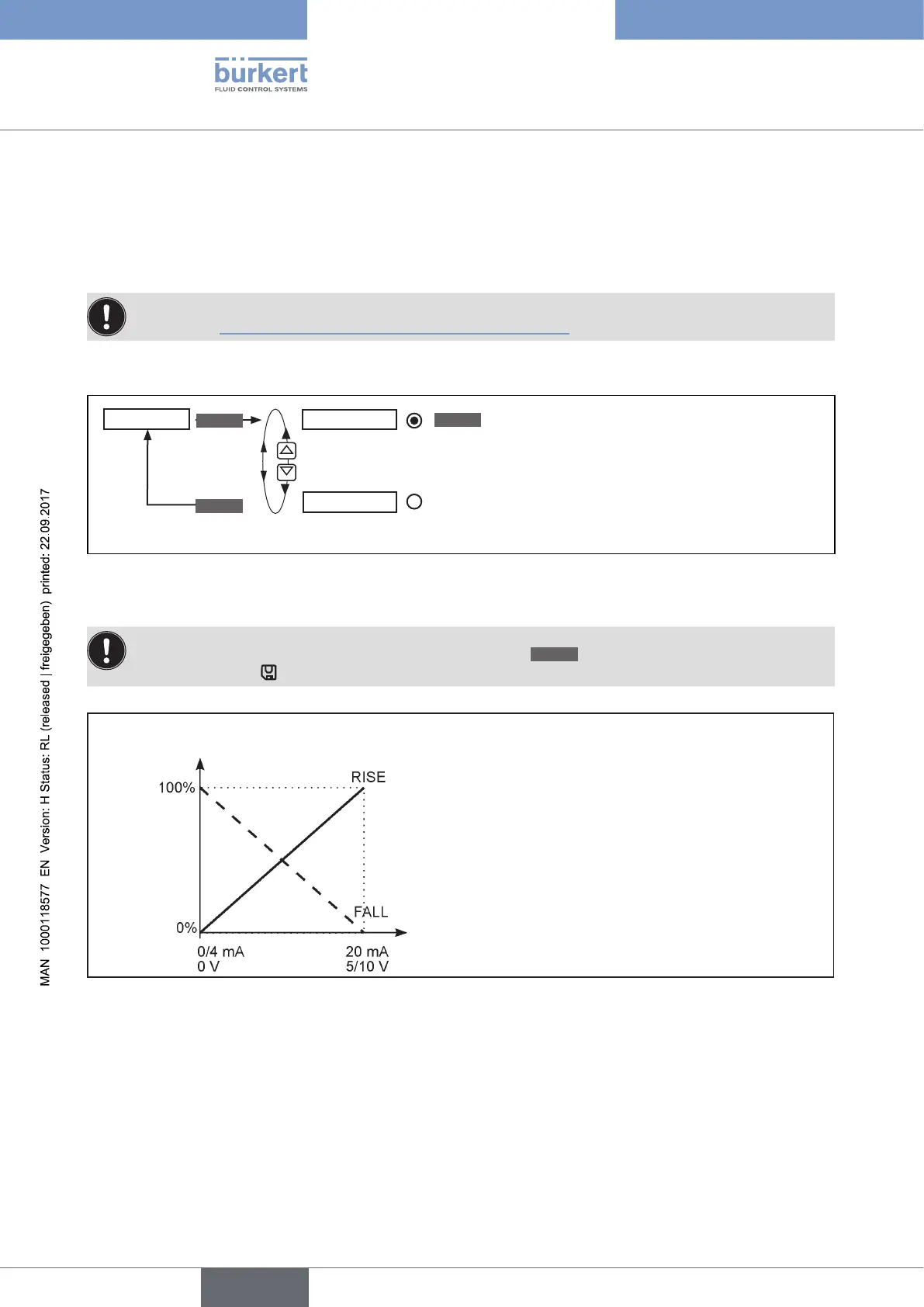

Figure 57: Operating structure DIR.CMD
The changed data is saved in the memory (EEPROM) only when there is a switch to the process level,
by leaving the main menu (MAIN) using the left selection key
EXIT
. During the save process, the save
symbol is indicated
on the display.
Nominal position
(CMD)
Input signal
(INPUT)
Figure 58: Graph - DIR.CMD
