Burkert 8792 - X4.-.M8,.4-Pole.socket,.Optional.-.Remote.sensor.(For.remote.model.only)

190
PROFIBUS DP

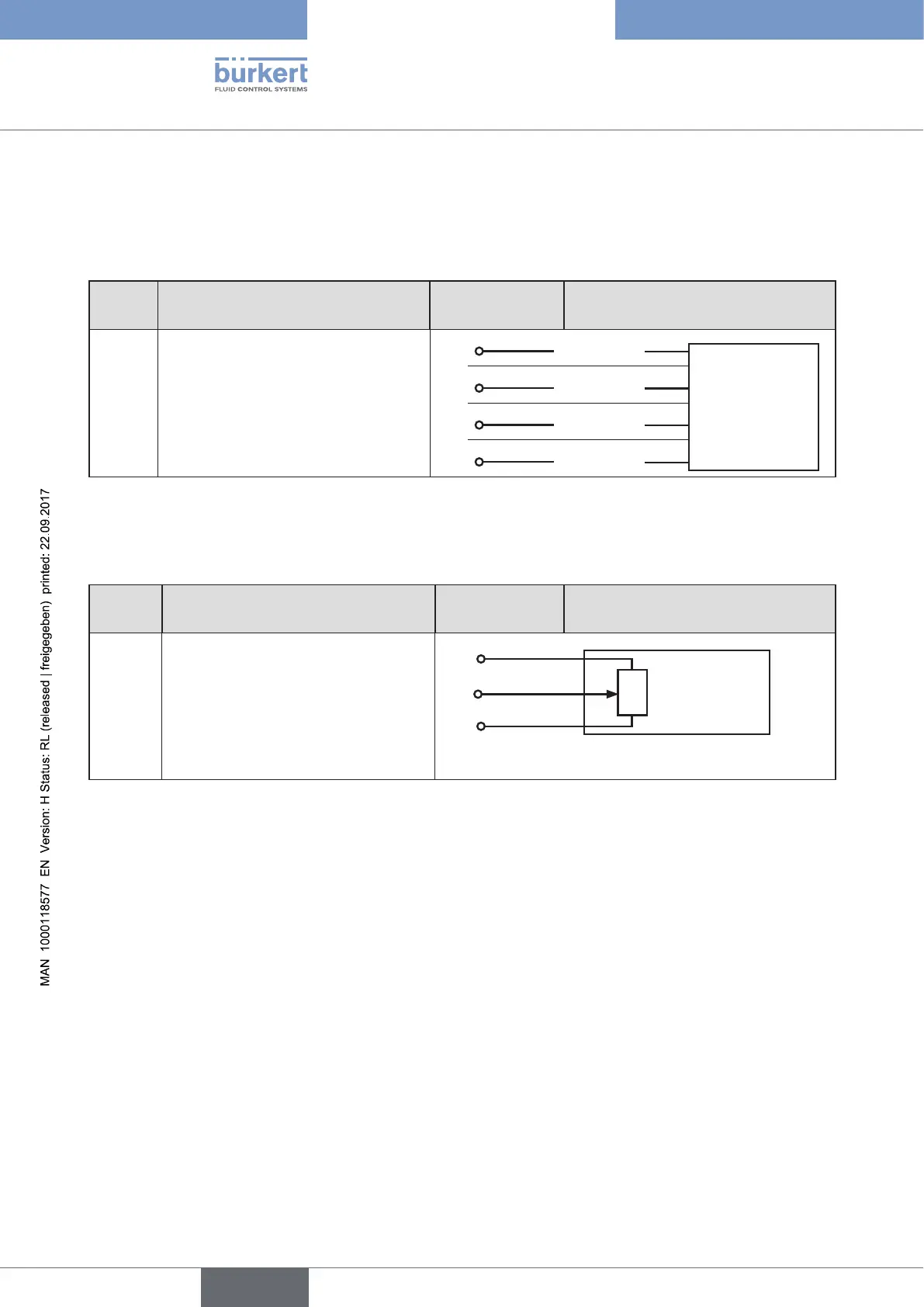

29.5. X4 - M8, 4-pole socket, optional - Remote Sensor
(for remote model only)
Connection of the digital, contact-free position sensor Type 8798:
Pin Configuration
On the device
side
External circuit
1 Supply sensor +
S +
+
Remote Sensor
Type 8798
digital
2 Supply sensor –
S –
–
3 Serial interface, A cable
A
A cable
4 Serial interface, B cable
B
B cable
Table 104: Plug assignments; X4 - M8, 4-pole socket - digital, contact-free position sensor Type 8798
Connection of an analog, potentiometric position sensor:
Pin Configuration
On the device
side
External circuit
1 Potentiometer 1
1
Potentiometer
2 Wiper 2
2
3 Potentiometer 3
3
4 not used
Table 105: Plug assignments; X4 - M8, 4-pole socket - analog, potentiometric position sensor
english
Type 8792, 8793
