Burkert 8792 - Electrical Connection - Terminal Version for Cable Gland

53
Installation
Type 8792, 8793
english
15. ELECTRICAL CONNECTION - TERMINAL
VERSION FOR CABLE GLAND
DANGER!
Risk of injury due to electrical shock.
▶ Before reaching into the device or the equipment, switch off the operating voltage and secure to prevent
reactivation.
▶ Observe applicable accident prevention and safety regulations for electrical equipment.
WARNING!
Risk of injury from improper installation.
▶ Installation may be carried out by authorized technicians only and with the appropriate tools.
Risk of injury from unintentional activation of the system and an uncontrolled restart.
▶ Secure system from unintentional activation.
▶ Following installation, ensure a controlled restart.
Using the 4 – 20 mA set-point value input
If several devices of Type 8792/8793 are connected in series and the power supply to a device in this
series connection fails, the input of the failed device becomes highly resistive.
As a result, the 4 – 20 mA standard signal fails.
In this case please contact Bürkert Service directly.

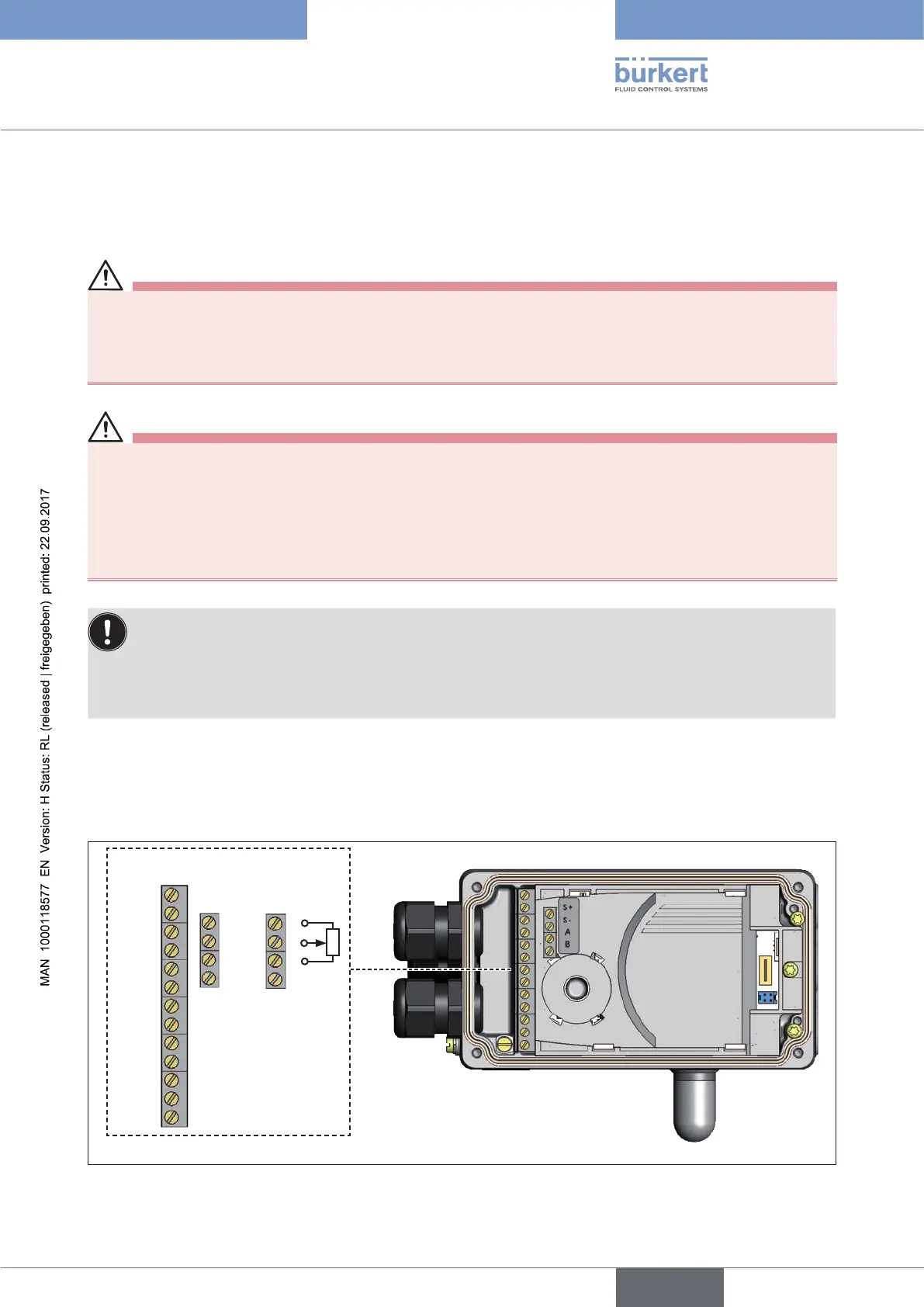

15.1. Connection board of the Type 8792/8793 with
screw-type terminals
1
2
3
4
+24 V
GND
83 +
85 +
31 +
32 –
11 +
12 –
81 +
S +
S –
A
B
Terminal assignment
optional (A or B)
A
B
1
2
3
Figure 26: Designation of the screw-type terminals
