30.5. Configuration with Siemens Step7
30.5.1. Example 1 of a positioner (Type 8792): Transfer of set-point
and actual value

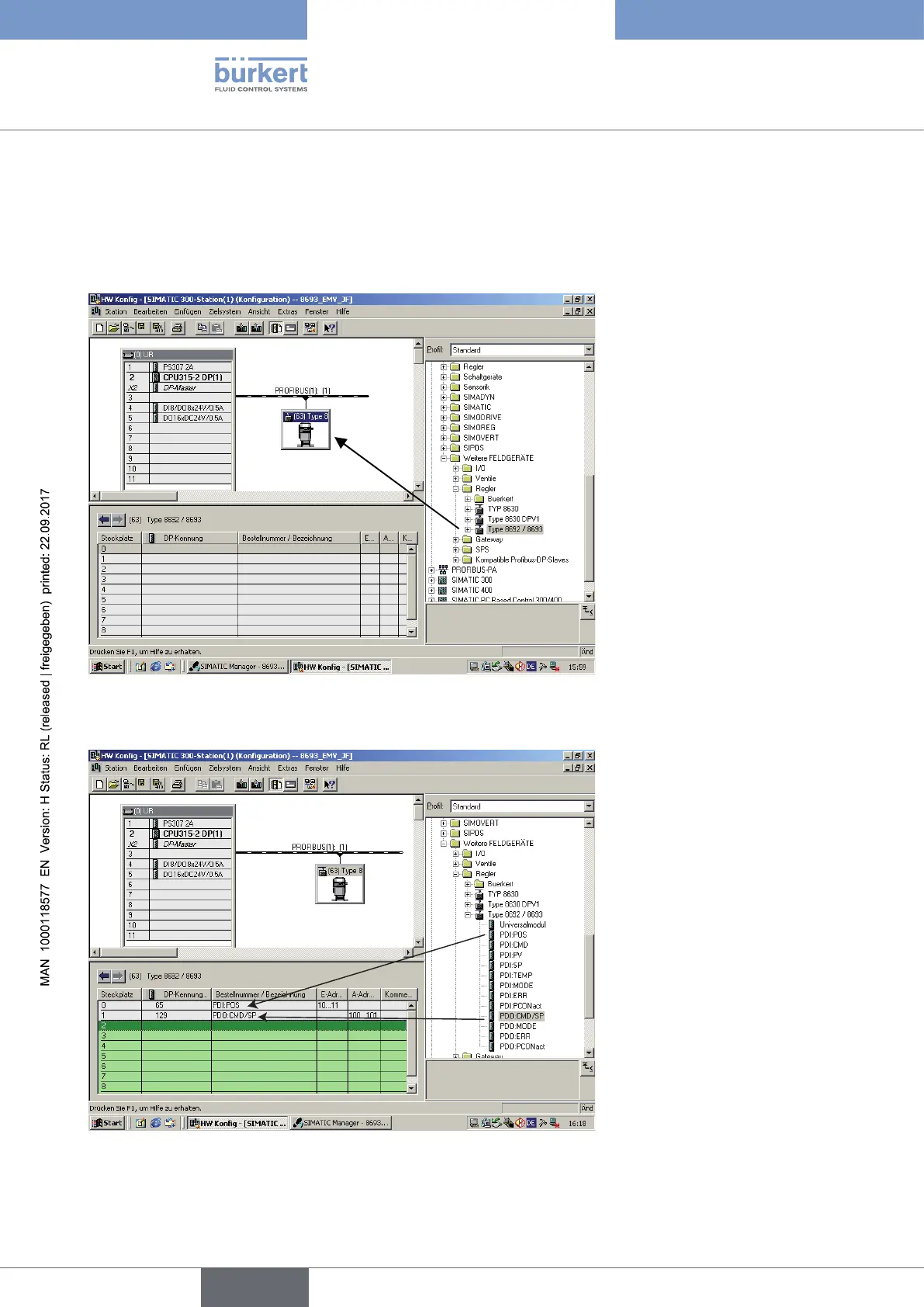

Figure 119: ScreenShot PROFIBUS
→ Pull the slave Type 8792 / 8793 onto the bus line with drag-and-drop.
Figure 120: ScreenShot positioner
→ Pull the modules PDI:POS and PDO:CMD/SP into the slave Type 8792 / 8793 with drag-and-drop.
