Installation
Type 8792, 8793
english
14.3. Type 8793 - designation of the circular plug-in
connectors and contacts
Functional earth FE
X1 - M12, 8-pole
circular connector
(Description see
“Table 14”)
Operating voltage
and diverse signals
X5 - M8, 4-pole
circular connector
(Description see
“Table 16”
Binary outputs
X4 - M8, 4-pole socket
(Description see
“Table 15”)
Process actual value
24
3
1
42
1
3
12
3
4
5
6
7
8

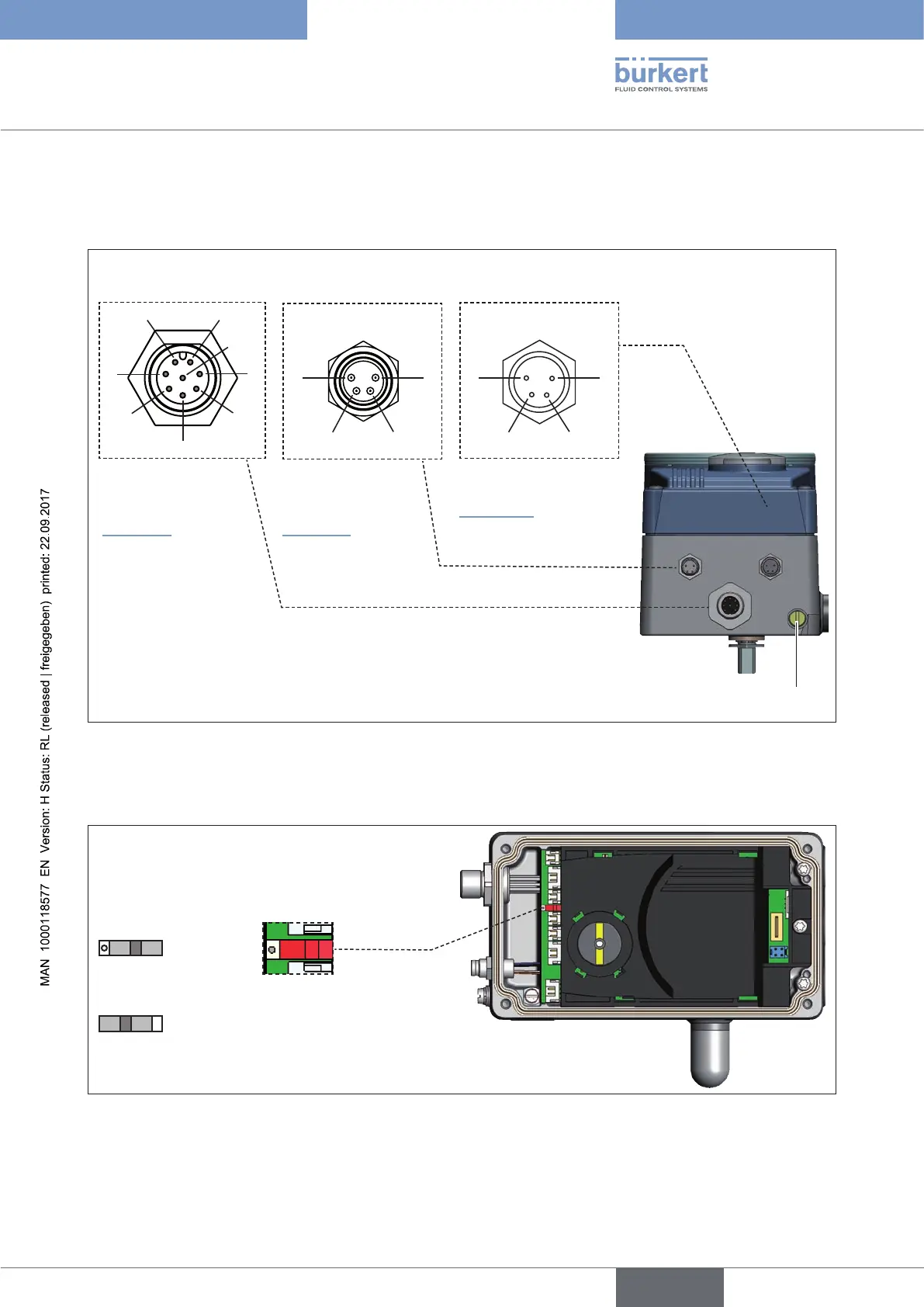

Figure 24: Type 8793; designation of the circular plug-in connectors and contacts
Location of the switch:
Symbols for
switch position
Location of the switch
Switch on left
Switch on right
Figure 25: Location of the switch; symbols for switch position
