Burkert 8792 - Installation

37
Installation
Type 8792, 8793
english
12.2.2. Installation
WARNING!
Risk of injury from improper installation.
▶ Installation may be carried out by authorised technicians only and with the appropriate tools.
Risk of injury from unintentional activation of the system and an uncontrolled restart.
▶ Secure system from unintentional activation.
▶ Following assembly, ensure a controlled restart.
Procedure:
→ Using the clamping pieces ③, hexagon bolts ⑰ and circlips ⑯ attach the hoop ② to the actuator spindle.
Legend:
No. Name
2 Hoop
3 Clamping piece
16 Circlip
17 Hexagon bolt
3
17
2
16

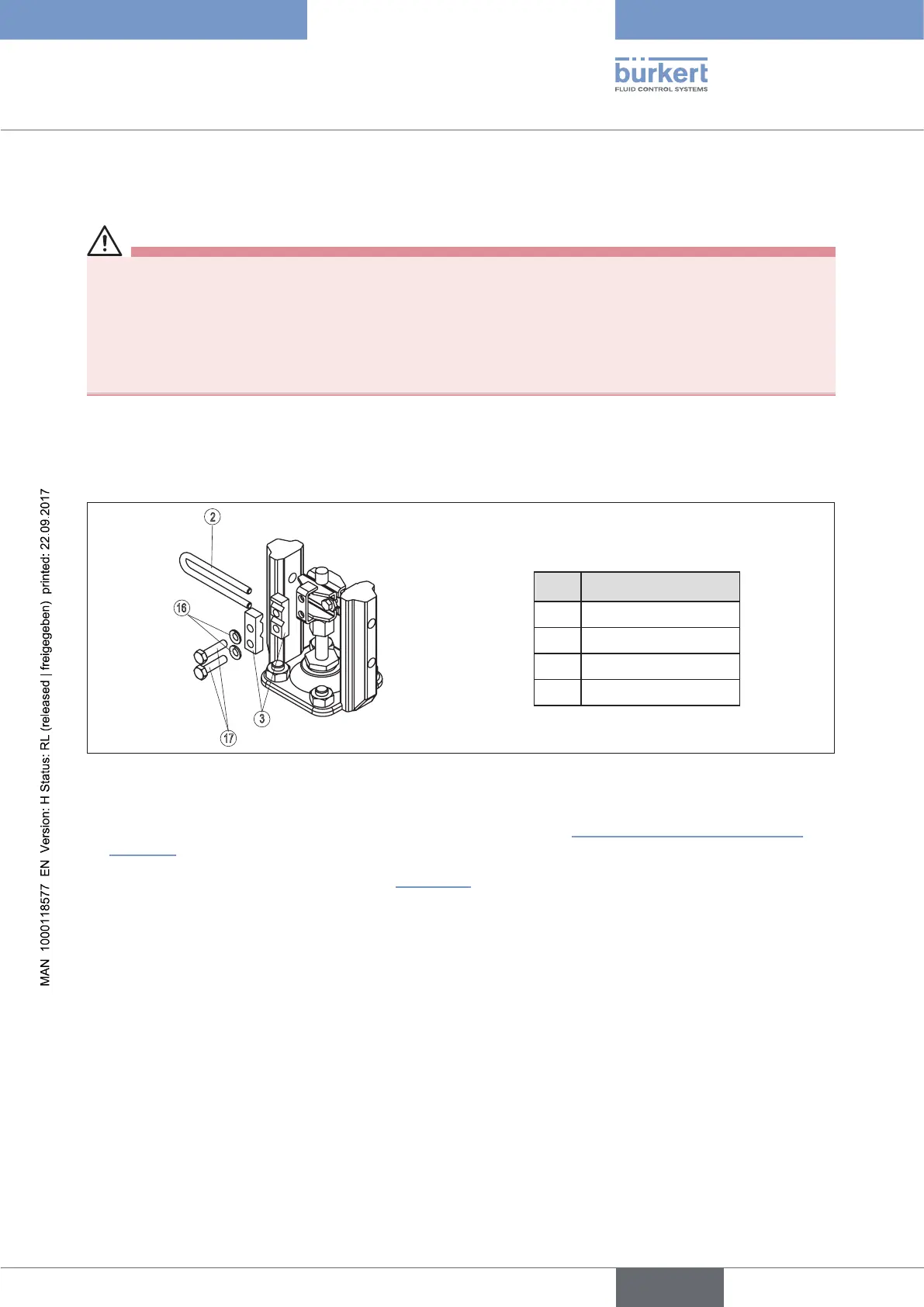

Figure 12: Attaching the hoop
→ Select short or long lever according to the stroke of the actuator. (see “Table 11: Attachment kit for linear
actuators”).
→ Assemble lever (if not pre-assembled) (see “Figure 13”).
