Burkert 8792 - Basic Setting of the Device

73
Start-Up
23. BASIC SETTING OF THE DEVICE
The following settings must be made for the basic setting of Type 8792/8793:
1.
INPUT
Selection of the input signal (see Chapter "23.1").
2.
X.TUNE
Automatic self-parameterization of the positioner (see Chapter "23.2")
Operating structure for the basic setting:
INPUT
X.TUNE
4-20 mA
CARACT
Select
parameters
0-20 mA
P.CONTROL
0-10 V
0-5 V
DIAGNOSE
X.TUNE.CONFIG
M.TUNE.POS
M.TUNE.PWM
M.TUNE.AIR
Press for approx. 3 s
Hold down
as long as
countdown
(5 ...) is
running
X.TUNE
STARTED
TUNE #0
INIT
X.TUNE
READY
Process level (values are displayed)
Configuration
Select the input signal
Activating auxiliary functions *
Manual.TUNE, Manual parameterization
(not required for standard applications)
Automatic self-parameterization
MENU
Setting level
Main menu (MAIN)
EXIT
EXIT
ENTER
EXIT
ENTER
ENTER
SELEC
ENTER
SELEC
RUN
RUN
press
briefly
EXIT
ADD.FUNCTION
EXIT
EXIT
* required only for start-up of the process controller (see Chapter "24. Activation of the process controller")

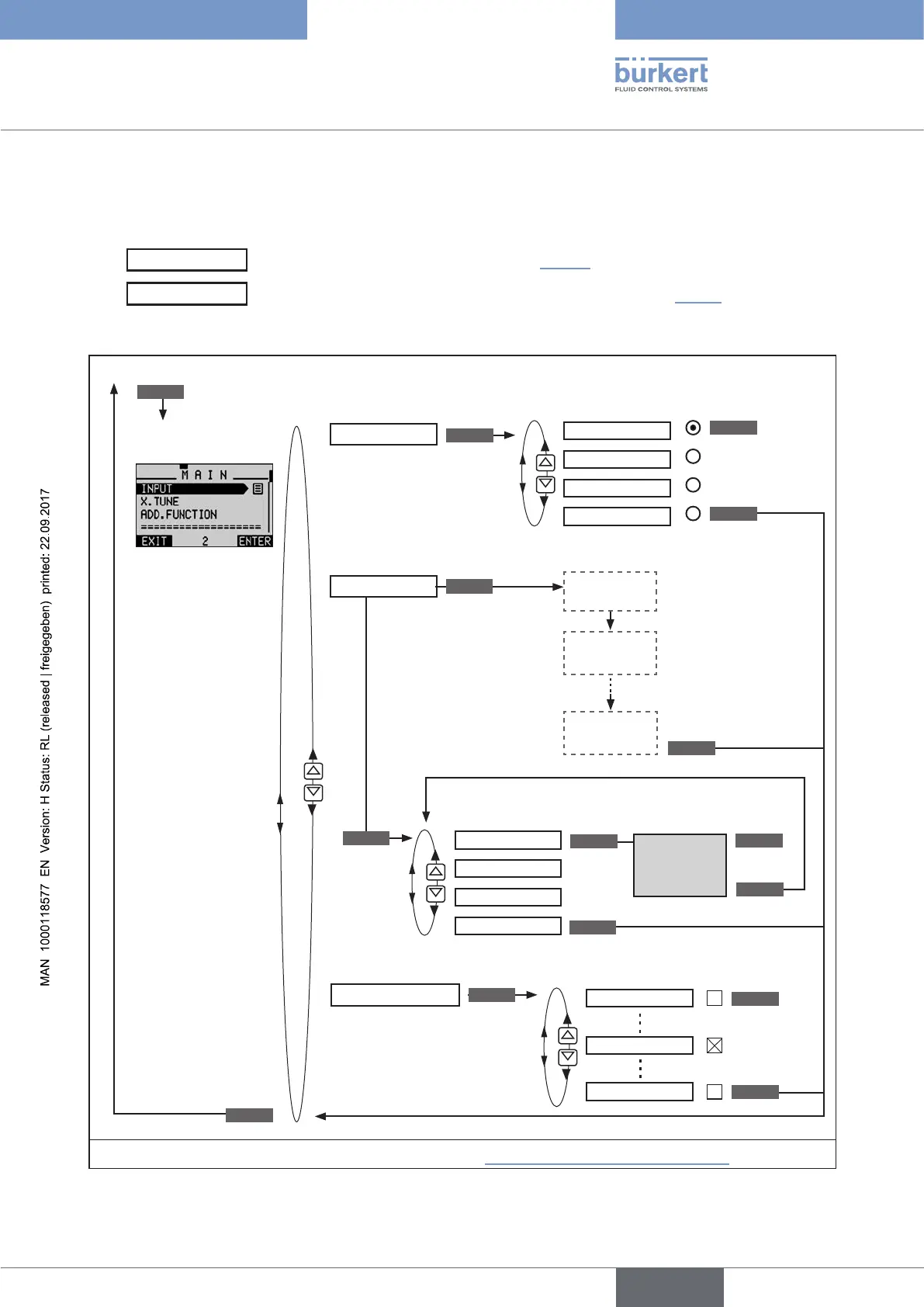

Figure 31: MAIN – main menu, operating structure in as-delivered state
english
Type 8792, 8793
