Installation
14. ELECTRICAL CONNECTION -
CIRCULAR PLUG-IN CONNECTOR VERSION
(MULTI-POLE VERSION)
DANGER!
Risk of injury due to electrical shock.
▶ Before reaching into the device or the equipment, switch off the operating voltage and secure to prevent
reactivation.
▶ Observe applicable accident prevention and safety regulations for electrical equipment.
WARNING!
Risk of injury from improper installation.
▶ Installation may be carried out by authorized technicians only and with the appropriate tools.
Risk of injury from unintentional activation of the system and an uncontrolled restart.
▶ Secure system from unintentional activation.
▶ Following installation, ensure a controlled restart.
Using the 4 – 20 mA set-point value input
If several devices of Type 8792/8793 are connected in series and the power supply to a device in this
series connection fails, the input of the failed device becomes highly resistive.
As a result, the 4 – 20 mA standard signal fails.
In this case please contact Bürkert Service directly.
If PROFIBUS DP or DeviceNet:
The designation of the circular plug-in connectors and sockets and the contacts can be found in the
respective chapters.
14.1. Type 8792 - designation of the circular plug-in
connectors
X4 - M8, 4-pole socket
X1 - M12, 8-pole circular connector
Functional earth FE
Operating voltage
and diverse signals
Binary outputs
optional
42
1
3
12
3
4
5
6
7
8

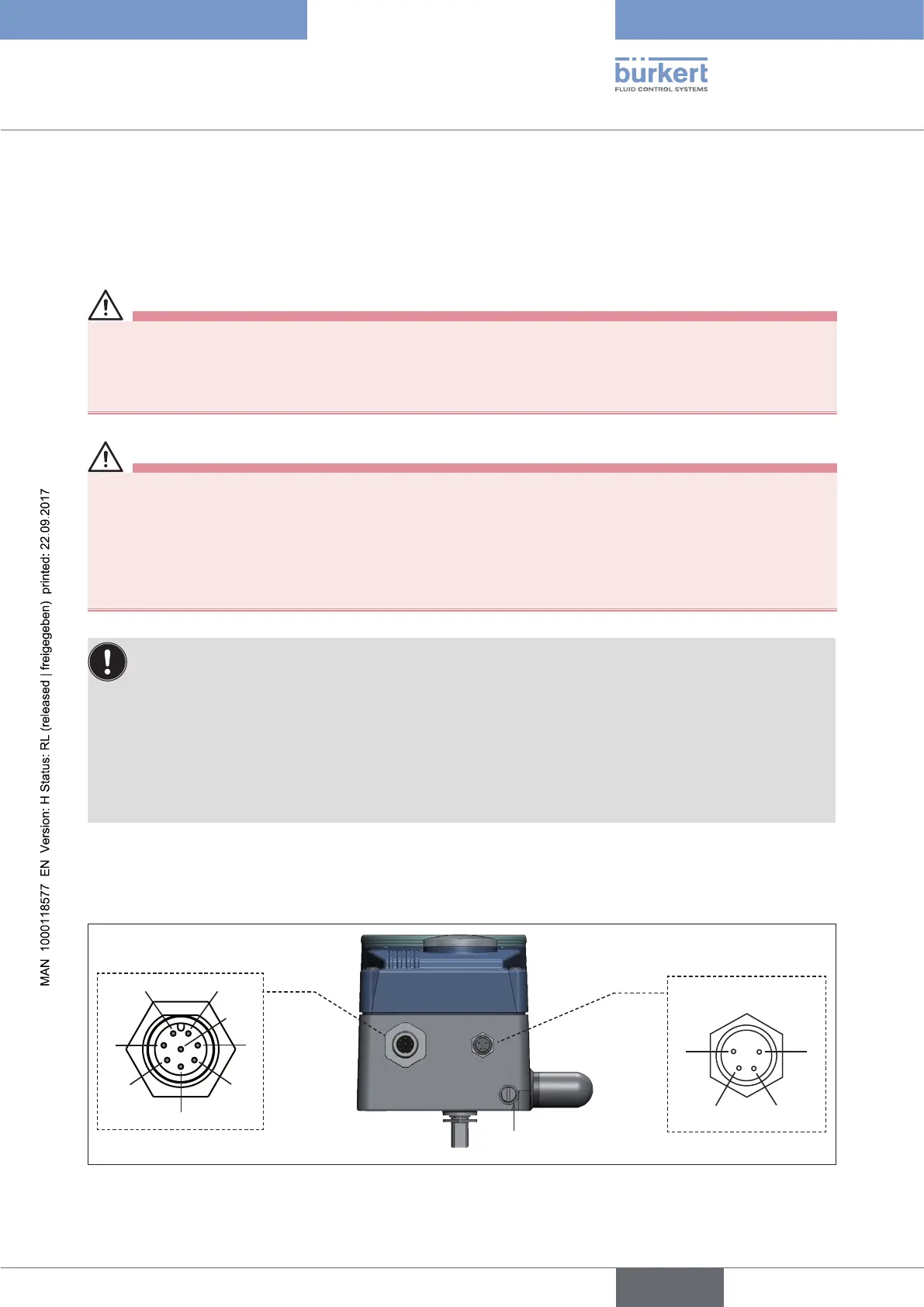

Figure 23: Type 8792; designation of the circular plug-in connectors and contacts
