220
DeviceNet
33.5.4. Online parameterization of the Device
Devices can also be parameterized online. In doing so, you can also select whether only individual parameters
(single) or all parameters (all) of a group are read from the device (upload) or are loaded into the device (download).
It is also possible to transfer individual parameters or all parameters of a group cyclically in monitor mode. This may
be helpful particularly for start-up purposes.
“Figure 130” shows the group of the process values or diagnosis information.
• If Monitor is actuated, these values are updated cyclically.
• Explicit Messages are used for this cyclical access (no I/O connections).

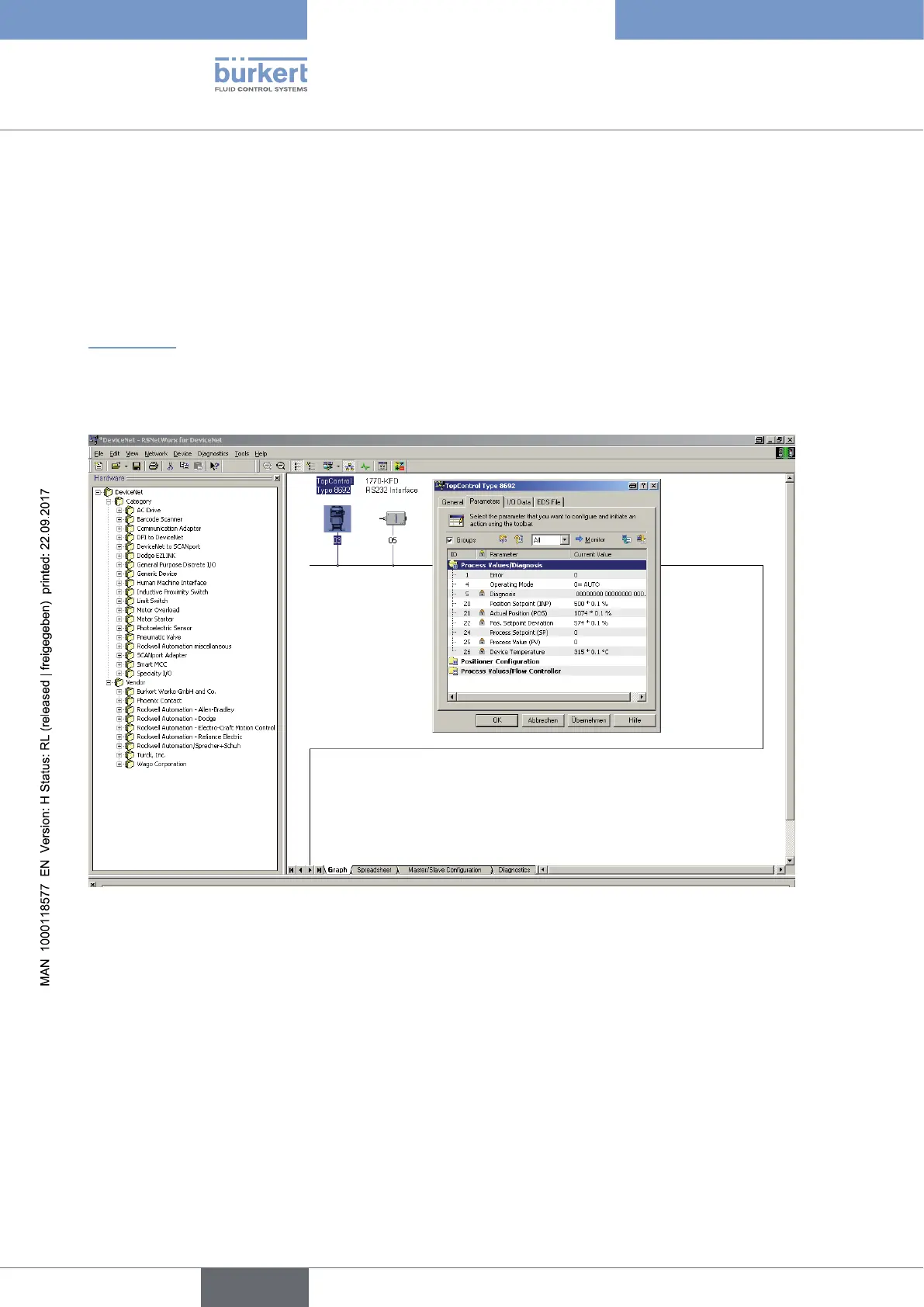

Figure 130: Screenshot - DeviceNet - Online Parameterization, process values/diagnosis information
