Burkert 8792 - Aligning Lever Mechanism

40
Installation
Type 8792, 8793
english
Attaching the Type 8792/8793 with mounting bracket for actuators with columnar yoke:
→ Attach mounting bracket to the columnar yoke with the U-bolt ⑦, washers ⑪, circlips ⑩ and hexagon nuts
21
(see “Figure 17”).
Legend:
No. Name
7 U-bolt
10 Circlip
11 Washer
21 Hexagon nut
21
10
11
7

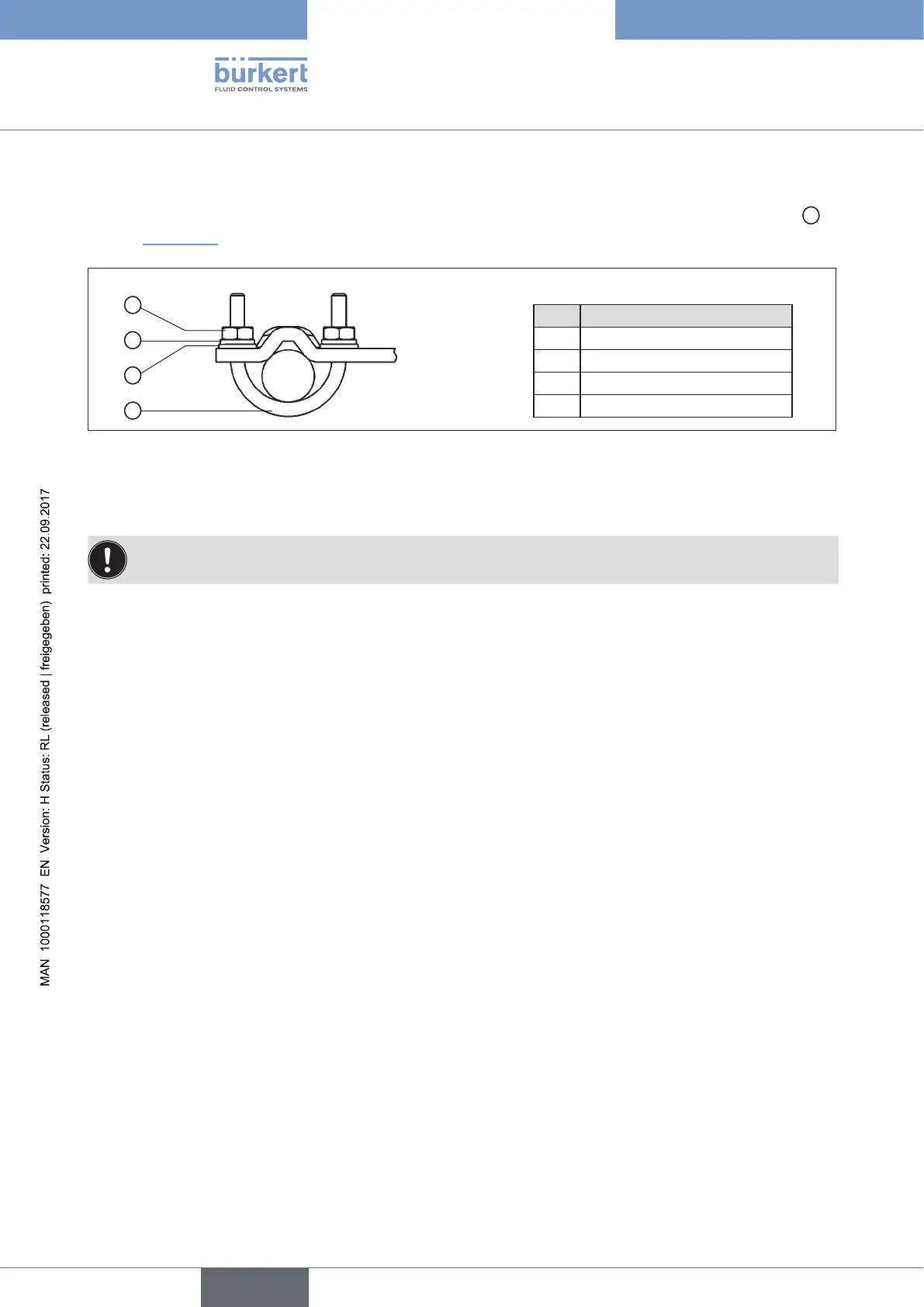

Figure 17: Attach Type 8792/8793 with mounting bracket; for actuators with columnar yoke
12.2.4. Aligning lever mechanism
The lever mechanism cannot be correctly aligned until the device has been connected electrically and
pneumatically.
→ Move the actuator in manual mode to half stroke (according to the scale on the actuator).
→ Adjust the height of the Type 8792/8793 until the lever is horizontal.
→ Fix the Type 8792/8793 in this position on the actuator.
