PROFIBUS DP
30.5.2. Example 2 of a process controller (Type 8793):
Transfer of several process values

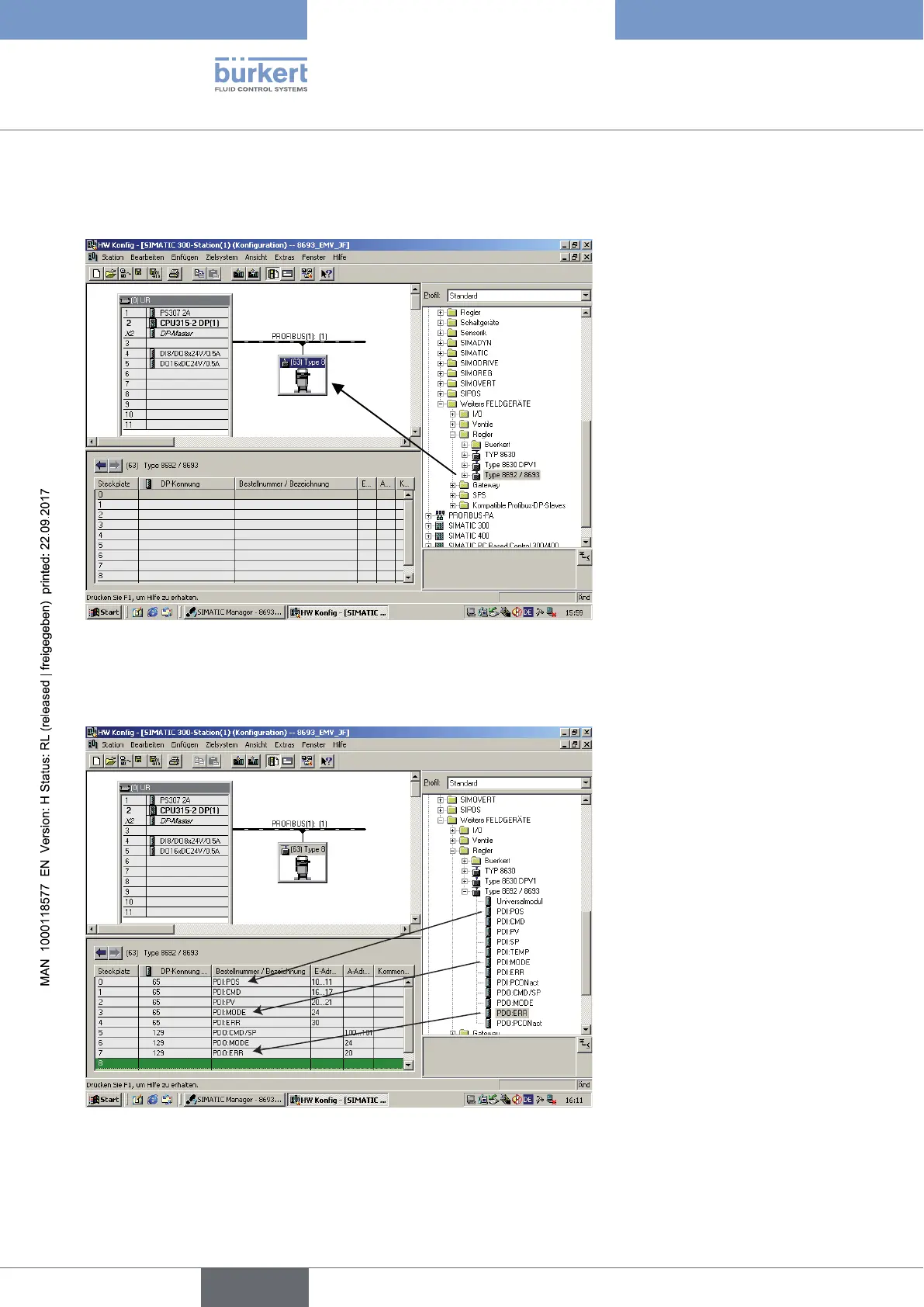

Figure 121: ScreenShot PROFIBUS
→ Pull the slave Type 8792 / 8793 onto the bus line with drag-and-drop.
Figure 122: ScreenShot process controller
→ Pull the modules into the slave Type 8792 / 8793 with drag-and-drop.
