86
Start-Up
25.2.3. SP-INPUT – Type of the set-point value default (intern or
extern)
The SP-INPUT menu specifies how the default of the process set-point value is to be implemented.
• Intern: Input of the set-point value on the process level
• Extern: Default of the set-point value via the standard signal input

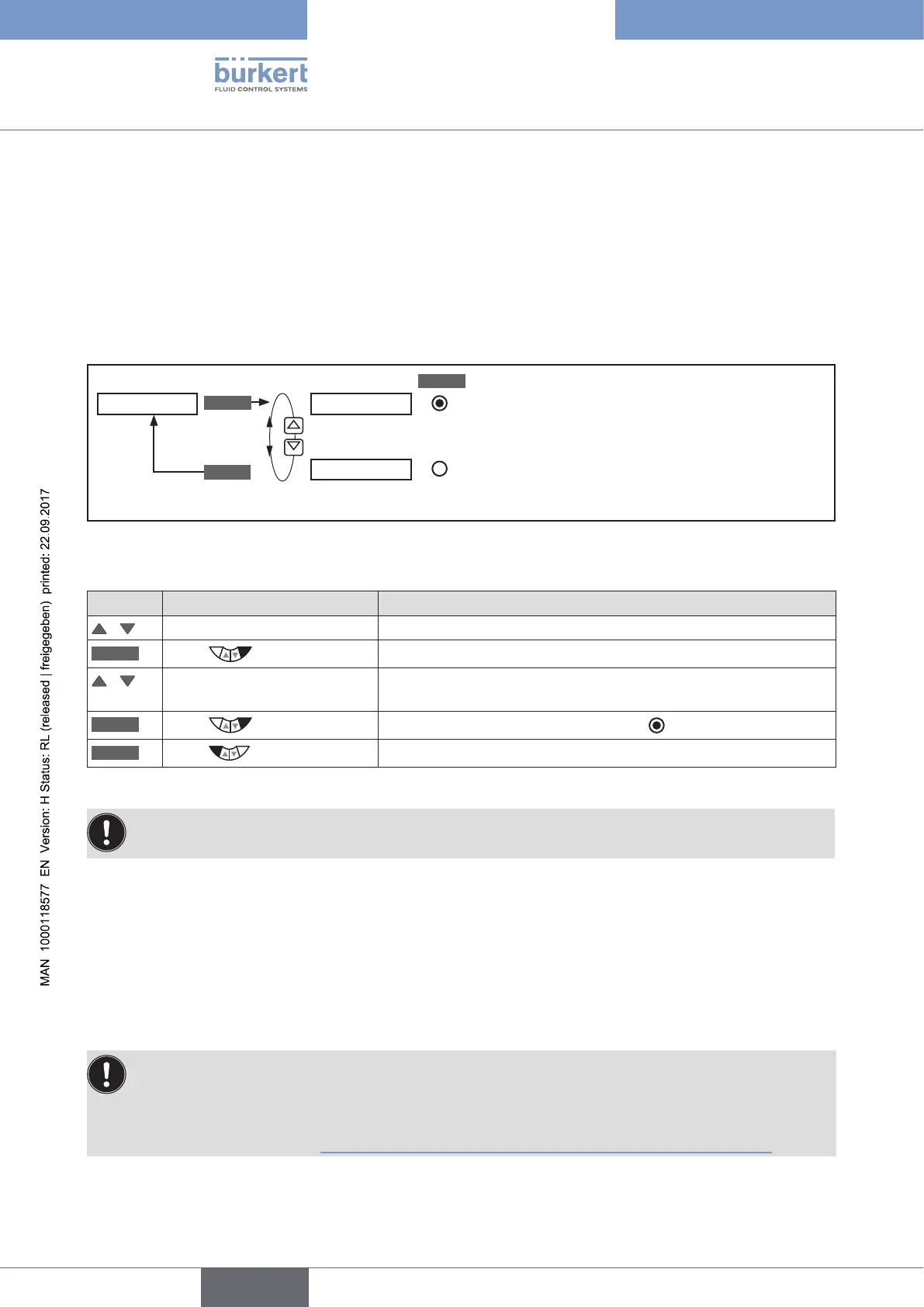

Operating structure:
ENTER
SELEC
EXIT
SP-INPUT intern
extern
Set-point value default, intern
Input the process set-point value on the process
level
Set-point value default, extern
Default of the process set-point value via the
standard signal input
Figure 39: Operating structure PV-INPUT
Specify type of set-point value default in the menu SETUP → SP-INPUT:
Key Action Description
/ Select SP-INPUT
ENTER
Press
The types of set-point value default are displayed.
/ Select the type of set-point
value default
SELEC
Press
The selection is marked by a filled circle .
EXIT
Press
Return to SETUP.
Table 42: SP-INPUT; specifying type of the set-point value default
For internal set-point value default (SP-INPUT → intern), the process set-point value is input directly on
the process level.
25.2.4. SP-SCALE – Scaling of the process set-point value
(for external set-point value default only)
The SP-SCALE menu assigns the values for the lower and upper process set-point value to the particular current
or voltage value of the standard signal.
The menu is available for external set-point value default only (SP-INPUT → extern).
For internal set-point value default (SP-INPUT → internal), there is no scaling of the process set-point
value via SPmin and SPmax.
The set-point value is input directly on the process level. The physical unit and the position of the decimal
point are specified during the scaling of the process actual value (PV-SCALE → PVmin).
For description see Chapter "25.2.2. PV-SCALE – Scaling of the process actual value", page 82
