PROFIBUS DP
BUS.COMM
BUS PDI
BUS PDO
BUS FAIL
Position
P.CONTROL active
Errors
Error reset
P.CONTROL active
P.CONTROL active
CMD
Process value
1)
Setpoint
Temperature
CMD
2)
/ Setpoint
1)
Operation mode
Operation mode
SafePos off
SafePos on
EXIT
EXIT
EXIT
SELEC
SELEC
SELEC
ENTER
ENTER
ENTER
ENTER
EXIT
*
OK
Enter
value
Input device address.
Adjustment range: 0 ... 126
INPUT
Address 0
Activating /
deactivating
approach of the
safety position
Process values
which are trans-
ferred from Type
8792/8793 to
control.
Process values
which are trans-
ferred from control
to Type 8792/8793.
Only for type
8793:
Only for type
8793:
Only for type
8793:
Setting of BUS PDI and BUS PDO is made via GSD file
* If the submenu is left by pressing the
ESC
key, the value remains unchanged.
1) only when process controller activated
2) only for positioner mode

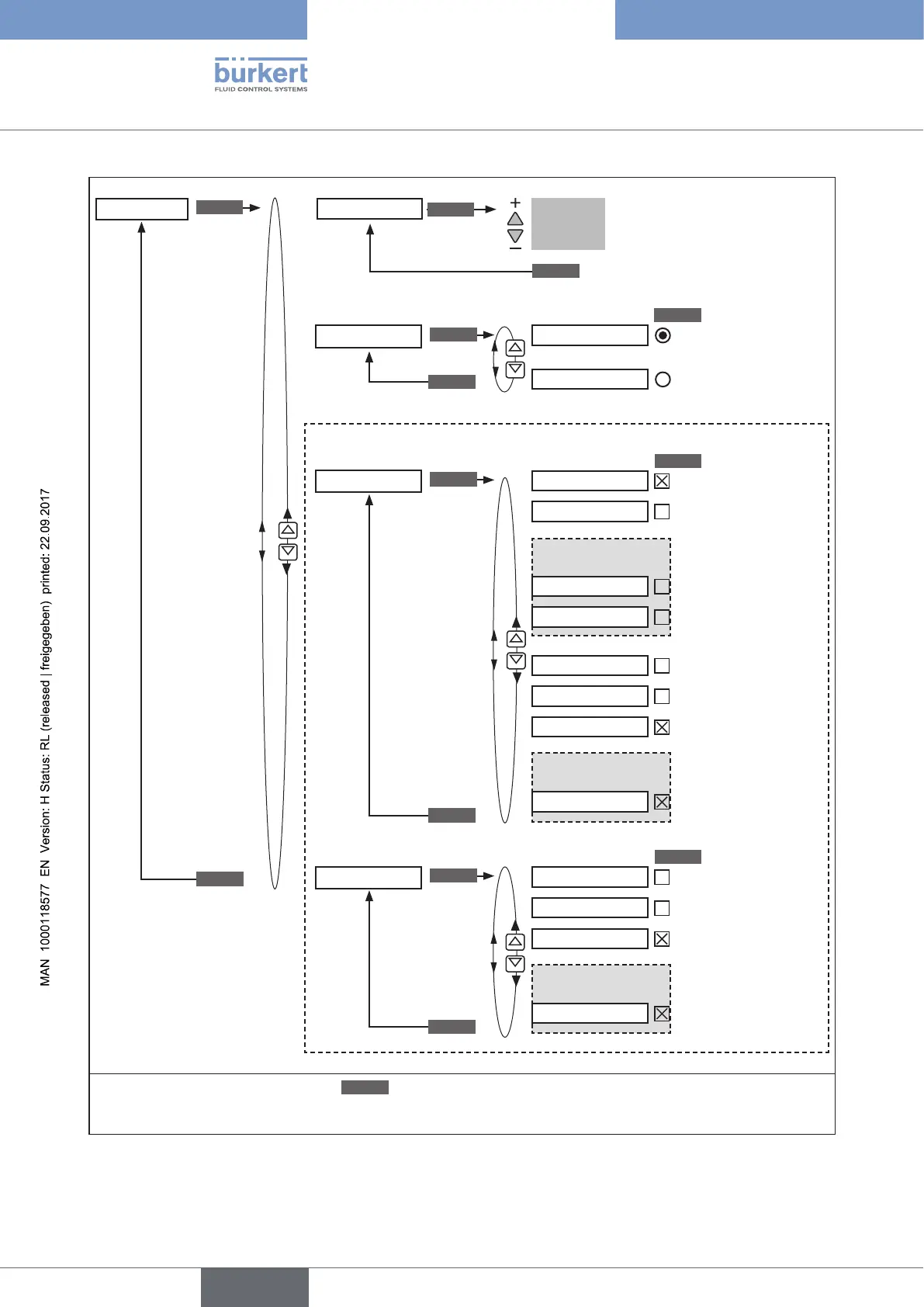

Figure 118: Operating structure - BUS.COMM; PROFIBUS DP
