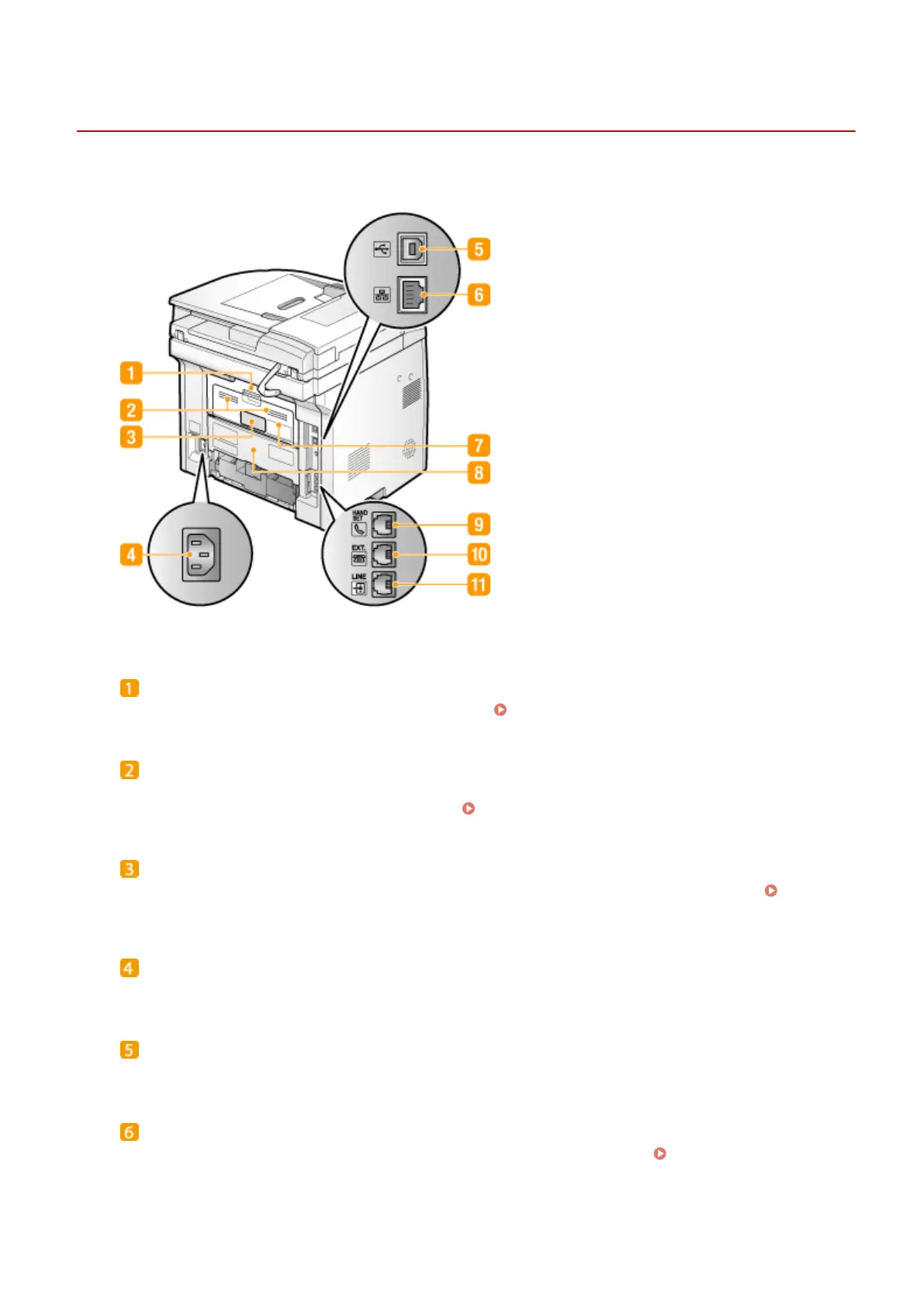

Back Side
0UWX-009
Upper rear cover
Open the upper rear cover when clearing paper jams. Clearing Jams(P. 723)
Ventilation slots
Air from inside the machine is vented out to cool down the inside of the machine. Note that placing objects in
front of the ventilation slots prevents ventilation. Installation(P. 3)
Rating label
The label shows the serial number, which is needed when making inquiries about the machine.
When a
Problem Cannot Be Solved(P. 780)
Power socket
Connect the power cord.
USB port (for computer connection)
Connect a USB cable when connecting the machine and a computer.
LAN port
Connect a LAN cable when connecting the machine to a wired LAN router, etc.
Connecting to a Wired
LAN(P. 418)
