CAPINTEC, INC. CAPRAC
®
-t
April 2021 CLEANING AND MAINTENANCE 13-11

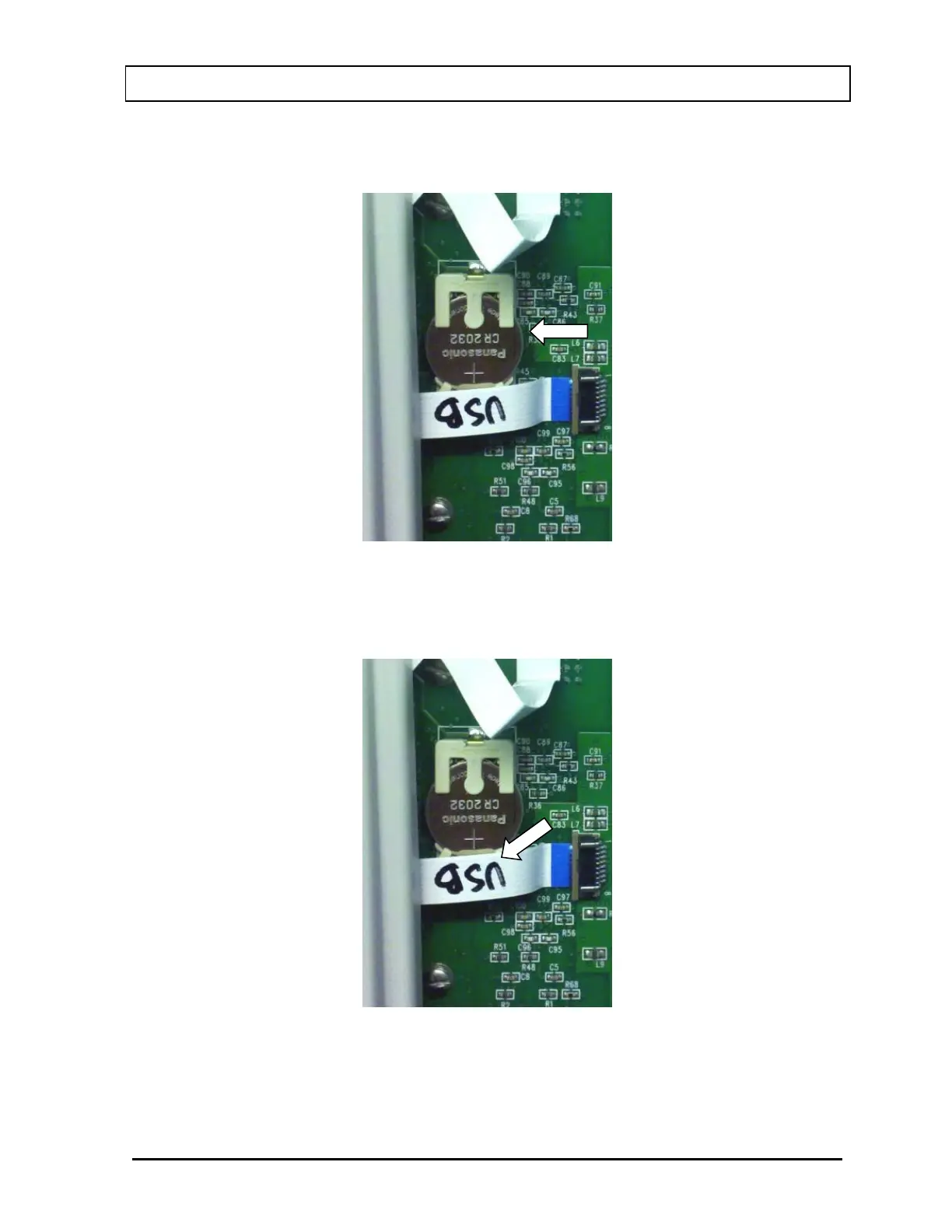

b. Slide the battery into the battery holder under the three prongs as shown in
Figure 13-9.
Figure 13-9
c. Press down on the other side of the battery as shown in Figure 13-10 until a
click is heard.
Figure 13-10
d. Verify that the battery is secure in the connector and not loose.
e. Verify that none of the Flat Flex cables are loosened from their connectors.
