13.1.4 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5

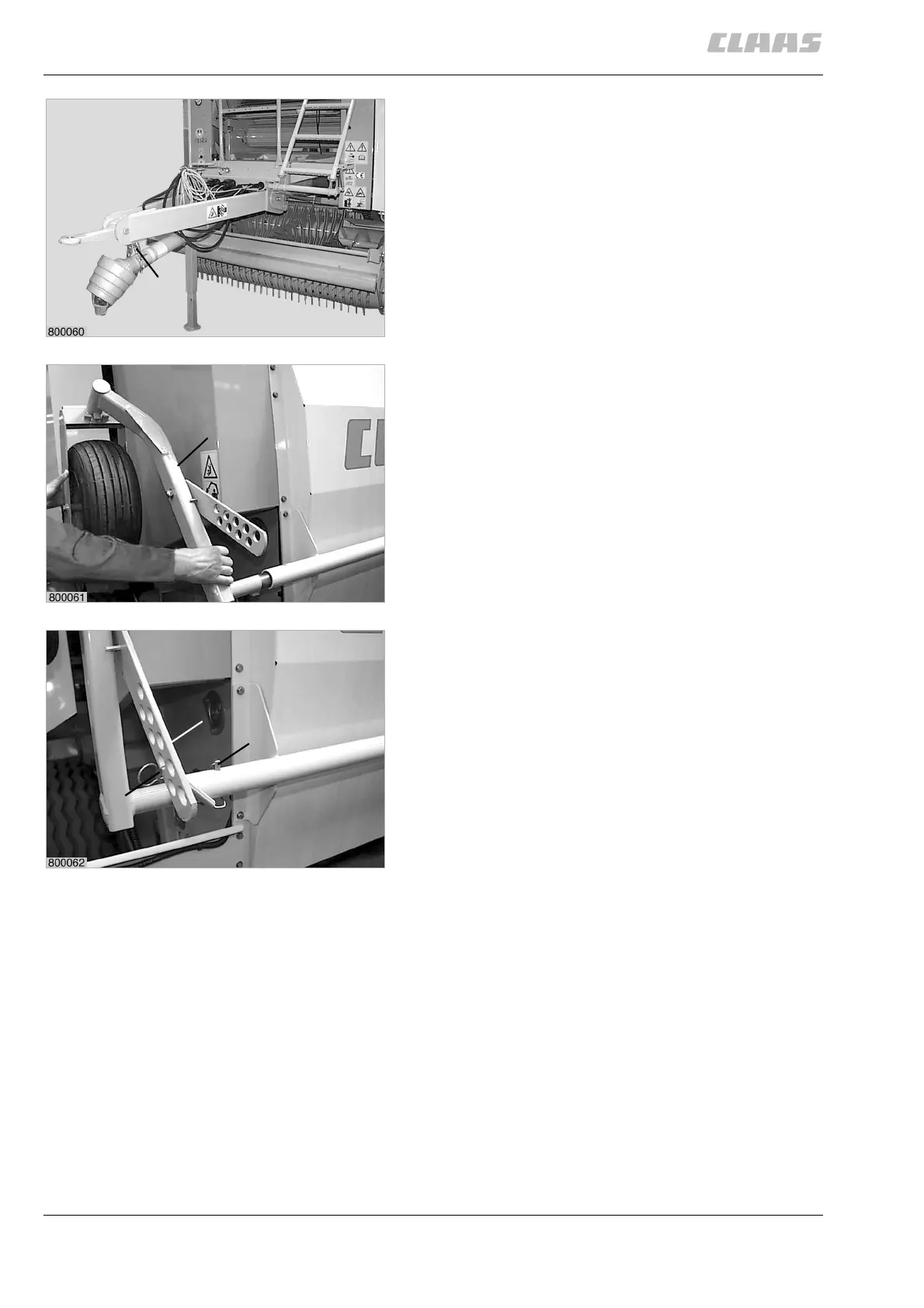

After using the baler
For tow jaw hitch fittings, suspend the propeller shaft
using the chain (K).
Disconnect round baler from the tractor, for this
purpose pull coupling bolt out.
(Fig. 10)
Castor gauge wheels (ROLLANT 250/245/255)
If necessary, dismantle the castor gauge wheels from
the pickup (only for pick-up 2.10 m/82.7 inch).
Insert the support arm (A) into the pipe on the tailgate.
(Fig. 11)
Insert and secure the bolt (C).
Secure the lug (B) with the tension spring (D).
(Fig. 12)
K
10
A
11
C
B
D
12
