Claas ROLLANT 240 - Adjusting the Roller Crop Guard

8.1.4 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5
Setting up the baler
The height of the roller crop guard can be adjusted
using the plate (B).
Note!
The roller crop guard must be set to the same
level on both sides.
The plate (B) can be set to three different positions:
• upper holes = high swaths
• central holes = medium swath
• lower holes = lower swath
Plate (L) can be set to two different positions,
depending on the bale material:
• lower holes = hay and silage (see figure 9)
• upper holes = straw

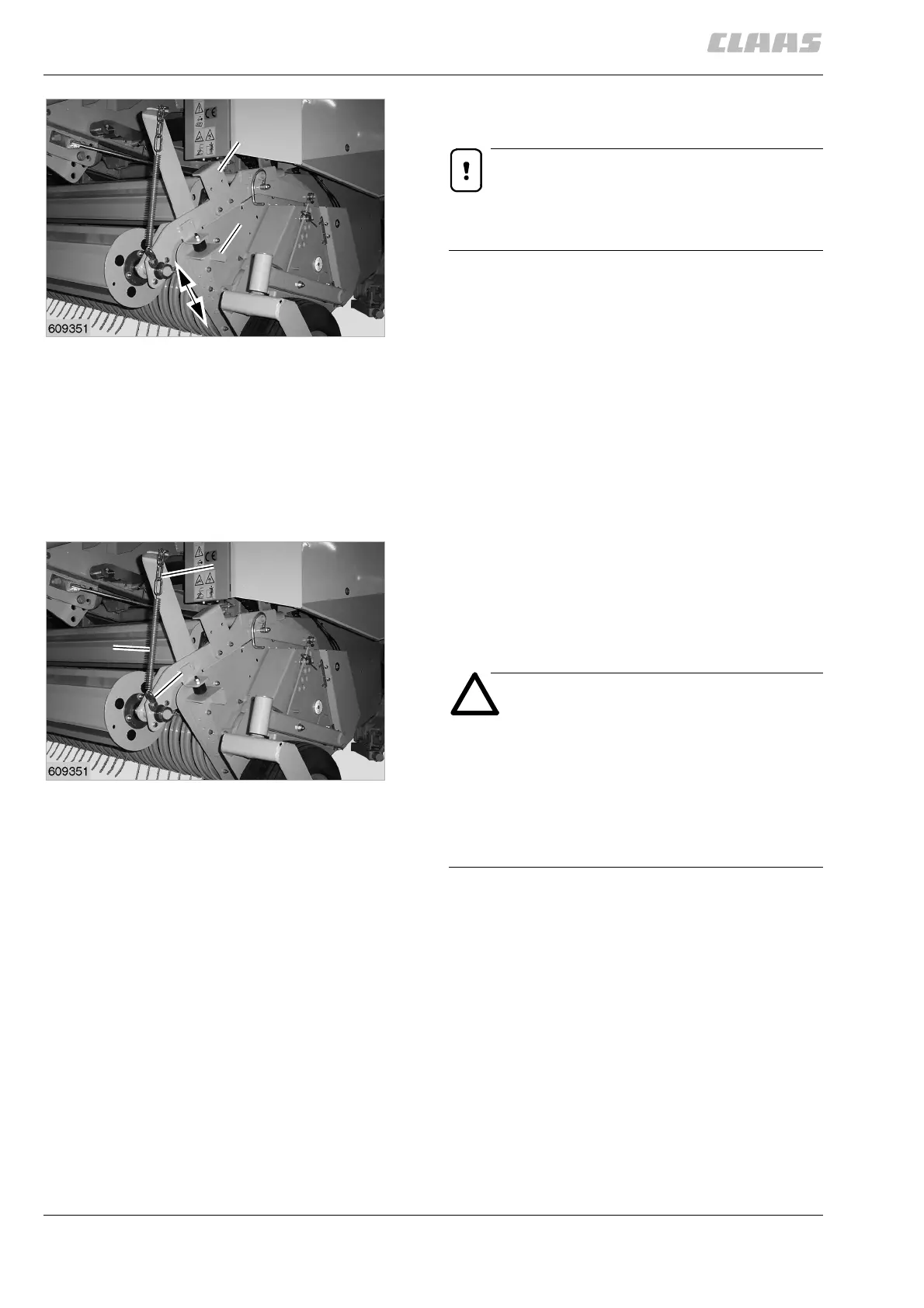

(Fig. 9)
Adjusting the roller crop guard
– Set the pick-up to the lower position.
– Raise up the roller crop guard (A).
– Pull the spring (C) off of the hook (E) and at the
same time tighten the chain (D) in the hook (E).
Attention!
There is a risk of squashing fingers and
hands when pulling the spring (C) off the
hook (E).
☞ Wear gloves.
☞ Keep hands and fingers clear of any
crushing points.
(Fig. 10)
B
L
9
E
D
C
10
