Claas ROLLANT 240 - Adjustment of Tension Springs; Adjusting the Tension Spring for the Net Roll Tightening Clamp (Adjustment Done Without Net Roll); Tension Spring; (Adjustment Done Without Net Roll)

14.3.6 BA ROLLANT 240 - 250 - 254 - 255 - 000 299 119 5
Maintenance
Adjustment of tension springs

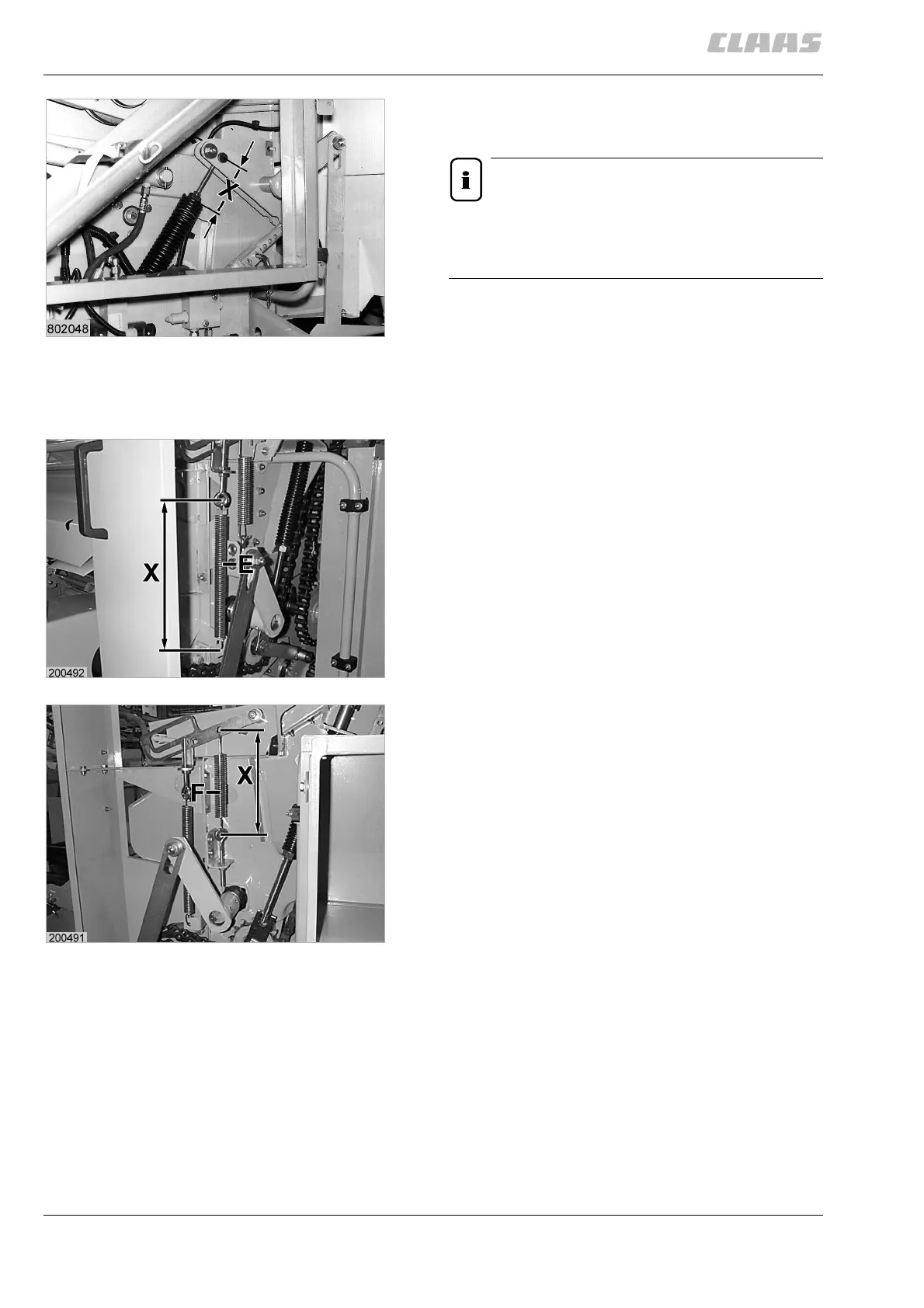

Adjusting the counterbalance spring for the pick-up:
Note!
In order to tighten the spring, it is necessary to
raise the pick-up to its full height using the
tractor hydraulics.
Tighten the spring until the length (X) between the
center of the pin and the top edge of the spring
insert is 165 mm (6.50 inch) for 2.10 m (82.68 inch)
and 1.85 m (72.83 inch) pick-ups.
(Fig. 16)
Adjusting the tension spring for the net roll
tightening clamp
(Adjustment done without net roll)
Tighten spring (E) until the length (X) is 345 mm
(13.58 inch).
(Fig. 17)
Tension spring (F)
(Adjustment done without net roll)
Tighten spring (F) until the length (X) is 250 mm
(9.84 inch).
(Fig. 18)
16
17
18
