Claas ROLLANT 240 - DRIVE SYSTEM

000 299 119 5 - BA ROLLANT 240 - 250 - 254 - 255 14.3.1
Maintenance

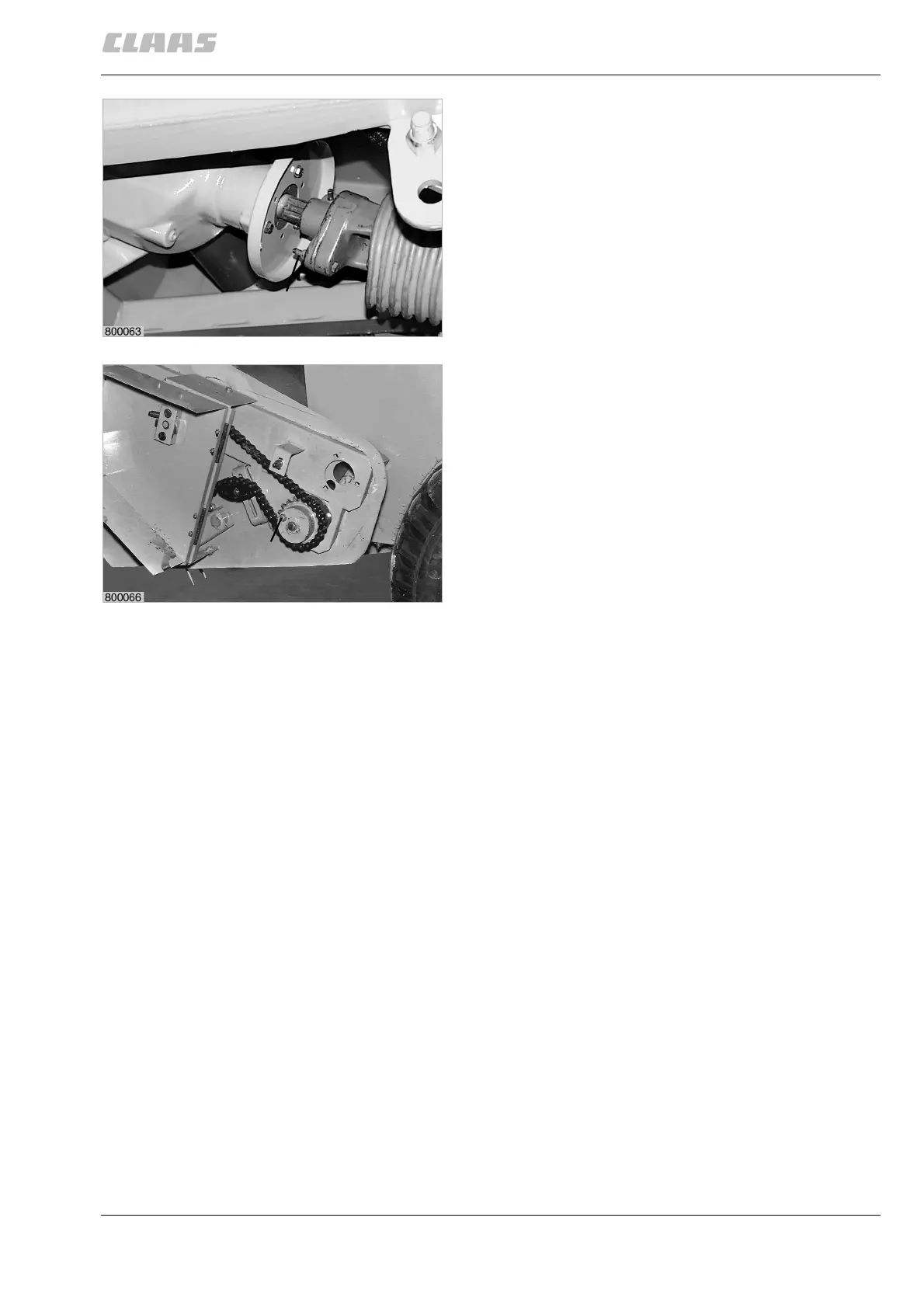

DRIVE SYSTEM
Shearing bolt on main drive (optional for ROLLANT
240/250/254)
The main drive is fitted with a shear bolt (T) or a
cam-type cut-out clutch.
If the shear bolt breaks, use a bolt of equal quality (see
“Specifications”).
(Fig. 1)
Shear bolt pick-up drive
The pick-up and the cross augers are protected by a
shear bolt (U). If the shear bolt breaks, use a bolt of
equal quality (see “Specifications”).
(Fig. 2)
T
1
U
2
Maintenance
